Metaheuristics for reliable server assignment problems

Nomenclature

α         critical service level i.e., predetermined fraction of the operational nodes

K         number of simulation replications using Crude Monte Carlo sampling to calculate CSR

n          number of nodes

c_i         cost of deploying and maintaining a server at node i

re_i , rn_i , rs_i   reliability of edge, node, and server, respectively

s_i             binary server assignment decision variable indicating whether a server is assigned to node i ( s_i = 1 ) or not ( s_i = 0 )

C          budget limit

iter          number of iterations of tabu search

Stopiter   the predetermined maximum number of iterations

x₀          initial feasible solution

x_c          current solution

x_bf          best feasible solution found so far

x_binf        best infesible solution found so far

Acronums

RSA   reliable server assignment

TS      tabu search

PSO    particle swarm optimization

CSR    critical service rate defined in Konak et al. [1]

ACO    ant colony optimization

CSA    clonal selection algorithm

1. Introduction

RSA problems in networks are defined as determining a deployment of servers to maximize a measure of service availability as follows.

where s_i is the binary server assignment decision variable indicating whether a server is assigned to node i (s_i=1) or not (s_i=0). The reliability measure of CSR (critical service rate) is originally proposed by Konak et. al. [1]. They defined the CSR as the probability that more than a predetermined fraction (α) of the operational nodes have access to at least one server in case of a component failure.

The CSR is as follows:

where X denotes a state vector of the network such that at least one node is operational, δ_i (X|S) = 1 if there exists at least one path between node i and a server node, and δ_i (X|S) = 0 otherwise, ν_i(X) = 1 if node i is operational in state X, and ν_i(X) = 0 otherwise. The CSR measure defined in (1) considers reachability of servers only by operational nodes because it is assumed that , when a node fails, the users of that node cannot access network services. In practice, a network continues to operate even though several of its nodes fail or become disconnected, and CSR takes into account this operational aspect of networks. The RSA problem defined in this paper is closely related with the p-median problem. The deterministic p-median problem was originally proposed by Hakimi [2]. Several authors([3]-[8]) dealt with the reliable p-median problem, which is concerned with the service unavailability due to the infrastructure disruptions or component failures. The network reliability optimization problems are known as NP-hard [9].

Melachrinoud is et al. [5] suggested a similar problem on tree networks with unreliable edges. Note that, unlike general networks as considered in this paper, on a tree network, it is computationally feasible to compute this objective function.

In the meanwhile, Eiselt et al. [10] proposed the reliable p-median problem on general networks. However, they dealt with a case of when only a single edge failure is considered at a time and extended this approach to networks with unreliable nodes. Berman et al. [11] suggested a reliable p-median on distribution networks to minimize the expected amount of satisfied demand. Nakaniwa et al. [12] considered the optimal mirror Web server assignment problem considering reliability. In this problem, edges are perfectly reliable and nodes are subject to failure. The RSA problem with the new reliability measure of CSR was solution methods by three nature-inspired metaheuristics, that is, ACO, PSO, and CSA.

However, the server cost c_i was fixed to the same value of c for all servers in Konak et al. [1]. That is, they dealt with only the case of homogeneous severs. In this paper, we generally tackle the above RSA problem with the different value of c_i’s for each node of server, i.e., heterogeneous servers. We also propose two metaheuristic algorithm (TS and PSO) for solving the RSA with heterogeneous servers. From computational results, we noticed that TS outstandingly outperforms PSO for all test problems.

The rest of this paper is organized as follows. Two metaheuristic algorithms for solving the RSA problem is developed in Section 2. In Section 3, we illustrate three examples of the RSA problem. In Section 4, we evaluate the performance of two proposed algorithm through the computational efforts. Finally, conclusions and future research are discussed in Section 5.

2. Solution Methods

Konak et al. [1] developed three metaheuristic algorithms for the RSA problem, that is, ACO, PSO, and CSA. In this paper, we propose an efficient TS for the RSA problem. Also we compare our TS with PSO which is the best for this problem in the literature.

3. Examples

3.1 Example 1

For example 1, consider the following network in Figure 1.

Figure 1:

Network structure

The input data are given by

where re_i =0.8 and rn_i =1.0.

Our problem is as follows:

The reliability re_i of each edge is 0.8. In this example, we noticed that the global optimal solution is {1, 3, 5} in Figure 2. The value of CSR is 0.95194. The value of K, α, and Stopiter are 8000, 1.0, and 5, respectively. Our TS is executed on compatible with a Pentium IV 3.0 GHz. The computing time is 0.987 seconds.

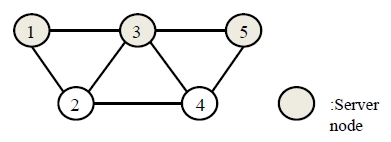

Figure 2:

The optimal solution of TS

3.2 Example 2

The input data are given by

The example 2 is same to Konak et al. [1] (Figure 3).

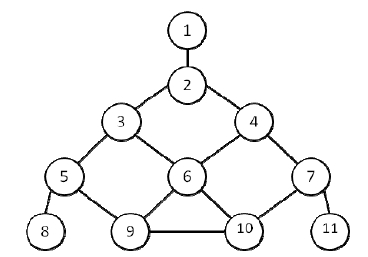

Figure 3:

The network structure of Konak et al. [1]

Our problem is as follows:

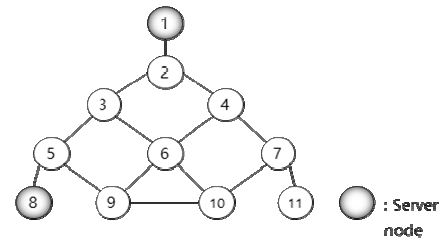

Figure 4:

The optimal solution of TS

The optimal server node is {1, 8} shown in Figure 4, and the value of CSR is 0.67475. The value of K, α, and Stopiter are 8000, 1.0, and 5, respectively. The computing time is 3.735 seconds.

To evaluate the performance of our TS for the general RSA problem with different costs of deploying each server, we employed the same cost of each server for Konak et al. [1]. For example, the input data for the case of α=0.9 are given by

The global optimal solution of Konak et al. [1] is either {5, 11} or {7, 8} with the exact CSR=0.975395. We noticed that our TS finds one of the global optimum successfully.

3.3 Example 3

The example 3 was randomly generated as Figure 5. The size of node(n) is 20, and the input data are given in Table 1.

The problem is as follows :

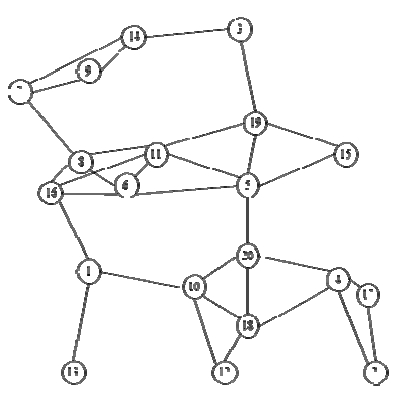

Figure 5:

Randomly generated network (n=20)

Table 1:

The input data of example 3

The optimal server node is {1, 5, 9, 17} shown in Figure 6, and the value of CSR, the measure of reliability, is 0.95104. The value of K, α, and Stopiter are 8000, 1.0, and 5, respectively. The computing time is 313.75 seconds.

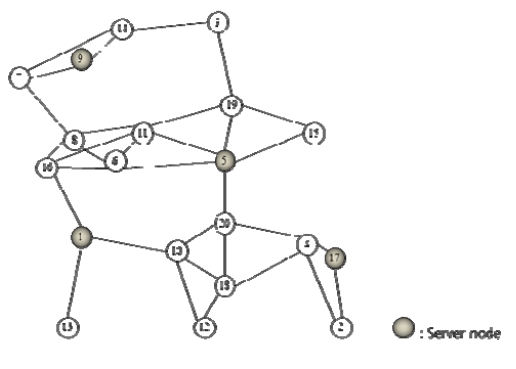

Figure 6:

The optimal solution of TS

4. Computational Results

To evaluate the performance of TS and PSO, we conducted the computational experiments for three examples of the Section 3. Each example was composed of 80 test problems, totally 240 test problems. Two algorithms (PSO and TS) were coded in C/C++ programming language, and experiments were performed on a Pentium IV 3.0 GHz PC. Performances of PSO and TS are assessed in terms of the following average relative error (A), maximum relative error (M), optimality rate (O) and average execution time (T).

In our experiments, the stopping criterion of TS was defined as 5 iterations without finding an improvement in the best feasible solution, and PSO generated 300 populations for the initial solution. Each method was applied 10 times with different starting initial solution for each test problem.

The computational results for example 1, example 2, and example 3 are summarized in Table 2, Table 3, and Table 4, respectively. From the computational results for example 1, PSO was same to TS in terms of the quality of the solution, even though the computing time of PSO was almost 6 times as much as that of TS. However, for example 2 and 3, the performance of PSO was very poor than that of TS in terms of the quality of the solution and computing time. From the computational results, we noticed that our TS outstandingly outperforms PSO for all test problems.

Table 2:

Computational results for example 1

Table 3:

Computational results for example 2

Table 4:

Computational results for example 3

5. Conclusions

Konak et al. [1] originally proposed the RSA problem using the new reliability measure of CSR. They also suggested the solution methods by three nature-inspired metaheuristics, that is, ACO, PSO, and CSA. However, the server cost c_i was fixed to c for all servers in Konak et al. [1]. That is, they considered only the case of homogeneous severs of the RSA problem. In this paper, we generally tackled the above RSA problem with different c_i’s for each node of server, i.e., heterogeneous servers, and proposed an efficient TS for the RSA problem. Also we compared our TS with PSO, which is the best for this problem in the literature, in terms of the quality of the solution and the computing time. From the computational results, we noticed that our TS outstandingly out performs PSO for all test problems.

In terms of solution quality and the computing time, our TS is recommended as a promising metaheuristic for a kind of reliability optimization problems including the RSA problem.

To achieve a better solution quality, the development of more powerful metaheuristics and hybrid metaheuristics for the RSA problem would be performed in the future research.

Acknowledgments

This paper is extended and updated from the short version that appeared in the Proceedings of the International symposium on Marine Engineering and Technology (ISMT 2014), held at Paradise Hotel, Busan, Korea on September 17-19, 2014.
