Design of a hybrid power management system and cold start simulation in a fuel cell ship with PLECS

1. Introduction

Fuel cells (FCs) are emerging as an attractive power source because they are clean, highly efficient, and reliable [1]. However, the FC has several problems such as energy storage, response capability, cold starting, and voltage fluctuation at peak load. Therefore, hybrid power systems that have an auxiliary energy source, such as battery or an ultra- capacitor, for improving the dynamic response characteristics are used [2][3].

A hybrid power management system is composed of several parts: the generation, the auxiliary source, the converters, the filter, and the propulsion component. Figure 1 shows a diagram of the hybrid power management system for an FC ship.

Figure 1:

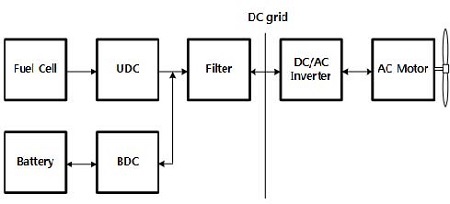

Diagram of hybrid power management system for a fuel cell ship

The proposed hybrid power management system has two power sources, namely, an FC as the generation source and a battery as the auxiliary source. The FC is connected to the unidirectional DC/DC converter (UDC) and the battery is connected to the bidirectional DC/DC converter (BDC). UDC and BDC are important for managing power in the system. By adjusting the duty ratio of the PWM signal, the UDC manages the FC power and the BDC manages the battery power in the system.

The ship load can change based on sea states. When the pulse load is generated, the FC supplies a much higher peak current than for a constant load. Once the peak load is generated, the FC is damaged by the sudden current fluctuation. This rapid change of the FC power can cause problems and reduce its lifetime. Therefore battery power is used to respond to sudden power surges.

If the system correctly changes the power output of the FC after using battery power, then the battery is charged using FC power.

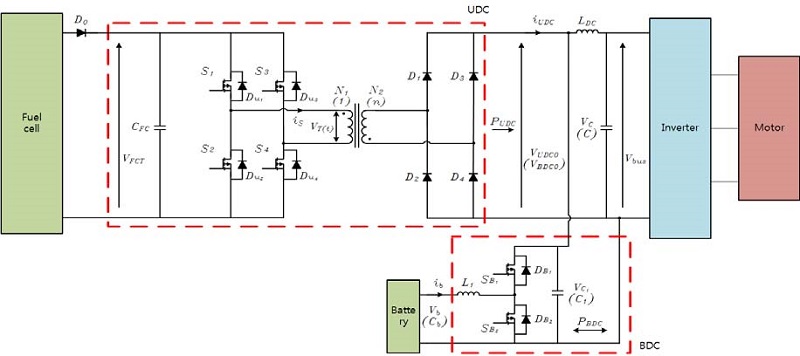

Figure 2 shows the circuit of a hybrid power management system for an FC ship. In peak power applications, the battery is used in modules in which many components are connected in series and parallel to obtain acceptable voltage and power levels. The battery terminal voltage Vb determines the number of battery modules, which must be connected in series to form a module.

Figure 2:

Circuit of hybrid power management system for a fuel cell ship

2. Modeling of electric sources

3. Modeling of electric converters

3.1 Unidirectional DC/DC converter

The UDC is used to generate the constant DC grid voltage. Because the fuel cell output voltage can be changed to the desired output voltage, the fuel cell output voltage should be made constant. The UDC is designed using phase-shift full-bridge (PSFB) DC-DC converters, which are widely used in FC power systems. The UDC can operate in a constant voltage condition or in a limited current condition. The operation of the proposed UDC is simplified, i.e., all devices and component are assumed to be ideal. Figure 3 shows the operation mode diagrams of the UDC.

Figure 3:

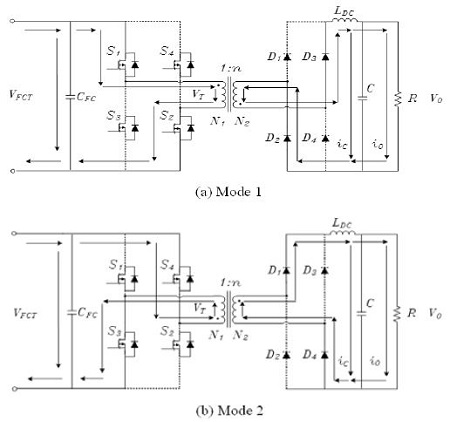

Operation mode of full-bridge converter

Switches 1 and 2 turn on in mode 1. Switches 3 and 4 turns on in mode 2. The load current is the output in a specific direction, regardless of the mode. The waveforms of each mode are shown in Figure 4.

Figure 4:

Waveforms for each mode of full-bridge converter

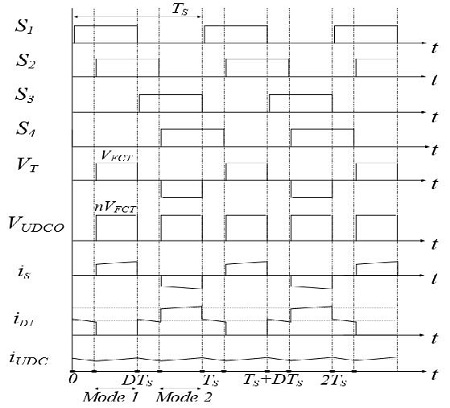

Mode 1 is different from mode 2 in terms of its dynamic equations. The sign of the induced voltage in the transformerat primary side is different in mode 1 and mode 2. The fuel cell voltage input V_FCT and UDC output voltage V_UDCO are represented by a current applied to the converter internal coil, which is given by Equation (3) below [3].

$\[ \begin{array}{c}{V}_{\mathit{FCT}}=L_{\mathit{DC}}\frac{{\mathit{di}}_L}{\mathit{dt}}+V_T\\ V_{\mathit{UDCO}}=n\left(V_{\mathit{FCT}}-L_{\mathit{DC}}\frac{{\mathit{di}}_L}{\mathit{dt}}\right)\end{array} \]$

(3)

where V_T is the primary coil voltage and n is the turn ratio.

The filter part in the converter consists of an inductor L_DC and a capacitor C. The inductor is used to filter the converter output current ripples. The output capacitor is used to filter the converter output voltage ripple; it can be obtained as follows:

$\[ \begin{array}{c}{L}_{\mathit{DC}}\ge \frac{1}{f_{\mathit{UDC}}}D\left(1-D\right)V_i/2I_{\mathit{AL}}\\ C\ge \frac{1}{f_{\mathit{UDC}}^2}\left(1-D\right)V_{\mathit{bus}}/8L_{\mathit{DC}}∆V_{\mathit{bus}}\end{array} \]$

(4)

where I_AL is the average inductor current at the boundary between continuous and discontinuous condition, f_UDC is the converter switching frequency in the UDC, D is the duty cycle, and V_bus is the voltage of the grid. To ensure that the converter is always working in continuous conduction mode, a minimum output current is required; it is equal to the average maximum boundary current, which occurs at D = 0.5. The voltage ripple should be less than 1% of the output voltage.

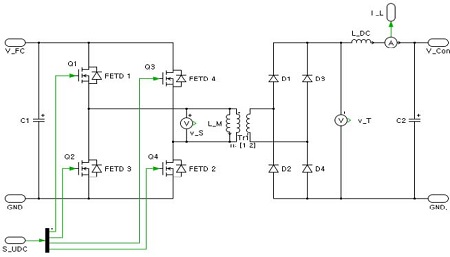

The UDC PLECS model is shown in Figure 5. The UDC controller receives feedback regarding the primary coil voltage V_T and the inductor current i_L to maintain the output voltage at the target voltage. The UDC target voltage is 320 V DC; each element is designed to handle the voltage output well. The design parameters of the UDC are given in Table 1.

Figure 5:

UDC circuit with PLECS

Table 1:

Design parameters of UDC

3.2 Bidirectional DC/DC converter

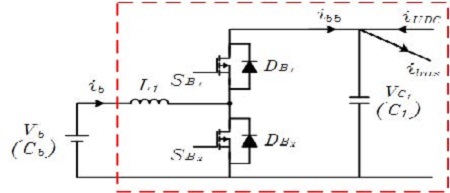

The BDC allows power flows in both directions for energy storage discharge and recharge. The BDC connects the DC bus to the battery; it can transmit energy in both directions. Additionally, the BDC boosts the battery voltage to the DC grid voltage. If the DC grid voltage is higher than the BDC output voltage, the BDC recharges the battery. The BDCha response must be fast enough to compensate for the slow dynamics of the FC during start-up or sudden load changes. Generally, a buck-boost converter is combined with the BDC, which can work in buck mode to charge the battery, and in boost mode to discharge the battery. Figure 6 shows the BDC circuit.

Figure 6:

BDC circuit

To ensure that the inductor is designed for keeping the continuous condition current mode, the inductor L₁ in the BDC is given in buck and boost converter mode, as shown below.

$\[ \begin{array}{c}{L}_1\left(\mathit{bu}\right)\ge \frac{{\mathit{DT}}_s}{2I_{\mathit{ch}}}\left(V_{C_1}-V_b\right)\\ L_1\left(\mathit{bo}\right)\ge \frac{T_{s}D\left(1-D\right)}{2I_{\mathit{ds}}}{V}_{C_1}\end{array} \]$

(5)

Additionally, the capacitor C₁ is chosen based on the delay time t_d, the voltage drop ΔV_c1, and the inverter maximum current I_im as follows:

$\[ {\mathrm{C}}_1=I_{\mathit{im}}\times \frac{t_d}{∆V_{c_1}} \]$

(6)

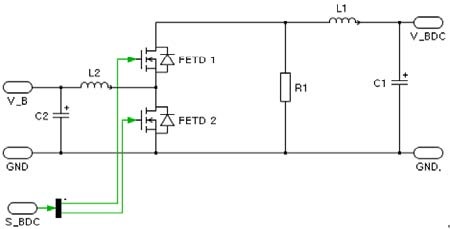

The BDC PLECS model is shown in Figure 7. R1 and L1 are added for voltage stabilization of the basic circuit. FET 1 and FET 2 are switched in turn to allow bi-directional operation such that the battery is charged and discharged based on the rise and fall of the mains voltage, based on load variations.

Figure 7:

BDC circuit with PLECS

The design parameters of the BDC is given in Table 2.

Table 2:

Design parameters of BDC

3.3 Inverter and motor

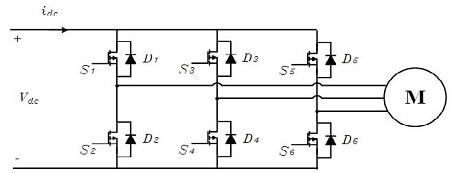

The propulsion component usually includes a three-phase induction motor. Therefore a three-phase voltage source inverter (VSI) is used to change DC into three-phase AC. Figure 8 shows the topology of a three-phase inverter.

Figure 8:

Three-phase voltage source inverter

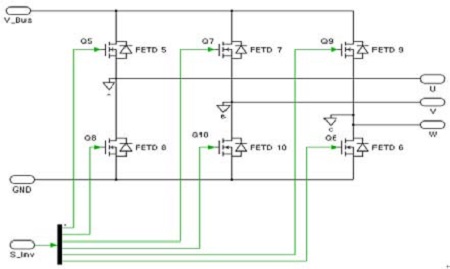

VSIs are divided into three categories; this paper uses a pulse-width modulated (PWM) inverter. Among the various PWM techniques, sinusoidal pulse width modulation (SPWM) is suitable in many industrial applications. The model of the inverter circuit with PLECS is shown in Figure 9.

Figure 9:

Inverter circuit with PLECS

The design parameters of the inverter ars given in Table 3.

Table 3:

Design parameters of inverter

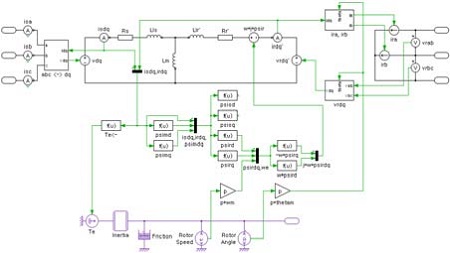

The inverter drives the propulsion motor for ship propulsion. Propulsion motors are modeled based on a 1.5-kW induction motor. The induction motor model is supported by PLECS. The propulsion motor PLECS model is shown in Figure 10.

Figure 10:

Propulsion Motor circuit with PLECS

The design parameters of the propulsion motor are given in Table 4.

Table 4:

Design parameters of propulsion motor

4. Simulation

Based on the models described in the previous section, a hybrid power management system model for an FC ship is developed. The hybrid power management system modeling is shown in Figure 11.

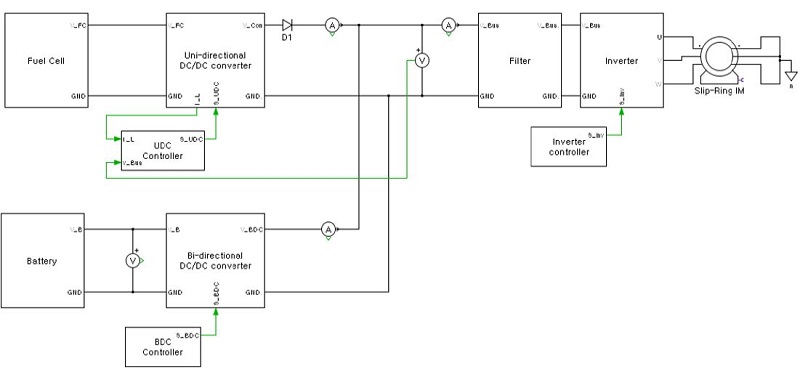

Figure 11:

Hybrid power management system model

Then, a cold start simulation is carried out to evaluate the system’s dynamic response. Because the FC takes a long time to operate at start-up, we use a battery to compensate for the initial load. Table 5 shows the cold start operation sequence of an FC ship.

The DC bus voltage is changed by the operational condition. The working situation of the FC is defined by the FC limit-power point voltage V_FCLP. For simulation purposes, the operational condition of the FC can be defined in terms of the DC bus voltage as follows:

Table 5:

Cold start operation sequence in a fuel cell ship

• 1) V_bus < VFCLP : battery supplies energy to the load
• 2) V_bus > V_UDCO : surplus power is transferred to battery
• 3) V_FCLP ≤ V_bus ≤ V_UDCO : the FC normal state

where V_UDCO is the UDC output voltage. We must select the FC limit-power point voltage V_FCLP, which has two control points: the slip-in point V_SLIP and the slip-out point V_SLOP. Additionally, V_bus is sensed for the control process of a hybrid power system.

During overload conditions, the battery must slip into the system, and the BDC should begin to work in a boost constant-voltage mode. V_SLIP can be determined in the overload condition. V_SLIP should be less than V_BDCO-Boost, but close to V_BDCO-Boost. V_SLOP is determined based on the battery’s slip-out time and FC’s self-start finish time. When the FC finishes its self-start and supplies power to the load, the UDC operates at constant voltage, and V_bus = V_UDCO. In this paper, V_SLOP is determined as V_BDCO-Boost ≤ V_SLOP ≤ V_UDCO.

The FC response time is tens of seconds for the cold-start state, and hundreds of milliseconds in the standby (warm-up) condition. The UDC response time is tens of microseconds. Therefore, the UDC response performance is not a serious issue in the hybrid system.

For smooth operation of the system, soft-start logic is used when initiating the UDC, BDC, and inverter. The voltage ramp-up time is 0.2 s. The soft-start logic used for PWM switching is shown in Figure 12.

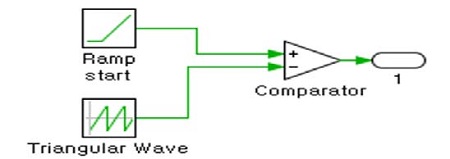

Figure 12:

Soft start logic for PWM switching

In this paper, the simulation operation time was adjusted to allow rapid identification of a change in the voltage and current corresponding to the drive unit. Figure 13 shows the adjusted operation time and operation sequence in the simulation.

Figure 13:

Operation sequence in simulation

An FC takes a long time to begin driving the load. Therefore, it needs to drive the BDC first. First, it increases the duty cycle of switches that operate the BDC in boost mode and increases the duty cycle of the complementary switches that operate the BDC in buck mode. After the BDC is operating, it drives the inverter to turn the propulsion motor. The propulsion motor is driven by the power of the battery. When the fuel cell is ready to self-start, the UDC is driven and the load is switched from the battery to the FC.

5. Simulation results

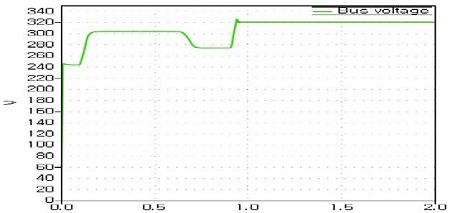

Figure 14 shows the change of the main bus voltage during the operational sequence. When starting the simulation, the main bus voltage is increased to roughly the battery voltage because of the characteristics of the BDC. After the duty cycle of the boost mode of the BDC is increased, the main bus voltage is maintained at roughly 305 V. When the motor is driven for 0.5 s, the voltage drops to 255 V after a soft start. The main bus voltage increases to the target voltage of 320 V as the UDC is driving the load.

Figure 14:

Waveform of main bus voltage

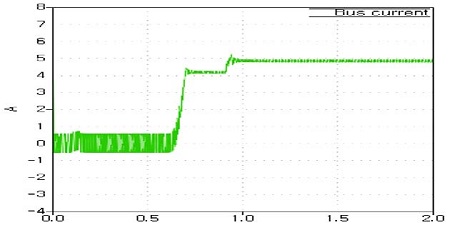

The change of the main bus current is shown in Figure 15. The current is repeatedly charged and discharged because of the driving of the BDC early in the simulation. The drive inverter main bus current rises to roughly 4.2 A after 0.5 s. The voltage is increased by the UDC.

Figure 15:

Waveform of main bus current

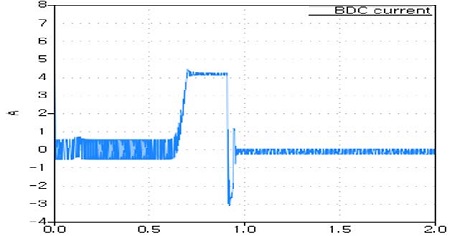

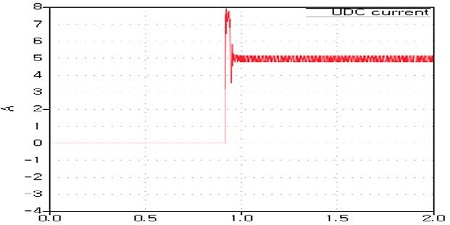

The current changes in the BDC and the UDC are shown in Figure 16 and Figure 17, respectively. The BDC current increase as the inverter is driving the load. The UDC current does not flow until the UDC voltage is higher than the BDC voltage. When the UDC voltage rises above the BDC voltage after 0.9 s, the BDC current falls and the UDC current rises sharply. The UDC appears to have a very fast reaction, because the FC model does not reflect the slow reaction speed.

Figure 16:

Waveform of BDC current

Figure 17:

Waveform of UDC current

Once the current changes suddenly, UDC changes to the steady state and the battery begins to charge.

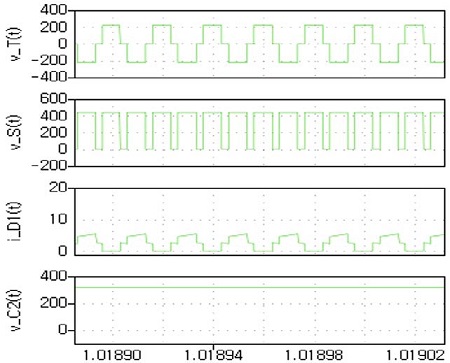

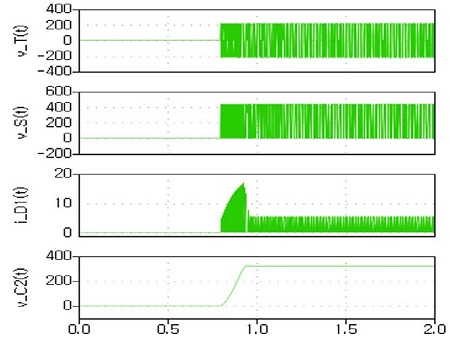

Figure 18 and Figure 19 show the waveforms of UDC operation. The UDC operates after 0.7 s. The PWM phase is shifted until v_C2 (i.e., the set voltage) is reached.

Figure 18:

Waveforms of UDC

Figure 19:

Waveforms of UDC in steady state

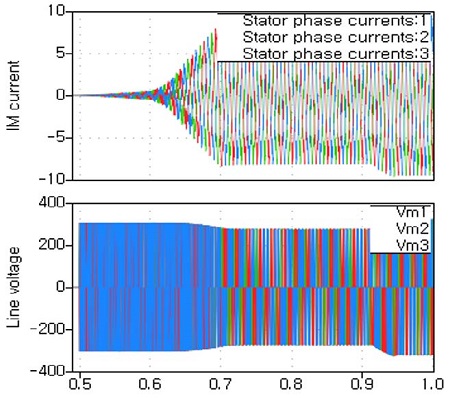

Figure 20 shows the waveform of the propulsion motor. After the soft start, the line voltage and current rise when the UDC voltage rises.

Figure 20:

Waveforms of propulsion motor current and line voltage

6. Conclusions

A hybrid power management system in an FC ship was designed in this paper. To design the system, we confirmed the power system’t operation and analyze electric sources and converters. Then, system modeling was carried out using PLECS software. Finally, we performed a cold start simulation to understand the characteristics of the hybrid power management system. The proposed PLECS model can be effectively used to design a hybrid power management system in an actual ship. Therefore, we must improve the model using an actual ship experiment.

Acknowledgments

This work was supported by Development of EMS for Green-ship program funded by the Korea Institute of Marine Science & Technology Promotion and Development of eco-friendly Single Point Mooring System with intergrated control system operable up to maximum water depth 100 meters program funded by the Small and Medium Business Administration
