Design of exhaust manifold for pulse converters considering fatigue strength due to vibration

1.1 Absorbing thermal expansion

Because of varying pressure and temperature fluctuations in the manifold of the engine, the pulse converters are subject to thermal expansion. The temperature measured at the outlet of a cylinder is varying in the range of 400 ~ 500 ℃. Considering 4 m long bank length, a bank is a exhaust gas runner combining a group of cylinders, the thermal expansion should be taken into account in the design of exhaust manifold. It is a common engineering practice to use a heat expansion joint to absorb thermal stress.

1.2 Vibration operating condition

The medium speed diesel engines normally operate in a speed range around 700 ~ 1,500 rev/min, and have power outputs up to 6,000 kW [2]. When used as a power generator, the range of 70 ~ 80 percent of full load is set to be a normal operating condition. Under this operating condition, the first natural frequency of the exhaust manifolds must be located over 100 Hz which might be considered as a threshold to signify early fracture caused by resonance. It is a rule of thumb to relocate the first natural frequency of the system at least over 100 Hz for such systems which are subject to thermal expansion and vibrational movements. However, it should be recognized that the use of separate bank to include a group of pulse converters might require some engineering compromises in terms of stiffness of the system. The complicated geometric structure open results in lower natural frequencies. Durability could be then seriously deteriorated as the operating load exceeds over the normal.

Thus, the heat expansion joint used is designed to absorb thermal expansion and not movements induced by vibration. Since the heat expansion joint is made of a thin stainless sheet metal (0.2 ~ 0.3 mm), the lower frequency resonance of the exhaust manifold could cause permanent damage to the heat expansion joints. This is because the thermal expansion compounded with pressure pulsation acts as mean stress to shorten the expected life cycle of the material. The operating load has to be regulated at a certain level not to exceed the design standard, for example, 80 percent of full load. Exceeding this might be critical in safety as shown in Figure 2. In other words, a properly designed exhaust manifold can help to increase the operating load over the limit.

Figure 2:

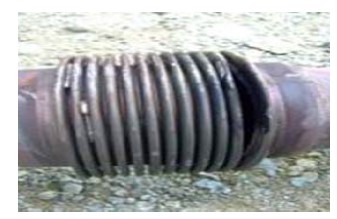

Early failure due to fracture

2.1 Configuring layout of the system

The configuration of the pulse converters must be made to minimize mounting tolerances. The best way to minimize the accumulation of mounting tolerances is not to use the welded pipes and converters. This is, especially, true for the design of exhaust manifolds for medium-speed diesel engines. The design volume of 4,000×1,000×500 mm3 is too big to cover with weldings. Welding itself is not sensitive to tolerance, but layers of welding might cause the accumulation of tolerances. When designing a system which is subject to thermal expansion and vibration, welding free construction must be considered.

The converters are made by cast parts having general tolerance of 1/20 mm, and connected by heavy duty V-clamps. It allows mounting tolerance to the similar level of cast parts. The design target of the exhaust manifold is 8,000 hours of operation without significant failures. Comparing damage calculations of the cases of ± 5 mm and ± 2 mm offsets, the former results in 50 percent of failure rate (damage of 110 %) and the latter 0.05 % (damage of 11.8 %). Here, damages are calculated at the heat expansion joints by employing the Palmgren-Miner rule.

2.2 Heat expansion joint (HEJ)

Thermal expansion induced by the high temperature exhaust gas is designed to be absorbed by the expansion joint having axial stroke of 18 mm (peak to peak). The heat expansion joints are installed between the cylinders in order to decouple the converters from thermal stresses. According to the EJMA (Expansion Joint Manufacturer's Association) result (see Table 1), the proposed HEJ could endure at least 15,000 cycles under the given condition. The proposed HEJ in fact can go more than 10 times of the calculated value (see Table 2).

Table 1:

EJMA calculation result of HEJ

Table 2:

18mm of axial displacement

2.3 Measurement to make system stiffer

A HEJ is not designed to absorb any vibrational movement under 100 Hz. The displacement under this frequency possesses enough energy to kill the HEJ used to absorb thermal expansion. However, the design volume of the complete exhaust manifold is too big to relocate the first natural frequency below 100 Hz. To make the complete system stiffer, a considerable thickness increase of the cast converters would be unavoidable. It costs more and makes the system heavy. To increase the natural frequency, the banks are reinforced by U-joints as shown in Figure 3. As explained in the next section, the use of U-joints is simple and effective to increase stiffness of the system.

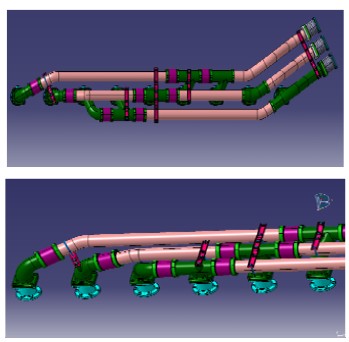

Figure 3:

Reinforcement of banks

2.4 Experimental modal analysis

To measure the first natural frequency of the complete system under full load condition, a set of accelerometers are used. However, it should be noted that the ambient temperature of the exhaust manifold under full load exceeds 500 ℃. Under this condition, the measurement of acceleration is not possible unless otherwise employed specially devised sensors for such high temperature measurements. Even with those sensors, the reliable data cannot be obtained easily. To measure the vibrational behaviour of the complete system under full-load condition, water-cooled adaptors are devised to protect temperature sensitive sensors (Figure 4).

Accelerations were measured both at the inlet and outlet sides of each HEJ. To see the effect of reinforcements, two different cases, with and without them, were assessed in terms of their first natural frequencies. The exhaust manifold was completely bended like a bow under the full load condition. Without appropriate reinforcements, Case WO, the first natural frequency was observed at 60 Hz with the amplitude of ± 0.4mm (Figure 5).

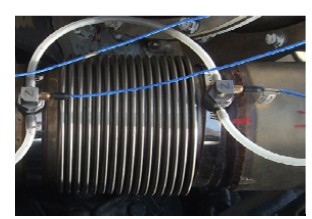

Figure 4:

Water cooled accelerometer

With reinforcements, Case W, the first resonance was seen at 150 Hz with the amplitude of ± 0.02mm (Figure 6). Both were taken from the biggest signals of two different cases in the lateral direction. The magnitude of ± 0.4 mm is significant in terms of fatigue. Assuming 8,000 hours of continuous operation, the HEJ must endure 8000×60×60×60 cycles of axial movement. Simply, it is not working. Without appropriate reinforcements to relocate the first natural frequency over 100 Hz, the part cracks within 24 hours of continuous operation.

Figure 5:

1st Resonance (Case WO)

Figure 6:

1st Resonance (Case WO)

3.1 Superposition of loads

The stress in any point of the HEJ is the result from the combination of different loads are namely, 1) thermal expansion 2) internal pressure and 3) vibration. Depending on the form of load, different cycles are observed. For example, the thermal expansion can be classified as a lower cycle fatigue, while that of vibration as a higher cycle one.

For the higher cycle fatigue, the required number of load cycles must be chosen over 1 million (so called fatigue limit). For the lower cycle fatigue, the required number of load cycles is far less than 1 million. The normal safety factor of 12.5 (5: normal safety factor of ×2.5: temperature factor due to high temperature) is applied for the lower cycle load and the safety factor of 2 for the higher cycle one.

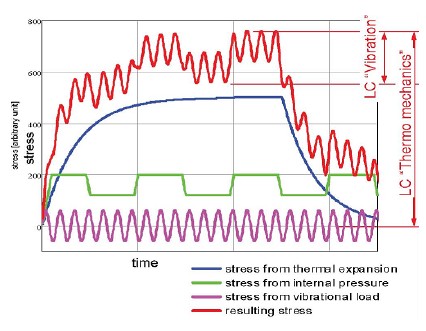

Figure 7:

Different characteristics of loads

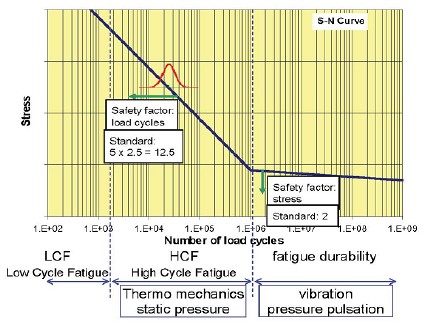

Figure 8:

Stress evaluation

However, it should be recognized that the vibrational movements caused by the resonance which is lower than 100 Hz should be treated differently. The normal safety factor of 2 for the higher cycle fatigue is no longer valid due to the significance of its magnitude (see Figure 8).

3.2 Damage parameter

Unlike the usual case, the majority of fatigue comes from vibration instead of thermal expansion. Moreover, the large quasi-static load caused by the thermal expansion acts as mean stress to reduce number of cycles on the S-N curve. Then the modified Goodman line is obtained by

where σ_a denotes stress amplitude and σ_m mean stress, while σ_fB is obtained from the material characteristics somewhat higher than σ_u , ultimate strength. The stress amplitude under the mean stress, σ_ar is obtained by the Smith, Watson, and Topper (SWT) equation as shown in Figure 9[3].

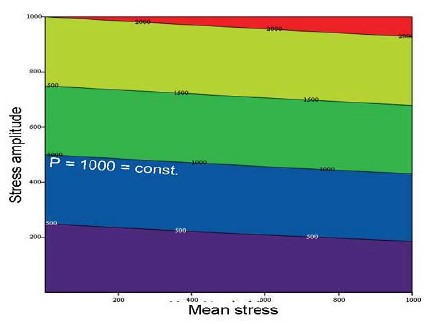

Figure 9:

Amplitude-Mean Diagram

4.1 Thermal load

To find extra space and time for the experimental verification of the whole system is extremely difficult because of the 8,000 hours of operating condition. To run a diesel engine such a long time would be very costly. Considering that most of early failures occurred at the first 24 hours of engine-bench tests, the test rig is developed to validate the durability of the HEJ under the combination of thermal and vibrational loads. To simulate high temperature of exhaust gas, a set of LPG gas torch are used. The amount of air flow can then be controlled to provide gas temperature of 600 ℃ with the temperature variation of maximum 50 ℃ between the inlet and outlet sides of the HEJ. The temperature difference of 50 ℃ is chosen according to the result of actual temperature measurement

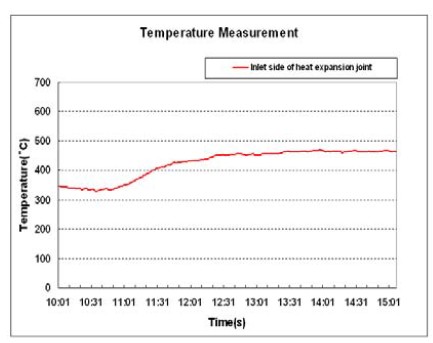

Figure 10:

Temperature measurement of HEJ

4.2 Vibration load

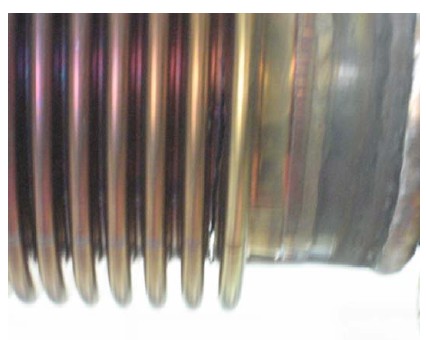

The measurement result of the exhaust manifolds is obtained from the biggest signal among 3 directional movements. The field factor must be considered to assure a reliable, yet efficient simulation. This factor was obtained by trial and error. Considering the HEJ was cracked within the first 24 hours of full load condition without reinforcements, The test rig was used to see which amplitude cracks the part. It came to 22 G at 60 Hz. Comparing with the result of actual measurement, we got the field factor of 3.6. With this field factor, the HEJ was cracked within the first 24 hours on the test rig, as shown in Figure 11.

Figure 11:

Test rig to simulate thermal and vibration movements
