Clustering-based data refinement considering normal data distribution in MIL-Based WSVAD

2.1 VAD

Defining anomalies in video data at the frame level or pixel level is inherently subjective and requires substantial human and temporal costs when applied to large-scale datasets. To alleviate these labeling challenges, Multi-Instance Learning (MIL) was proposed as an alternative learning paradigm. MIL assigns labels only at the level of a set of instances, referred to as a bag, rather than to individual instances, enabling effective learning even when instance-level ground truth is incomplete or unavailable.

Dietterich et al. first introduced MIL in the context of drug activity prediction, where multiple 3D molecular conformations associated with a single sample were represented as a bag, and learning was performed under the assumption that a positive bag contains at least one positive instance. This framework demonstrated that positive instances can be effectively identified even in partially labeled settings. Subsequently, MIL was extended to the field of computer vision by representing an image as a bag of patches and treating each patch as an instance. Chen et al. applied this formulation to natural scene classification and showed that image classification can be achieved without patch-level annotations.

With the development of strongly supervised object detection models such as R-CNN and YOLO, interest in MIL temporarily declined. However, as research attention shifted toward video data, MIL regained prominence. Videos contain a large number of frames and complex temporal structures, making precise instance-level annotation particularly challenging. To address this issue, Kuehne et al. proposed a method that estimates temporal action segments using weak action annotations based on Hidden Markov Models (HMMs) and Gaussian Mixture Models (GMMs).

In the field of Video Anomaly Detection (VAD), Sultani et al. were the first to adopt MIL and proposed a learning framework that relies solely on video-level labels. This approach significantly reduced labeling costs while achieving superior performance compared to previous unsupervised methods, and it has since served as the foundation for numerous MIL-based VAD studies. Building on this line of work, Tian et al. proposed a model that combines self-attention mechanisms with Top-k instance selection to incorporate temporal information and partially alleviate learning imbalance. Additionally, Lv et al. introduced a strategy that selectively learns ambiguous frames based on changes in anomaly scores, while Yixuan et al. proposed emphasizing anomaly-prone clips by measuring divergence from the feature mean (DFM).

Nevertheless, existing MIL-based VAD approaches primarily focus on snippet or instance selection strategies and do not explicitly consider the fine-grained distributional structure within normal videos. In real-world surveillance environments, normal behaviors are recorded far more frequently than abnormal ones, resulting in the coexistence of dominant repetitive patterns and relatively rare, highly variable patterns within normal data. If such intra-class structural differences are not considered during MIL training, repetitive normal patterns tend to dominate the learning of anomaly-relevant features, making it difficult to form a clear boundary between normal and abnormal samples. These limitations cannot be sufficiently mitigated by simple instance selection or attention weight adjustment alone.

2.2 Data Mining

In the field of data mining, representative approaches to address imbalanced learning are broadly categorized into over-sampling and under-sampling strategies. Over-sampling aims to increase the number of minority-class samples, and representative methods generate synthetic data through interpolation based on k-nearest neighbors (k-NN). In contrast, under-sampling adjusts class distributions by selectively removing samples from the majority class.

Video data inherently exhibit temporal structures, and artificial data augmentation processes may distort temporal continuity or dynamic patterns. Consequently, in video anomaly detection research, under-sampling strategies that remove existing samples are generally preferred over over-sampling methods that generate new data. This preference is particularly evident in Multi-Instance Learning (MIL) settings, where instance-level annotations are unavailable and only weak labels at the video level are provided. In this context, a snippet is defined as a short temporal segment extracted from a video and treated as an instance within a bag. Due to the absence of precise instance-level labels, simple random under-sampling is insufficient, and feature-based selective under-sampling strategies are required.

Motivated by this limitation, cluster-based under-sampling methods have been introduced. These approaches partition the data into multiple clusters using clustering algorithms such as k-means and compute the ratios between majority and minority classes within each cluster. Based on these ratios, majority-class samples are selectively removed to achieve a more balanced distribution. Gupta and Jivani further extended this idea by proposing a framework that quantitatively analyzes cluster-wise distributions and automatically adjusts the removal rate of majority-class samples to minimize information loss.

However, existing data-mining-based under-sampling techniques typically assume that explicit class labels are available for individual samples. This assumption does not hold in MIL-based video anomaly detection environments, where instance-level labels are absent and only weak video-level annotations are provided. Moreover, video data are temporally ordered time-series signals, making it difficult to directly apply conventional data mining techniques that rely on the independence assumption between samples.

Due to these constraints, MIL-based video anomaly detection requires alternative under-sampling strategies that do not directly depend on class ratios but instead analyze the underlying feature distributions. In particular, data reconstruction schemes that distinguish repetitive patterns from relatively rare patterns within normal data and regulate their influence during training can play a crucial role in improving the performance characteristics of MIL-based video anomaly detection models, especially in mitigating boundary ambiguity between normal and abnormal instances.

3.1 Motivation

Conventional MIL-based video anomaly detection (VAD) methods utilize only video-level labels (normal = 0, abnormal = 1) and learn by selecting the most anomalous candidates at the snippet level. However, a snippet—defined as a short temporal segment treated as an instance in MIL—is constructed via mean pooling over multiple clip-level features. As a result, informative but sparse patterns, such as a small number of normal or abnormal clips within a snippet, are easily diluted by the majority of normal clips.

This dilution effect leads to overlapping regions in the normal–abnormal feature space, making it difficult for MIL frameworks to learn a clear anomaly decision boundary. Consequently, it becomes necessary to structurally decompose the feature distribution of each video prior to snippet generation, in order to distinguish between majority normal and minority normal patterns. Such a process provides a prerequisite for effective under-sampling and boundary-aware learning in MIL-based VAD.

3.2 Overview

The overall procedure of the proposed framework is as follows. First, clip-level features are extracted from each video using a pre-trained feature extractor, I3D. For each video, K-means clustering is then performed based on the L2 norm of the clip-level features, decomposing the internal feature distribution of the video into KKK clusters.

Based on the clustering results, clusters are divided into two groups according to their sizes: clusters containing a relatively large number of features and those with lower frequencies. The former are referred to as majority normal clusters, while the latter are defined as minority normal clusters. This distinction is introduced to structurally separate repetitive patterns from relatively diverse patterns within normal data from the perspective of feature distributions.

During the training stage, clip-level features belonging to the majority normal clusters are selectively removed for each video. The remaining features are then rearranged while preserving their original temporal order. From this reconstructed clip feature sequence, snippets of the same length as those used in conventional approaches are generated. Finally, a MIL-based classifier is trained using the reconstructed snippets as input.

The proposed data reconstruction process does not alter the original video-level labels (normal or abnormal), and the overall model architecture remains identical to that of existing MIL frameworks. By adjusting the internal feature distribution of videos at the data level without modifying the model design, the proposed approach provides a data-centric strategy for influencing the formation of the normal–abnormal decision boundary.

3.3 Top Under-sampling

In this section, we define a Feature-level Top Under-sampling strategy that selectively removes clip-level features with low contribution to learning, based on the analysis of intra-video feature distributions. The proposed under-sampling approach does not modify the snippet partitioning scheme or the MIL training architecture; instead, it aims to reconstruct the input distribution for learning solely by adjusting the composition of the clip-level feature set.

For each video v, let the extracted clip-level feature set be X^(v)={x₁, x₂,…, x_N}(x_i∈R^d) To decompose the internal feature distribution of a video, K-means clustering is applied based on the L2 norm of clip-level features by iteratively updating cluster assignments and centers to minimize the following objective:

where $$ C_k^{\left(v\right)}$$ denotes the set of clip-level features assigned to the k-th cluster of video v, and $$ {\mu }_k^{\left(v\right)}$$ represents the mean of the feature norms within that cluster. The size of each cluster is defined as the number of features contained in the cluster.

Empirically, a skewed distribution is consistently observed across most videos, where a small number of clusters account for a substantial portion of the overall features. Based on this observation, clusters ranked at the top according to cluster size are designated as majority normal clusters, while the remaining clusters are defined as minority normal clusters. This distinction is not based on predefined action categories or semantic labels, but is determined solely by the statistical characteristics of the feature distribution.

In the Top Under-sampling stage, clip-level features belonging to the majority normal clusters are removed from the training data, while features associated with minority normal clusters are retained. This procedure mitigates the influence of dominant, repeatedly occurring patterns within normal data and allows less frequent and more dispersed features to have a greater impact during subsequent training stages. The process does not alter the original video-level labels (normal or abnormal) and is performed as a feature-level data refinement strategy in the preprocessing stage.

3.4 Snippet Reformation with Temporal Order Preservation

This section describes the snippet reformation process that enables the clip-level features remaining after Top Under-sampling to be used as input for MIL-based training. The proposed method preserves the snippet partitioning length employed in conventional MIL-based video anomaly detection (VAD) frameworks, while differing in that the input feature set has been modified through under-sampling. This design allows the effect of input distribution reconstruction to be evaluated independently of changes to the MIL architecture or snippet segmentation protocol.

After Top Under-sampling, the clip-level feature set is filtered while preserving temporal order. Since certain clip features are removed during the under-sampling process, each resulting snippet maintains the original temporal ordering but may consist of a non-contiguous subsequence in which intermediate clips are missing. Thus, a snippet is no longer defined as a set of temporally adjacent frames, but rather as an ordered subset of clip-level features with preserved temporal sequence. This representation remains compatible with MIL-based learning, as the snippet is treated as a set-level instance rather than a strictly continuous temporal segment.

The filtered clip feature sequence is then divided into snippets of fixed length following the same partitioning scheme as in existing approaches. For each snippet S_j , mean pooling is applied to the included clip-level features to obtain the snippet representation:

where $$ x_j^{\text{'}}$$ denotes the representation of the reconstructed j-th snippet. Mean pooling is intentionally retained to isolate the effect of input feature distribution reconstruction, ensuring that any observed performance differences arise from the proposed data-level modification rather than changes in the pooling operation or MIL learning structure. Because the feature set S_j is constructed after removing features associated with over-represented clusters, the dilution of anomaly-adjacent features by repeatedly occurring normal patterns during averaging is mitigated, thereby facilitating clearer boundary formation between normal and abnormal representations.

3.5 MIL Training

The MIL training procedure using reconstructed snippets follows the same architecture as conventional MIL-based video anomaly detection (VAD) methods. Each video is annotated only with a video-level label y∈{0,1}, and no ground-truth labels are provided at the snippet level. In the MIL setting, the snippet with the highest anomaly score within a video is regarded as the representative instance for that video during training.

Specifically, the anomaly score of a reconstructed snippet $$ x_j^{\text{'}}$$ is computed by a classifier f(⋅), and the prediction for a video v is defined as

For MIL training, we employ a magnification-based MIL loss formulation commonly used in prior work. This loss consists of a video-level classification term and an additional feature magnification term designed to enhance the separability between normal and abnormal features. The overall loss function is defined as follows.

where λ is a weighting factor that balances the two loss term

The MIL loss L_MILis defined as a binary classification loss between the video-level prediction $$ \widehat{y}$$and the ground-truth label y:

The magnification loss L_MAG is designed to encourage anomaly-relevant features to be sufficiently emphasized compared to normal features in abnormal videos. Let z_a denote the feature representation of the snippet with the highest anomaly score, and z_n denote the feature representation of a normal snippet. The magnification loss is defined as

where m is a margin hyperparameter. This term enforces the norm of abnormal snippet features to be sufficiently larger than that of normal snippet features, thereby strengthening normal–abnormal separation in the feature space.

The key effect of the proposed Feature-level Top Under-sampling lies in adjusting the input feature distribution so that this max-based MIL loss operates more stably. When majority clusters are not removed, repeatedly occurring normal patterns may dominate the anomaly score distribution, preventing abnormal snippets from being selected as the maximum-scoring instances. In such cases, the gradient of L_MIL is insufficiently propagated to abnormal snippets, and the effect of L_MAG is weakened due to the excessive influence of normal features.

In contrast, after the proposed reconstruction process, snippets are primarily composed of features from minority clusters. As a result, normal videos tend to converge to low anomaly scores, while anomaly-relevant features are relatively emphasized in abnormal videos. Consequently, the probability that the snippet selected by the max-based aggregation contains genuine abnormal patterns increases, allowing the magnification-based loss to more effectively promote feature separation between normal and abnormal instances.

In summary, the proposed Top Under-sampling strategy adjusts the input feature distribution without modifying the MIL architecture or loss formulation. By doing so, it enables the core assumption commonly adopted in max-based MIL that an abnormal video contains at least one abnormal instance to be more faithfully reflected during training.

4.1 Cluster Distribution Analysis

For each video, Feature Norm Clustering is performed using the K-means algorithm with K = 10, and the distribution of clip-level features across clusters is analyzed. The value of K was chosen to provide a sufficient level of granularity to distinguish dense feature groups from more sparsely distributed ones, while maintaining a manageable clustering structure for subsequent analysis.

Across the dataset, it is observed that, in many videos, the top three clusters account for approximately 50% or more of the total features. The detailed distribution statistics are summarized in Table 1. Based on this empirical observation, the top clusters are defined as majority normal clusters in this study.

Table 1:

Comparison of the Number of Clips in Top3 and Bot7 for Feature Norm Clustering–Based Data Refinement

Table 1 quantitatively summarizes this distribution by reporting the number of clip-level features belonging to the top three clusters (Top3) and the remaining seven clusters (Bot7) for both normal and abnormal videos. As shown in the table, a small number of clusters dominate the overall feature distribution, while the remaining clusters contain a comparable but more fragmented portion of the data.

In contrast, the remaining seven clusters contain relatively fewer features and tend to exhibit more diverse visual and motion characteristics. Accordingly, in normal videos, these clusters are referred to as minority normal clusters, while in abnormal videos, they are regarded as abnormal-relevant clusters with a higher likelihood of containing anomaly-related features.

These observations demonstrate the existence of intrinsic distributional heterogeneity (i.e., skewed distributions) within normal data. Moreover, they suggest that treating all normal snippets equally during MIL training may allow such structural bias to adversely affect the learning of the normal–abnormal decision boundary.

4.2 Effect of Data Refinement on MIL Performance

To analyze the impact of the proposed data refinement strategy, four training data configurations are constructed by selecting either the top three clusters (Top3) or the bottom seven clusters (Bot7) for normal and abnormal videos, respectively. Specifically, four training data combinations are evaluated. The Top3–Top3 combination uses majority clusters for both normal and abnormal videos. The Bot7–Bot7 combination uses minority clusters for both normal and abnormal videos. The Top3–Bot7 combination uses majority clusters for normal videos and abnormal-relevant clusters for abnormal videos. The Bot7–Top3 combination uses minority clusters for normal videos and majority clusters for abnormal videos.

Table 2 reports the quantitative performance of each configuration in terms of overall test AUC (AUC_O), abnormal-video (AUC_A), and the corresponding EER values. For each configuration, the performance is compared against the baseline model trained on the original dataset. The results indicate that different data compositions lead to distinct performance characteristics. The Top3–Top3 configuration yields the lowest overall performance, as it relies primarily on repetitive and less informative majority patterns in both normal and abnormal videos. This result suggests that majority normal patterns provide limited discriminative information for anomaly detection.

Table 2:

Performance Comparison of MIL-Based WSVAD under Different Top3/Bot7 Data Configurations (AUC/EER)

In contrast, the Bot7–Bot7 configuration improves both AUC_O and AUC_A relative to the baseline by leveraging clusters with higher diversity in both normal and abnormal videos. This finding implies that minority normal clusters and abnormal-relevant clusters play a more critical role in forming the normal–abnormal decision boundary.

The Top3–Bot7 configuration demonstrates an improvement in overall AUC by maintaining stability in normal data while emphasizing abnormal-relevant clusters. Conversely, the Bot7–Top3 configuration exhibits a trade-off: while sensitivity to abnormal videos increases, false positives also increase due to training that focuses on hard normal samples.

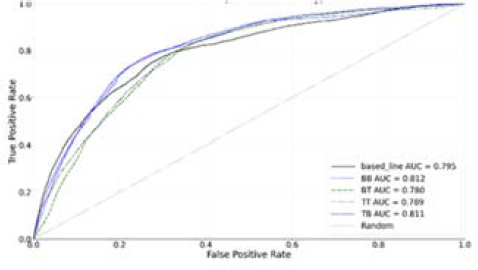

Figure 1 further illustrates these trends by presenting the ROC curves corresponding to different data refinement configurations. In particular, configurations that emphasize minority normal clusters and abnormal-relevant clusters exhibit consistently higher true positive rates in low-to-mid false positive rate regions, highlighting the effectiveness of the proposed data refinement strategy in modulating anomaly sensitivity and shaping the normal–abnormal decision boundary under a fixed MIL setting.

Figure 1:

ROC Curve Comparison of MIL-Based WSVAD under Baseline and Top3/Bot7 Data Refinement Strategies

4.3 Analysis of Normal and Abnormal Score Distributions

Finally, anomaly scores obtained during testing are analyzed in histogram form by separating normal and abnormal videos for each experimental configuration. Figure 2 visualizes the score distributions for normal (GT = 0) and abnormal (GT = 1) samples under different data refinement strategies.

Figure 2:

Anomaly Score Distributions for Normal (GT = 0) and Abnormal (GT = 1) Samples under Different Data Refinement Strategies

In the baseline setting, the score distributions of normal and abnormal videos exhibit substantial overlap, reflecting ambiguity in the anomaly boundary. In particular, a large portion of normal samples receive intermediate anomaly scores rather than being confidently assigned low values, while some abnormal samples are not sufficiently separated toward high-score regions.

In contrast, the Bot7–Bot7 and Top3–Bot7 configurations show a clear shift in score distributions. Normal scores are concentrated toward lower ranges, while abnormal scores are more strongly pushed toward higher ranges, thereby reducing overlap between the two distributions. Notably, the Bot7–Bot7 configuration exhibits reduced variance and an increased median in abnormal scores, indicating improved stability and consistency in anomaly detection.

These distributional analyses, as illustrated in Figure 2, provide visual evidence that complements quantitative performance metrics such as AUC and EER. They demonstrate that the proposed data refinement strategy effectively mitigates boundary ambiguity by reshaping the score distributions of normal and abnormal samples from a feature distribution perspective.

Author Contributions

Conceptualization, D. H. Seo; Methodology, J. S. Lee; Software, J. S. Lee; Formal Analysis, J. S. Lee; Investigation, J. S. Lee; Resources, D. H. Seo; Data Curation J. S. Lee; Writing-Original Draft Preparation, J. S. Lee; Writing-Review & Editing, D. H. Seo; Visualization, J. S. Lee; Supervision, D. H. Seo; Project Administration, D. H. Seo; Funding Acquisition, D. H. Seo.
