A Study on Attitude Heading Reference System Based Micro Machined Electro Mechanical System for Small Military Unmanned Underwater Vehicle

2.1 Configuration

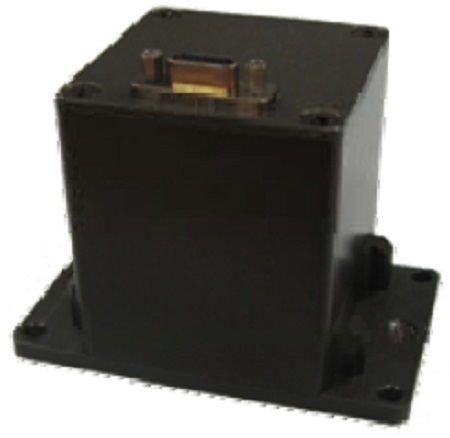

We has been developed small UUV for some military mission as like the submarine training. The AHRS based MEMS had been also developed for the developed small military UUV. The AHRS is designed to be equipped with the 3 axis MEMS gyro, 3 axis MEMS accelerometer and 3 axis MEMS magnetometer. Figure 1 presents the overview of the AHRS and the specifications of AHRS are summarized at Table 1. The navigation computer in AHRS calculates the acceleration in 3 axis, roll, pitch and yaw with sensor's output with calculation algorithm based Kalman filter. The configuration of AHRS is presented at Figure 2.

Figure 1:

AHRS based MEMS for small high speed UUV.

Table 1

Specification of AHRS based MEMS

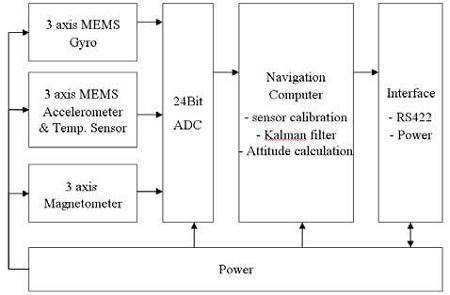

Figure 2:

Configurations of AHRS based MEMS

2.2 Attitude determination

Even if strapdown Inertial Navigation Systems (INS) can provide attitude and heading estimates after initialization and alignment by integrating the attitude rates that are related to attitude angles and the angle rate measurement of the gyroscopes, the strapdown INS implementation suffers from error growth due to the integration of the inertial gyro measurements that contain various errors. Therefore MEMS AHRS can not implement the integration method due to its high error growth rate.

Alternative for AHRS based MEMS sensor is the method using transform matrix from linear acceleration to specific force based on the Euler’s theorem called the a direction cosine matrix(DCM) method. According to Euler’s theorem, we can specify the orientation of the body frame relative to the navigation frame using three angles known as Euler angles which can be obtained using three successive rotations about different axes, known as the Euler angle sequence[6][7].

Roll and pitch angle are calculated with DCM under the assumption that UUV dose not move and the gravity is g. Each specific force is described as Equation (1)

f ^bis the measured specific force at body fixed coordinate and f ⁿ is the measured specific force navigation coordinate. Transformation matrix from body coordinate to navigation coordinate is $$ C_n^b$$ in Equation (2)

where is s(∙) = sin(∙),c(∙) = cos(∙)

The relationship between f ^b and f ⁿ is described as follows

From Equation (3), the pitch and roll are calculated as follows.

If the alignment time is T_a, pitch and roll in Equation (4) are calculated through integration as like Equation (5).

As shown Equation (2), the yaw angle can not be calculated from transform matrix using linear accelerometer. Therefore another measurement other than linear acceleration is required and the angular acceleration is used to solve this problem in this paper because the developed AHRS contains 3 axis gyro.

The relationship between the rate of Euler’s angles and the output from gyro is describes as follows;

From Equation (6), the derivative equation can be derived as follow;

The yaw angle can be calculated from Equation (7) with the calculated roll, pitch angles from Equation (5). Since Equation (5) and (7) require to solve the integration and determination, the estimation method is essential to solve the attitude determination problem. Therefor the extended Kalman filter (EKF) is used in this paper. The system state vector and measurement vector for EKF is summarized as follows. The state error vector has six components consisting of a 3-vector quaternion error and 3-vector gyro bias error. This AHRS has the G-slave mode which gives more gain of gyros to attitude calculation block than accelerometers in addition to general Kalman filter. It reduces attitude errors due to the centrifugal force when the vehicle turns. The detail procedure and the value of parameter for EKF is omitted because those are classified as confidential.

Several evaluation experiments were carried out for the validation of the developed AHRS's function. Experiments are classified as the static motion test, land mobile vehicle test, and the experiment with flight motion simulator (FMS).

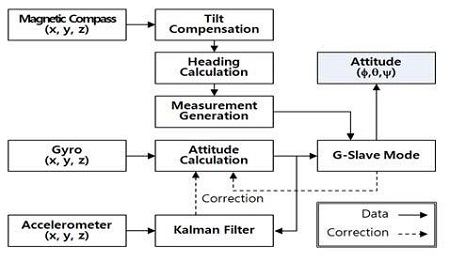

Figure 3:

Configurations of Navigation Filter

3.1 Magnetometer Calibration

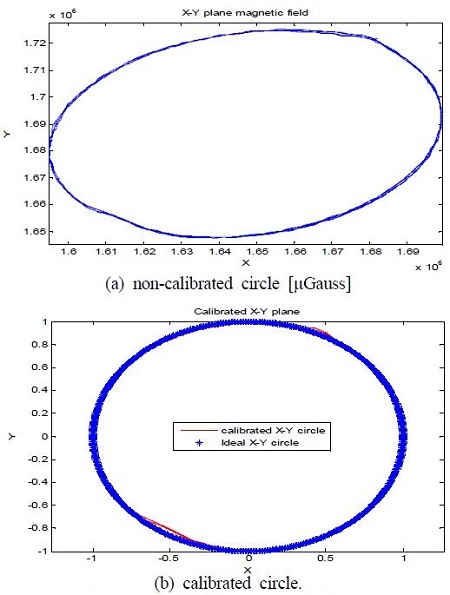

The magnetometer which measures the strength of earth magnetic field can produce the precise absolute yaw angle even if the price of magnetometer is low among the navigation senor. However, since the distortion of geomagnetic cause the error of the calculated yaw angle from the magnetometer, the magnetometer must be calibrated to remove the effect of environmental error for example soft iron effect and hard iron effect. The magnetometer is calibrated through the test with rate table which simulates the 3 degrees of freedom motion of UUV. The measured yaw angles from non calibrated and calibrated magnetometer are depicted with Figure 4. Figure 4 proved that the non calibrated magnetometer was distorted by environmental effect and magnetometer calculated the absolute direction after calibration.

Figure 4:

Calibration circle of 2 dimensional circle in x-y plane

3.2 Static test

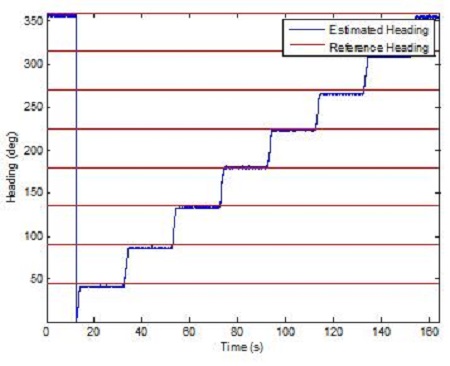

The static motion test was preformed to measure the output signal of the AHRS when roll, pitch, and yaw of rate table were the fixed angle. The static motion test results are summarized at Table 2. Since the error of yaw result in table are very large comparing those of role and pitch, the detail result of yaw are describe at Figure 5. Figure 5 presents the fact that the developed AHRS can measure the stable yaw in all direction with small error.

Table 2

Error of AHRS based on MEMS under static motion test

Figure 5:

Measured heading under station motion test.

3.3 Kinematic test

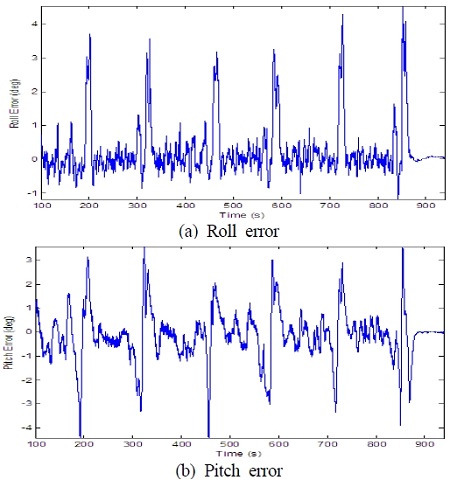

The field operating test on land was performed for the measuring the dynamic characteristic of AHRS's roll and pitch through repeated line movement. The measuring data was compared with the data from HG1700 which is the tactical inertial sensor and manufactured by Honeywell. Leveling error between the developed AHRS and HG1700 are presented at Figure 6. The standard deviations of error in Figure 6 are 0.439° about roll and 0.726° about pitch. Figure 6 shows that the measuring function of our AHRS about roll and pitch has a good performance even if the AHRS is designed based MEMS technology.

Figure 6:

Kinematic test result of roll and pitch.

3.4 Experiment with FMS

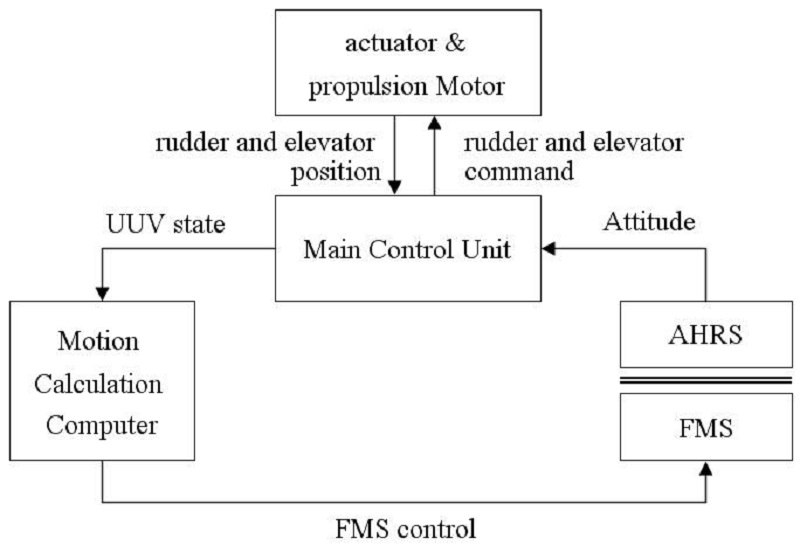

The experiment using FMS were carried out for the verification of AHRS and real auto pilot control algorithm of small UUV. The sequence and hardware interface of the experiment is presented in Figure 7. The conditions of the test are summarized at Table 3.

Figure 7:

HILS interface block-diagram of UUV.

Table 3

Conditions for the experiments with FMS.

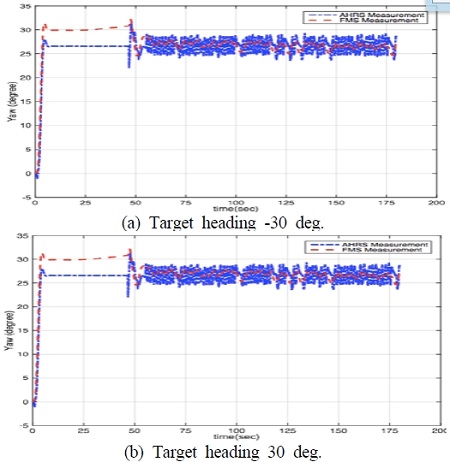

The measuring data from the AHRS and flight motion simulator (FMS) during the test about 2 cases in Table 3 are shown at Figure 8. Figure 8 shows the fact that there are some difference between AHRS and FMS and the oscillation of AHRS data after the yaw of vehicle is reached.

Figure 8:

HILS results under results at table 3.

Although there are erroneous and oscillating data from AHRS, the results in Figure 8 show that the error was below 3° and didn't diverge. Since the small error can be considered as the characteristic of MEMS and there was no accumulative error after reaching at certain yaw value, it is considered as to be proven that the developed AHRS can be implemented into real small UUV.
