Whitecap detection analysis using instance segmentation models

2.1 Anchor-Based Segmentation Models

Segmentation techniques include semantic segmentation [7][8], which distinguishes the classes of all objects in an image, and instance segmentation [9][10][11][12], which distinguishes only specific objects of classes in an image. Early segmentation directly estimates the region of ​​an object in an image. However, new models have applied an object detector. In contrast to detectors that estimate the location of an object using a bounding box, instance segmentation outputs a region in pixel units to identify the shape of an object. Similar to object detection, segmentation has two approaches, namely anchor-based [9][10] and anchor-free methods [11][12], depending on the presence or absence of an anchor. The anchor, which is the method proposed for object detection, can be used for bounding box, and the model achieves high learning efficiency by setting this anchor in advance. Mask R-CNN, a representative method of instance segmentation, is a two-stage segmentation model that is designed to enable faster segmentation by applying a parallel mask branch for mask prediction to the branch of the regressor based on the object detection model. Because these two stages are classified into object detection and semantic segmentation, each stage incorporates an independent method. This model exhibits high segmentation performance by replacing the RoI pooling method with RoIAlign to predict accurate pixel masks and resolve misalignments between features and RoIs.

TensorMask [10], a representative one-stage segmentation model that combines object detection and semantic segmentation, improves the computational speed and segmentation performance of overlapping instances by using a four-dimensional (4D) tensor for dense instance detection.

Anchor-based segmentation models can obtain stable and highly accurate results by segmenting candidate regions. However, these models are highly dependent on the anchors generated in advance, which renders the detection of significant changes in the size or ratio of an object difficult.

2.2 Anchor Free-Based Segmentation Models

Existing anchor-based segmentation models exhibit insufficient usability because of fixed-size anchors and additional parameter tuning. Therefore, anchor-free segmentation incorporates Fully Convolutional One-stage Object detection (FCOS) [13] instead of anchors that pregenerate object candidate regions. FCOS extracts feature maps of various sizes by using the Feature Pyramid Network (FPN) [14] structure. Each feature map finds the object’s center point to be detected and limits the overgeneration of candidate object regions. Because this model sets the region based on the center point, the region display standard is not the box starting point but the center point and the lengths of the left, right, top, and bottom from the center point.

CenterMask, a representative one-stage segmentation model incorporating FCOS, improves segmentation performance through a Spatial Attention-Guided Mask (SAG-Mask) and Spatial Attention Module (SAM).

Representative instance segmentation methods, such as Mask R-CNN, require ROI operations. The axis-aligned features of the existing RoIs can result in excessive computational consumption when objects in the input image exhibit irregular shapes. Conditional convolutions for instance segmentation (CondInst) [12], an anchor-free-based segmentation model, solves instance segmentation with an FCN [7]. Instead of using an ROI, in this model, a dynamic instance recognition network conditioned on instances is used such that the mask head is compact and the processing speed is fast.

3.1 Characteristics Analysis of Whitecaps

We conducted a comprehensive analysis based on the most commonly used square-shaped patches for AI detection to determine whether we could distinguish oceans and whitecaps.

Figure 1 depicts a whitecap video captured by a drone. Whitecaps, a natural phenomenon, exhibit irregular characteristics in terms of their appearance, size, and other characteristics. Furthermore, depending on weather conditions, such as light reflection, illuminance, and brightness, distinguishing the background ocean and whitecaps can be difficult. Therefore, we applied DBSCAN [15] to analyze whether white waves could be distinguished from the ocean as a single data feature.

Figure 1:

Whitecaps video image captured by a drone

Figure 2 depicts the results of applying DBSCAN to images of the ocean and whitecaps. The images were captured using a drone at 30 frame per second (FPS) for 15 s, and the camera UI and sky region were removed through preprocessing. To divide the images into small sections of the ocean and whitecaps, we divided them into 37,800 patch images using patches of 100 × 100 pixels and used them for analysis. Red dots represent ocean patches and blue dots represent patches containing whitecaps. First, the distribution of ocean patches was observed as a result of multiple clusters, and the clusters were also low in density, rendering distinguishing ocean features difficult.

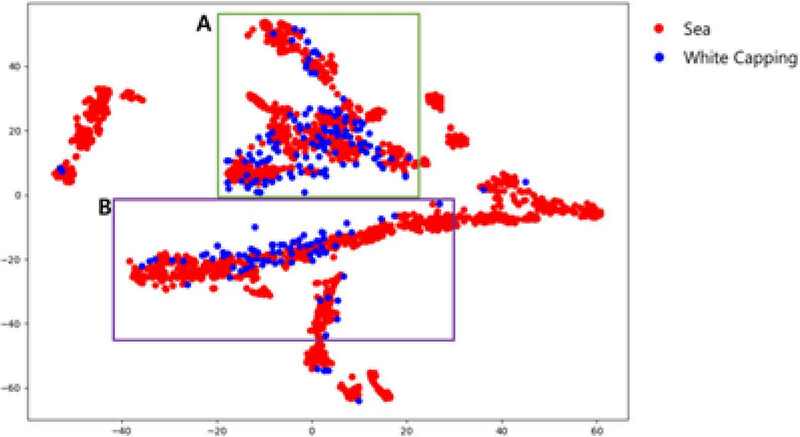

Figure 2:

Results of applying DBSCAN using patched images of the sea and whitecaps

The results of analyses have attributed this phenomenon to the color values ​​varying depending on the shooting time and location due to sea waves, differences in illuminance, among other factors. Therefore, each ocean patch shares a single characteristic. The whitecap patch (blue dot) shares some similarities with the ocean patch. Thus, distinguishing it as a characteristic unique to whitecaps is challenging. Thus, the images were visually analyzed by dividing them into regions A and B, where whitecap data distribution appeared.

Figure 3 depicts an example of the images clustered into regions A and B. (a) and (c) represent some of the ocean patches and whitecaps in cluster A, respectively. (b) and (d) represent ocean patches and whitecaps in the Cluster B region, respectively.

Figure 3:

Example of images clustered into regions A and B: (a) the ocean patch in A, (b) whitecaps patch

Among images in (a) and (c), some images are perfectly blue; however, irregular afterimages are caused by light reflection and waves. Compared with images in (b) and (d), these afterimages can be recognized as different parts with different colors. Furthermore, they have the same characteristics because of their irregularity. However, a white color patch is distinctive.

By distinguishing and cluster-white waves and the sea using DBSCAN, whitecap patches can be clustered to some extent by features such as color. However, distinguishing these from white waves when sea patches include white waves and light reflections is difficult. Thus, applying techniques such as the CNN [16] and object detection [17], which necessarily include background learning, is difficult.

This phenomenon distorts detection accuracy. Because the appearance of whitecaps always changes, standardization is difficult. However, if the background blue color is removed and only the focus is on the outer shape of the white waves, detection accuracy can be improved.

These results determined that a segmentation model that could learn the irregular shape information of whitecaps would be suitable for white-wave detection, and various models were applied.

3.2 Experimental Environment

To comparatively analyze the performances of the segmentation models, data acquisition and experimental environments were configured as follows:

Table 1 lists the composition of the dataset used for segmentation-based whitecaps. We divided the drone video into 714 learning images, 92 test images, and 214 validation images for use as a learning and performance detection dataset. A dataset was constructed using the correct answer data for each image.

Table 1:

Composition of the dataset used for segmentation-based whitecaps

To acquire the data, the drone used 0000 and filmed near the National Korea Maritime and Ocean University drone airfield, which is a nationally designated drone airspace. A GPU (NVIDIA A100 80 GB PCle × 1) was used for AI training and testing of the whitecap detection model.

3.3 Selection of Experimental Segmentation Models

We selected four instance segmentation models, rather than detection models, through experiments on the characteristics of whitecaps. Figure 4 presents a systematic table of instance segmentation models. We conducted experiments by selecting representative models for each category of instance segmentation models to evaluate the whitecap detection performance of the instance segmentation models. However, the bottom-up method was excluded from these experiments. Because the bottom-up method works well when regular features are clear, applying the method to detect whitecaps, which are irregular objects, is difficult.

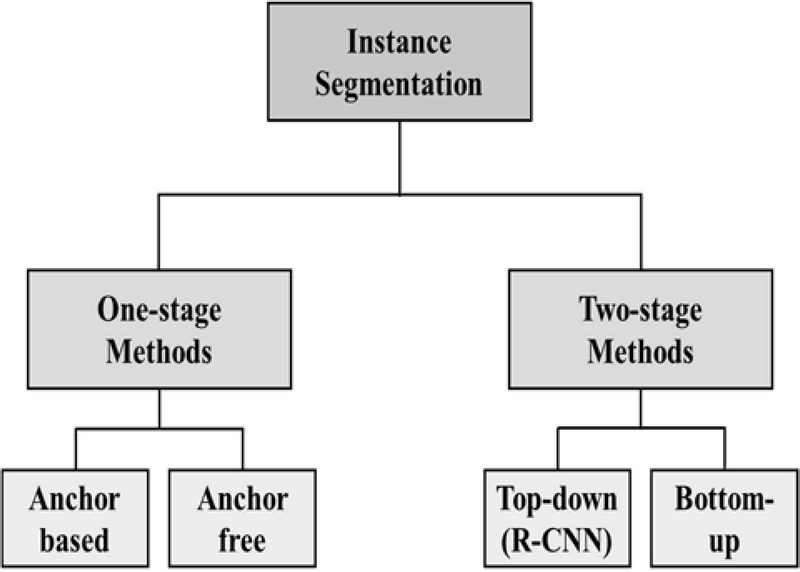

Figure 4:

Systematic table of instance segmentation models

Mask R-CNN, a representative instance segmentation model of the R-CNN series, exhibits high detection performance and fast detection speed. This model can perform detailed segmentation of candidate regions with a Region Proposal Network (RPN) by using an anchor. Furthermore, the model can be used to perform detailed object detection because the model can perform multiple tasks, including object detection, bounding box regression, and segmentation mask prediction simultaneously. Therefore, the model is suitable for small-sized whitecap detection because of its high detection performance for small objects. Furthermore, the Region of Interest alignment (RoIAlign) proposed in the Mask R-CNN model allows for a precise extraction of object boundaries and enhances adaptability to changes in the object size. These advantages can be used for whitecap detection because the model is well suited for detecting complex whitecap regions. Furthermore, because of the wide coverage of drone cameras, objects of varying sizes are captured depending on the distance. The ability of the model to handle such scale variability renders the model suitable for experimental models.

TensorMask, the proposed model for performing dense segmentation, represents masks as high-dimensional tensors that can effectively segment objects such as whitecaps, which are difficult to detect because of overlapping objects, unclear outlines, or unclear shapes. Furthermore, Tensormask’s dense sliding-window approach can be used to predict masks across the entire image area, rendering the model suitable for whitecap detection through light features mixed with the background over a large area.

CenterMask is a segmentation model based on the FCOS detector. Because FCOS is a pixel-wise prediction of objects, FCOS can effectively separate complex backgrounds from objects.

Therefore, when the background is unstable, as in the case of the ocean, it can be effective in separating the background from objects. Furthermore, the model introduces SAG-Mask for segmenting the candidate regions extracted by the detector. In the segmentation process, spatial attention was introduced to emphasize the characteristics of the objects in the region. Therefore, this spatial attention method is suitable for cases in which separating the background and object, such as whitecaps, is difficult.

Finally, unlike existing instance-segmentation models, CondInst is an FCN structure that does not generate an RoI. which is the detection result of the segmentation model. Because whitecaps have large irregularities in size and ratio, whitecap detection may not be possible if they do not fit the size and ratio of an anchor box of a prespecified size. Therefore, the structure of CondInst, which does not generate an RoI, is suitable for whitecap detection.

4.1 Experiment Result

We analyzed a suitable white-wave detection segmentation model based on the characteristics and results of the previously selected models. The whitecap detection performance of the model was evaluated by dividing it into the mean average precision (mAP), AP50, and AP75. Table 2 lists the criteria for classifying object sizes in COCO. Because the evaluation criteria for the white waves of various sizes differ depending on their sizes, the performance was analyzed by classifying them into small, medium, and large objects by applying the classification criteria of COCO.

Table 2:

Classification criteria by the object size in COCO

Tables 3 and 4 present the box and segmentation AP results for each model, respectively. In the case of the Mask R-CNN model, unlike other models that exhibit differences in detection performance by item in terms of detection accuracy by the object size,

Table 3:

Instance segmentation and detection performance: Bounding box AP

Table 4:

Instance segmentation and detection performance: Segmentation AP

AP_s, AP_m, and AP_l consistently exhibited high performance. The small whitecaps exhibit clear characteristics in small areas, and with the increase in the size, the whitecap boundary is not clear, resulting in considerable interference from the background. Therefore, Mask R-CNN and CenterMask2, which consistently recorded high performances by size, were models that could evenly respond to both characteristics. For large whitecaps, boundaries are complex and ambiguous.

Therefore, the CondInst model, including CenterMask2, can effectively detect objects with such characteristics. FCOS, an anchor-free detection model, was used to investigate the cause for this phenomenon. Unlike anchor methods such as Mask R-CNN, the FCOS model does not create an area in the form of a box, but determines the center point and subsequently estimates the area of ​​the object from the center point. Therefore, this method is effective for detecting objects such as large white waves, where accurately defining the object range is difficult.

Figure 5 depicts an example of the application of the results of the four experimental models. (a) Visualization of the learning results of the Mask R-NN model. As presented in Tables 3 and 4, white wave detection performed using photographs achieved detection performance, including small object detection. (b) is an image showing the application results of the TensorMask model. In the case of the TensorMask model, the detection and segmentation performance for small objects was poor, and the results were reflected in the visualization photographs. In this model, detection of small white waves is difficult. By contrast, large object detection achieved high detection performance, and segmentation from the background was performed well.

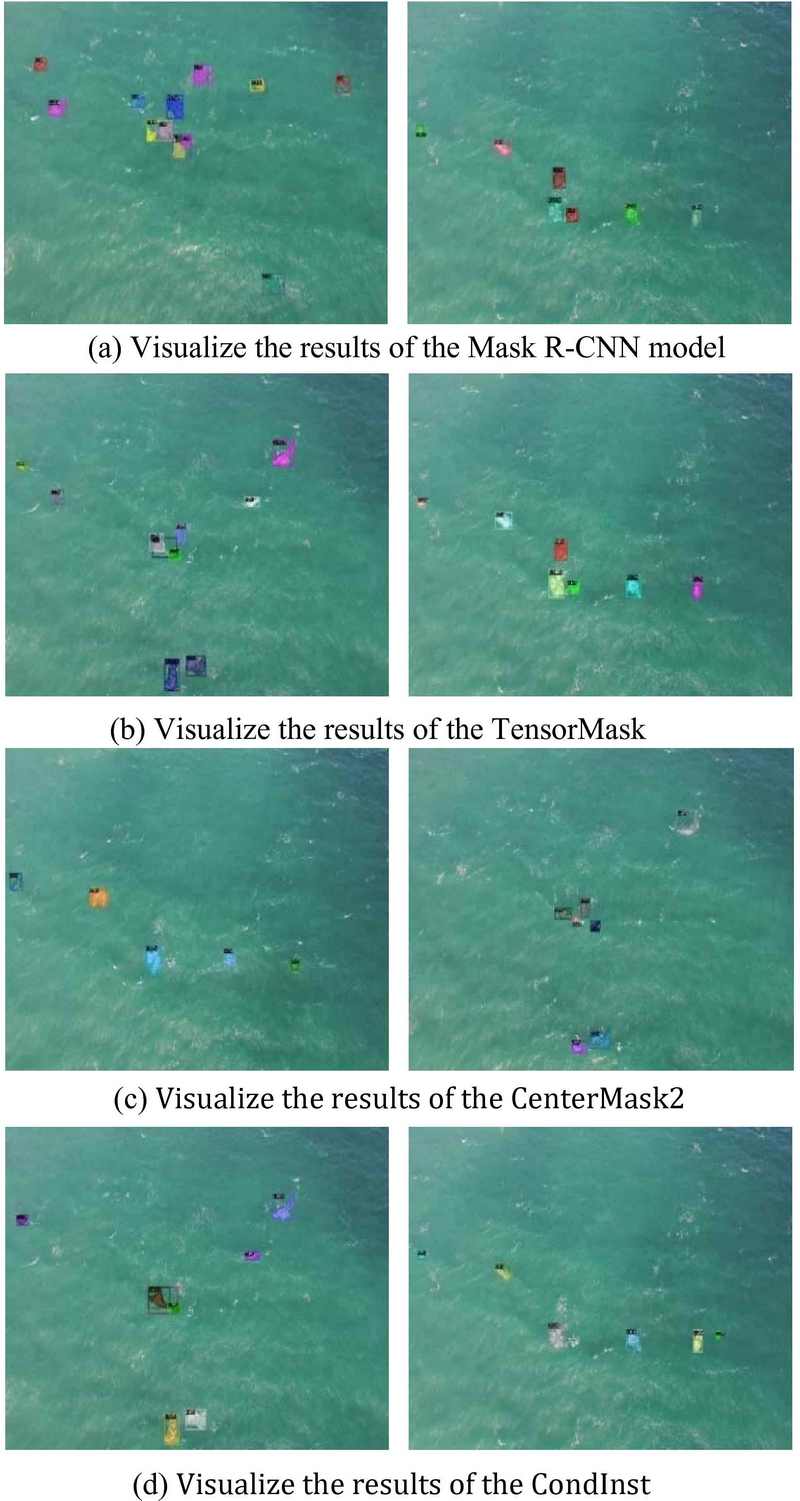

Figure 5:

Visualization images resulting from result of the segmentation model

(c) Visualization of the application results of the Centermask2 model. Centermask2 revealed the highest overall detection performance, with Mask R-CNN. The visualization results also revealed that detection was performed evenly from small to large white waves.

Here, (d) is a visualization of the application result of the CondInst Similar to the TensorMask model, the CondInst model did not perform well in detecting small objects. However, the model could detect large white waves accurately.

In terms of overall performance indicators, Mask R-CNN revealed the highest object detection performance, and CenterMask2 revealed the highest segmentation performance. Therefore, we concluded that the Mask R-CNN model is preferred when accurate object detection performance is a priority, and the CenterMask2 model is preferred when region segmentation is a priority.

Table 5 lists the detection speeds of the model. The inference time is the time required to extract results for one image, and the FPS is the number of images that can be processed per second. This value is calculated based on the average time of the entire inference time. The CondInst model achieved the fastest detection speed in the experiment, whereas the Mask R-CNN model achieved the slowest detection speed.

Table 5:

FPS and inference time per model
