Kinetics Rate Characteristics of Reformate Gas in a Reformer for Hydrogen Production

1. Introduction

As the effects of global climate change intensify, achieving zero carbon emissions has become an important goal for modern society [1]. At the 80th meeting of the International Maritime Organization’s Maritime Environment Protection Committee (MEPC) in London, England in July 2023, targets were set for decarbonization and reduction of greenhouse gas (GHG) emissions from maritime vessels [2]. To achieve the goal set for 2050, member states have agreed on the need to form a framework for intermediate measures to accelerate the energy transition in the shipping industry; to this end, it is necessary to establish sequential goals and respond to changes in the environmental regulatory paradigm, such as by expanding eco-friendly vantage and using decarbonized fuels [2].

International transport is essential to world trade, so much so that 80% of global trade in 2018 was carried out via maritime transportation [3]. Therefore, the task of implementing decarbonization in the shipping industry is becoming more crucial. Using low-carbon and zero-carbon fuels is the most effective strategy to reduce emissions from maritime vessels; however, it is very difficult to realize this immediately because of constraints such as vessel type, shipping route, demand, alternative fuels, policy, and lack of technology [4]. To achieve decarbonization in the global energy market in the future, the deployment of commercially available technologies and accessibility to low-carbon fuels are crucial; therefore, prior research on the requirements for a zero-carbon society is essential [5].

Hydrogen is a clean and renewable energy source with a high energy density and does not produce harmful emissions upon combustion; therefore, it can be considered the most effective fuel for minimizing environmental problems [6]. By generating power using hydrogen, benefits such as reduced greenhouse effect, reduced use of fossil fuels, expansion of renewable energy for energy storage, and reduced environmental pollution can be achieved [7]. Hydrogen can be produced through three main processes involving the reforming of hydrocarbon molecules from natural gas, which is a readily available fossil fuel [8]. Today, nearly 98% of hydrogen (96% in 2018) originates from fossil fuel sources via steam methane reforming (SMR) (76%) or coal gasification (22%). Only 2% of the hydrogen is produced from renewable sources, mainly through water splitting [9].

Considering the environmental impact of the production method used, hydrogen can be classified as gray, blue, or green hydrogen [10]. Gray hydrogen is produced from fossil fuels, and the process emits large amounts of CO₂ emissions. Blue hydrogen is produced in the same manner as gray hydrogen but involves reducing greenhouse gas emissions by capturing, compressing, and storing or recycling the CO₂ generated from the reforming reactions to prevent it from being released into the atmosphere. Green hydrogen is produced through water electrolysis; it is considered the most environmentally friendly hydrogen production method as it does not emit CO₂ and produces hydrogen and oxygen using electricity obtained from renewable energy sources such as hydropower, wind power, and solar power [11][12]. Owing to the high cost of green hydrogen, the production of blue hydrogen is considered an intermediate solution for transitioning to a hydrogen-based economy [13]. The methods for producing blue hydrogen include SMR, autothermal reforming, partial methane oxidation, and methane pyrolysis. SMR is the most widely used method, and simultaneous application of carbon capture technology can enable the production of low-carbon hydrogen from fossil fuels [14].

Ali and Abdullah [15] analyzed the thermodynamic performance of a reforming process involving SMR and WGS reaction for producing hydrogen from LNG using solar energy as a renewable energy source with the aim of minimizing the environmental impact. The results of this study emphasize the importance of the operating temperature for both the SMR and WGS reactions, with the energy efficiency decreasing with increasing temperature. Therefore, while higher reforming temperatures resulted in more hydrogen production, the maximum operating temperature was limited to 850°C. Furthermore, the performance of the SMR reactor significantly influenced the overall system performance. Huang and Jhao [16] tested a series of samaria-doped ceria (SDC)/Ni-Cu catalysts for SMR. The introduction of Cu into Ni significantly enhances WGS activity in the presence of CO₂, while concurrently reducing the rate of CO production. These productions were found to be quantitatively correlated with the proportion of Cu-Ni species present. Kumar et al. [17] presented simulation models for SMR and steam biogas reforming (SBR) processes to produce eco-friendly hydrogen gas and minimize the burden of fossil fuels. Yusuf et al. [18] demonstrated efficient hydrogen production from boil-off gas (BOG) generated in an onshore LNG facility through technical and socioeconomic analyses.

For convenience of transportation on vessels that run on LNG, the LNG fuel is maintained at cryogenic temperatures of approximately –163°C or lower at normal pressure. However, poor insulation of the cargo hold results in approximately 0.15% of the total fuel evaporating as BOG per day. As the LNG vaporizes due to heat loss, the volume in the tank increases, resulting in the tank pressure rapidly increasing. Therefore, for safety, it is necessary to maintain constant pressure in the tank [19]. One way to do so is to remove the BOG from the tank. Figure 1 shows methods for treating the BOG generated in an LNG cargo hold: it can be used as fuel for ship propulsion engines, re-liquified, released into the atmosphere, or burned [20]. An additional method of performing SMR to convert it into hydrogen, which can then be used in fuel cells, has been proposed.

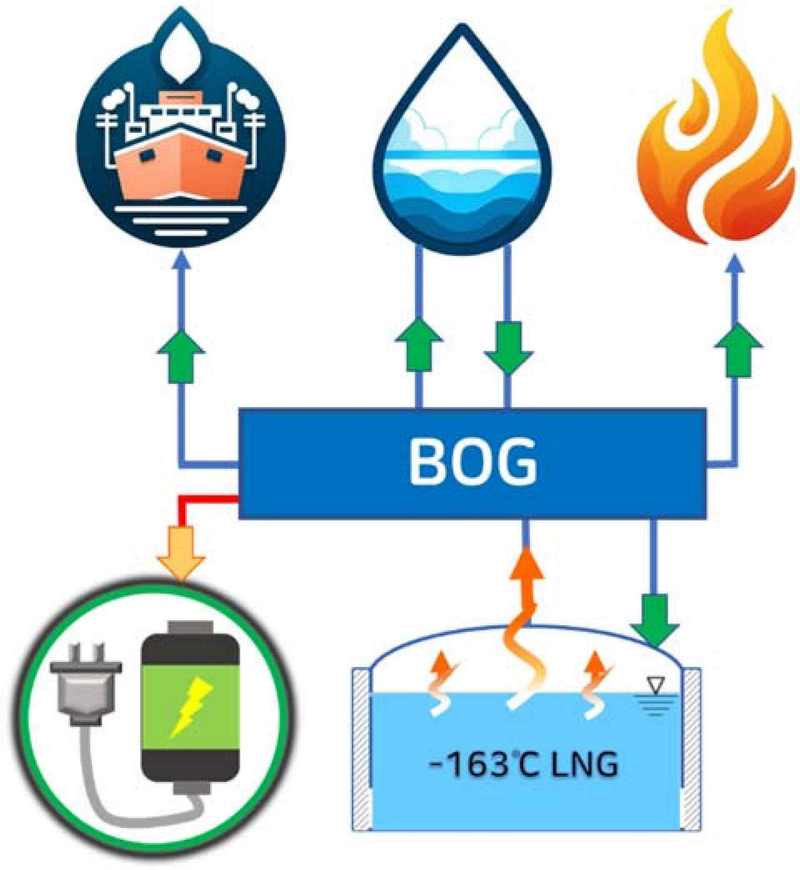

Figure 1:

Treatment of boil-off gas (BOG) generated in LNG cargo holds owing to poor insulation

In this study, a continuous reaction to be performed in SMR and WGS reactors was designed using methane, the main component of BOG generated from vessels, as the feed gas. To reduce catalyst poisoning due to efficient hydrogen reduction and CO production and to design an optimal WGS reactor, the WGS reaction mechanism was analyzed by changing variables such as the reactor temperatures and pressures and the S/C ratio.

2. Hydrogen production methods

Figure 2 shows the types of hydrogen depending on the hydrogen production method. Gray hydrogen, which is produced from fossil fuels, is produced through a catalytic chemical reaction between methane, the main component of natural gas, and high-temperature water vapor; this process emits CO₂ [21].

Figure 2:

Types of hydrogen according to production method

Blue hydrogen is produced in the same manner as gray hydrogen; however, the process includes the carbon capture system (CCS) technology, which captures and stores the generated CO₂ rather than releasing it into the atmosphere, such as what occurs when producing gray hydrogen. It is therefore highly environmentally friendly, as less CO₂ is emitted than in gray hydrogen production. Furthermore, the CCS technology is highly mature and competitive. Therefore, blue hydrogen production is attracting attention as the most realistic alternative for decarbonization.

Green hydrogen is obtained by electrolyzing water, which produces hydrogen and oxygen. The electrical energy required for this process is obtained from renewable energy sources such as solar, wind, and hydro power. Therefore, it can be considered the most environmentally friendly form of hydrogen because there are no CO₂ emissions during the production process.

3. Process Description

3.1 Proposed Process

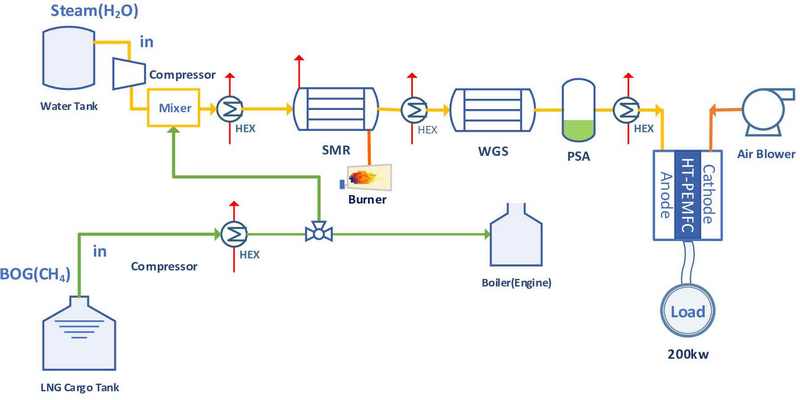

Figure 3 shows a conceptual schematic diagram for obtaining auxiliary power using hydrogen produced through an reactor in which both SMR and WGS are conducted in tandem using a fuel cell.

Figure 3:

Schematic diagram of the proposed steam–methane reforming (SMR) process

Part of the BOG generated in the LNG cargo hold is introduced into the SMR reactor at a high temperature along with steam to undergo SMR and WGS; the products are then introduced into the WGS reactor at a low temperature to reduce the CO concentration and produce additional hydrogen.

The CO₂ generated from the SMR&WGS process is captured using pressure swing adsorption (PSA); therefore, the produced hydrogen can be classified as blue hydrogen. The additional power required by the maritime vessels can be obtained from fuel cells.

3.3 Numerical Model

The model proposed by Keiski et al. [22] for estimating the change in the WGS reaction conversion rate along the length of the WGS reactor is shown in Equation (4)-(7).

$\[ \begin{array}{l}{dX}_{CO}/dL=\left(\rho \pi r^2/n_{CO}\right)k_{0}exp\left(-E/R_{g}T\right)\\ c_{CO}^{n+m}{\left(1-X_{CO}\right)}^n{\left(M-X_{CO}\right)}^m\\ \left\{1-X_{CO}^2/\left[K_{eq}\left(1-X_{CO}\right)\left(M-X_{CO}\right)\right]\right\}\end{array} \]$

(4)

$\[ \mathrm{W}\mathrm{h}\mathrm{e}\mathrm{r}\mathrm{e}\mathrm{}{c}_{CO}\left(T\right)=\left(V_{CO}{/V}_{total}\right)\left(P/R_{g}T\right) \]$

(5)

$\[ n_{CO}=V_{total}{c}_{co}\left(\mathrm{a}\mathrm{t}\mathrm{}293\mathrm{K}\right) \]$

(6)

$\[ K_{eq}=exp\left(4577.8/T-4.33\right) \]$

(7)

X_CO represents the CO conversion rate in the WGS reactor, L is the length of the WGS reactor, ρ is the bulk density of the catalyst, r is the pipe inlet diameter, n_CO is the inlet molar flow rate of CO, k₀ is the pre-exponential factor, k_eq is the equilibrium constant, E is the activation energy, R_g is the gas constant, c_CO is the concentration of CO, V_CO is the inlet volumetric flow rate of CO, and V_total is the total inlet volumetric flow rate. In addition, to determine the index value, it was assumed that the ICI–CuZnO/Al₂O₃ catalyst was used. Parameters for the process design are shown in Table 1.

Table 1:

Initial conditions for the SMR and WGS process

4. Results and Discussion

Figure 4 shows the change in CH₄ conversion and S/C ratio according to the SMR reactor length when the SMR pressure and temperature are 3 bar 750°C, respectively. CH₄ converted rapidly within a SMR reactor length of 0.1 m. At S/C ratios of 2 and 6, the equilibrium conversion was 0.85 and 0.82, respectively; therefore, the difference in CH₄ conversion due to an increase in the S/C ratio was less than 3%. Note that while the CH₄ conversion rate increased with increasing S/C ratio, the speed of CH₄ conversion became slower. The SMR reactor length required for the CH₄ conversion rate to reach an equilibrium state was 0.607 m when the S/C ratio was 2 and 1.477 m when the S/C ratio was 6; the reactor length required to achieve equilibrium increased by approximately 2.43 times.

Figure 4:

CH4 conversion at the SMR reactor outlet according to the SMR reactor length and S/C ratio

Figure 5 shows the CO conversion according to the WGS reactor length and S/C ratio when the pressure of the SMR reactor was 3 bar and the temperatures of the SMR and WGS reactors were 750°C and 160°C, respectively. CO converted rapidly within a WGS reactor length of 0.3 m. At S/C ratios of 2 and 6, the CO conversion was 0.735 and 0.695, respectively; that is, the difference in CO conversion owing to the increase in S/C ratio was less than 4%. Regardless of the S/C ratio increasing or decreasing, there was little difference in the CO conversion rate reaching equilibrium or the WGS reactor length.

Figure 5:

CH4 conversion at the water–gas shift (WGS) reactor outlet according to the WGS reactor length and S/C ratio

Figure 6 shows the CH₄ conversion according to the SMR reactor length and temperature when the SMR pressure was 3 bar and the S/C ratio was 3. CH₄ conversion underwent a sharp increase within a SMR reactor length of 0.1 m. As the temperature was increased from 600°C to 900°C, the CH₄ conversion increased significantly from 0.1 to 0.96. Therefore, as the temperature increased, not only did the rate of CH₄ conversion accelerate, but high CH₄ conversion could be obtained. For the CH₄ conversion to reach equilibrium, the length of the SMR reactor had to be decreased with increasing temperature, from 0.937 m at 600°C to 0.182 m at 900°C.

Figure 6:

CH4 conversion at the SMR reactor outlet according to the SMR reactor length and temperature

Figure 7 shows the CO conversion according to the WGS reactor length and SMR temperature when the WGS pressure and temperature were 3 bar and 160°C, respectively. CO rapidly converted within a WGS reactor length of 0.3 m. When the SMR temperature was increased from 600°C to 900°C, the CO conversion decreased from 0.81 to 0.715; that is, when the SMR temperature was increased by 300°C, the CO conversion decreased by approximately 10%. Furthermore, with this increase in SMR temperature, the length of the WGS reactor increased by approximately 1.8 times, from 0.93 m to 1.66 m.

Figure 7:

CO conversion at the WGS reactor outlet according to the WGS reactor length and SMR temperature

Figure 8 shows the CO conversion rate according to the WGS reactor length and WGS temperature when the pressure of the WGS reactor was 3 bar. CO rapidly converted at the beginning of the reaction. As the WGS temperature increased, the CO conversion at which the WGS reaction reached equilibrium decreased. Furthermore, with an increase in WGS temperature from 160°C to 250°C, the WGS reactor length required to reach equilibrium significantly decreased from 1.51 m to 0.15 m.

Figure 8:

CO conversion at the WGS reactor outlet according to the WGS reactor length and temperature

Figure 9 shows the CH₄ conversion according to the SMR reactor length and pressure change when the SMR temperature was 750°C and S/C ratio was 3. As the pressure increased, the final CH₄ conversion decreased, and the SMR reactor length required to reach the reforming equilibrium state decreased from 2.56 m at 1 bar to 1.43 m at 2 bar, 0.8 m at 3 bar, 0.68 m at 5 bar, and 0.013 m at 30 bar.

Figure 9:

CH4 conversion at the SMR reactor outlet according to the SMR reactor length and pressure

Figure 10 shows the CO conversion according to the WGS reactor length and pressure change when the SMR temperature was 750°C, S/C ratio was 3, and WGS temperature was 160°C. As the pressure increased from 1 to 30 bar, the CO conversion at which the WGS reaction reached equilibrium decreased by 53% from 0.99 to 0.52. Additionally, as the pressure increased, the WGS reactor length required to reach equilibrium decreased from 4.4259 m at 1 bar to 1.12 m at 4 bar, 0.41 m at 10 bar, and 0.11 m at 30 bar.

Figure 10:

CO conversion at the WGS reactor outlet according to the WGS reactor length and pressure

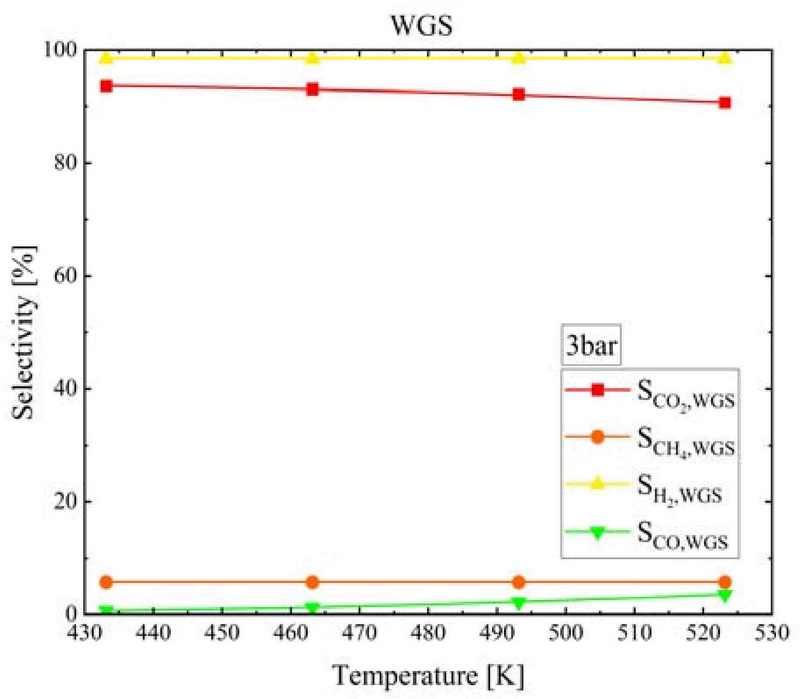

Figure 11 shows the selectivities for CH₄, CO, CO₂, and H₂ (S_CH4, S_CO, S_CO2, and S_H2, respectively) at the WGS reactor outlet with respect to the WGS temperature at a pressure of 3 bar. As the temperature increased from 160°C to 250°C, S_CH4 remained unchanged at 5.72%, S_CO increased from 0.61% to 3.55%, S_CO2 decreased from 93.7% to 90.7%, and S_H2 exhibited almost no change at 98.5%.

Figure 11:

Selectivities for CH4, CO, CO2, and H2 at the WGS reactor outlet according to the WGS temperature

Figure 12 shows the S_CH4, S_CO, S_CO2, and S_H2 values at the WGS reactor outlet based on the SMR&WGS pressure when the pressure was 3 bar. As the pressure increased, S_CH4 increased from 0.79% to 47.23%, S_CO from 0.74% to 0.11%, S_CO2 from 98.5% to 52.65%, and S_H2 from 99.8% to 81.7%.

Figure 12:

Selectivities for CH4, CO, CO2, and H2 at the WGS reactor outlet according to the pressure

Figure 13 shows the S_CH4, S_CO, S_CO2, and S_H2 values at the WGS reactor outlet according to the S/C ratio at a pressure of 3 bar. As the S/C ratio increased, S_CH4 decreased from 13.1% to 0.88%, S_CO decreased from 2.03% to 0.19%, S_CO2 decreased from 84.9% to 98.9%, and S_H2 increased from 96.4% to 99.8%.

Figure 13:

Selectivities for CH4, CO, CO2, and H2 at the WGS reactor outlet according to the S/C ratio

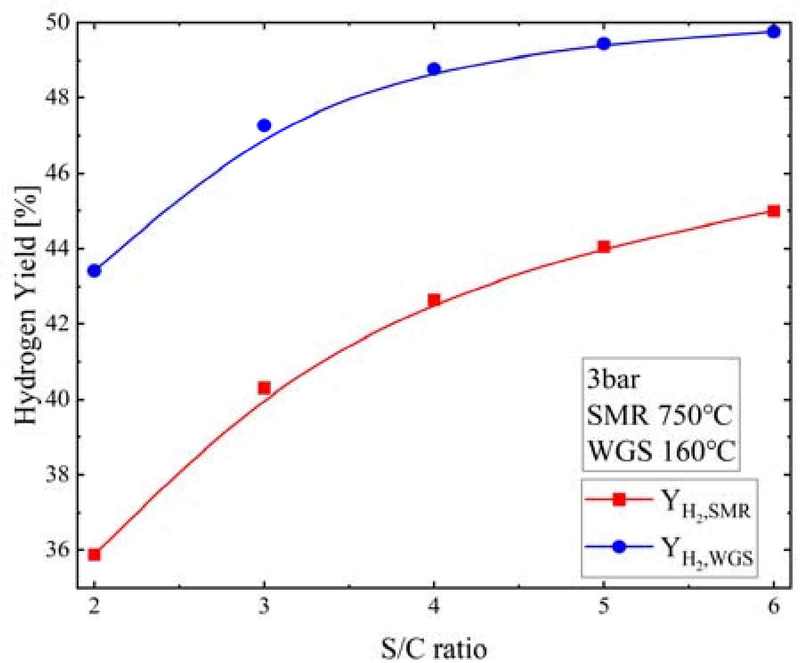

Figure 14 shows the hydrogen yields at the SMR and WGS reactor outlets (Y_H2,SMR and Y_H2,WGS, respectively) according to the S/C ratio when the pressure was 3 bar, SMR temperature was 750°C, and WGS temperature was 160°C. As the S/C ratio increased, the Y_H2,SMR increased from 35.9% to 45.0% and the Y_H2,WGS increased from 43.4% to 49.8%.

Figure 14:

Hydrogen yields at the SMR and WGS reactor outlets according to the S/C ratio

Figure 15 shows the Y_H2,SMR and Y_H2,WGS according to pressure when the S/C ratio was 3, SMR temperature was 750°C, and WGS temperature was 160°C. As the pressure increased, the Y_H2,SMR decreased from 42.2% to 23.8% and the Y_H2,WGS decreased from 49.7% to 26.5%.

Figure 15:

Hydrogen yields at the SMR and WGS reactor outlets according to pressure

Figure 16 shows the Y_H2,SMR and Y_H2,WGS according to the SMR temperature when the S/C ratio was 3, SMR pressure and temperature were 3 bar and 750°C, respectively, and WGS temperature was 160°C. As the SMR temperature increased, the Y_H2,SMR increased from 26.4% to 41.3%, though it decreased slightly to 41.1%, while the Y_H2,WGS increased from 28.3% to 50.0%.

Figure 16:

Hydrogen yield at the WGS reactor outlet according to the SMR temperature.

Figure 17 shows the Y_H2,SMR and Y_H2,WGS at the WGS reactor outlet according to the WGS temperature when the S/C ratio was 3 and the SMR pressure and temperature were 3 bar and 750°C, respectively. As the WGS temperature increased, Y_H2,SMR did not change and remained at 40.3%, while Y_H2,WGS decreased from 47.3% to 46.9%.

Figure 17:

Hydrogen yield at the WGS reactor outlet according to the WGS temperature.

5. Conclusion

• 1. As the S/C ratio and SMR temperature increased, the CH₄ conversion in the SMR reactor increased. In contrast, in the WGS reactor, as the S/C ratio decreased, the CO conversion increased; however, when the S/C ratio was in the range 2–6, the CO conversion changed by less than 4%. Meanwhile, as the temperature decreased and pressure increased in the WGS reactor, the CO conversion increased.
• 2. As the pressure in the SMR reactor increased, the CH₄ conversion decreased; however, the SMR reactor length required to reach equilibrium conversion decreased. In the WGS reactor, as the pressure increased, the CO conversion increased, and the WGS reactor length required for the WGS reaction decreased.
• 3. Compared with the increase in CH₄ conversion with the SMR temperature, the change in CO conversion with the WGS temperature was not significant.
• 4. The simultaneous SMR and WGS process in the SMR reactor exhibited a high CO conversion at the SMR reactor inlet regardless of the reaction temperature or pressure.
• 5. The S_CO, S_CO2, S_H2, and S_CH4 values at the WGS reactor outlet changed by less than 5% with changing temperature. As the WGS temperature increased, the equilibrium CO conversion decreased, but the CO conversion rate increased rapidly near the WGS reactor inlet; therefore, the required length of the WGS reactor decreased. Additionally, as the pressure increased, S_CO, S_CO2, and S_H2 decreased, but the reaction period was short. Therefore, the WGS reactor length could be designed to be short.
• 6. As the pressure at the WGS reactor outlet increased, the hydrogen yield (Y_H2,WGS) decreased, but was still larger than that at the SMR reactor outlet (Y_H2,SMR).

Based on the above findings, we plan to continue our research to size the WGS reactor such that it can be installed on maritime vessels and design the optimal operating point depending on the effects of changes in the temperature, pressure, and S/C ratio of the SMR and WGS reactors.

Author Contributions

Conceptualization, D. H. Hwang; Methodology, D. H. Hwang; Software, D. H. Hwang; Formal Analysis, D. H. Hwang; Investigation, Y. S. Choi; Resources, T.W.Lim; Data Curation D. H. Hwang; Writing-Original Draft Preparation, D. H. Hwang; Writing-Review & Editing, T.W.Lim; Visualization, Y. S. Choi; Supervision, T.W.Lim;
