Effects of dynamic injection pressures on spray, combustion, and exhaust emission characteristics in a CRDI diesel engine with naval vessel fuel

Hyungmin Lee ; Hyun Min Baek1
1LCDR, Naval Remote Maintenance Service Team, Republic of Korea Naval Shipyard, Jinhae, Tel: 055-919-2290 jeapo2812@naver.com

Correspondence to: Professor, Department of Navigation and Ship Handling System, Republic of Korea Naval Academy, (51704) Box 88-1, Jinhaegu, Changwonsi, Kyungsangnmdo, Korea, E-mail: hmsj1226@naver.com, Tel: 055-907-5230

Copyright © The Korean Society of Marine Engineering
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0), which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

This study focuses on the experimental analysis of the effects of dynamic injection pressures on diesel engine spray, combustion, and emission characteristics. Increasing the fuel injection pressure shortens the fuel injection delay and overall fuel injection duration. A higher fuel injection pressure increases the spray tip penetration. Increasing the fuel injection pressure increased the peak in-cylinder pressure, peak rate of pressure increase, peak rate of heat release, and peak gas mean temperature. As the in-cylinder pressure and rate of heat release increased, the indicated mean effective pressure tended to increase. A higher fuel injection pressure shortens the ignition delay, advances combustion phasing, and shortens the overall combustion duration. As the indicated mean effective pressure and rate of heat release increase, the fuel conversion and combustion efficiency tend to improve. Increasing the fuel injection pressure led to an increase in the ringing intensity. At higher fuel injection pressures, the combustion noise level tends to increase. As the fuel injection pressure increases, CO, CO2, and HC emissions decrease. However, increasing the fuel injection pressure contributed to an increase in the gas mean temperature and rate of heat release, which leads to greater NOx emissions.

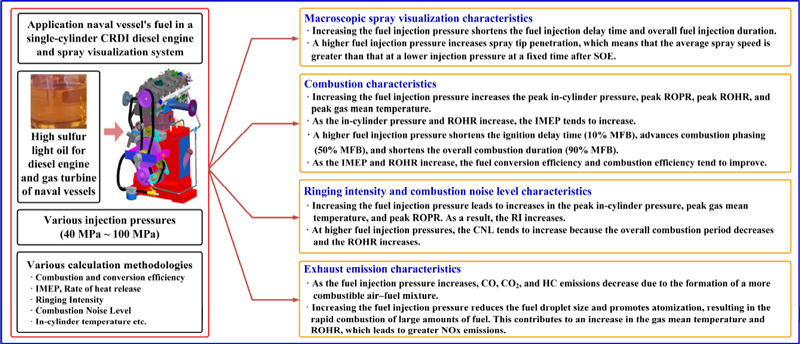

Graphical Abstract:

Keywords:

Dynamic injection pressure, Spray, Combustion, Emission

1. Introduction

Much research has been conducted on fuel injection systems to improve diesel engine performance and reduce emissions. Electronic injectors and common rail systems for diesel engines have dramatically improved fuel injection techniques, contributing significantly to greater fuel efficiency, improving performance, and reducing emissions. Improvements in the fuel injection system of diesel engines have led to various controllable injection factors such as fuel injection timing, injection method (e.g., multistage), and fuel injection pres-sure. In diesel engines, fuel injection pressure variation is a key factor that significantly affects combustion quality, engine performance, fuel efficiency, and emissions as well as engine noise and vibration characteristics. In particular, it has a strong influence on combustion parameters such as ignition delay, in-cylinder pressure, ROPR, and ROHR, including spray characteristics. In general, an increase in the fuel injection pressure shortens the ignition delay, thereby increasing the peak in-cylinder pressure, peak ROPR, and peak ROHR. In addition, a higher injection pressure increases turbulent kinetic energy and decreases the size of fuel droplets, thereby promoting atomi-zation. Therefore, a superior air-fuel mixture forms at a faster rate, shortening the ignition delay is shorter. This phenomenon leads to rapid burning of the injected fuel at the beginning of combustion, that is, during the premixed combustion period, and has a significant impact on engine noise and vibration levels [1]-[4].

The fuel injection pressure also affects exhaust emission levels from diesel engines. As the fuel injection pressure increases from low to high, CO and HC emissions are generally reduced because more combustible mixtures are formed. However, in the case of NOx emissions, which are sensitive to combustion temperature, an increase in the fuel injection pressure has a negative effect on NOx reduc-tion because it increases the ROHR [1][5][6].

The purpose of this study was to experimentally analyze the effect of dynamic fuel injection pressures (40 MPa ~100 MPa, 10 MPa units) on the spray, combustion, and emission characteristics. The spray characteristics-injection delay, spray tip penetration, and spray average speed-were analyzed from recorded spray images. In the combustion investigation, combustion parameters with dynamic injec-tion pressures were calculated by applying the in-cylinder pressure and various theoretical methods. In addition, various emissions, such as HC, CO, CO2, and NOx, were analyzed with fuel injection pressures. A single-cylinder CRDI diesel engine was used for the experi-ment. For spray visualization, the fuel injection pressure was varied in the CVC connected to the test engine, and fuel was supplied from the common rail of the test engine.


2. Experimental System

2.1 Experimental Setup

Figure 1 shows the experimental devices used to analyze the effect of the fuel injection pressure on the spray, combustion, and ex-haust emission characteristics of a diesel engine.

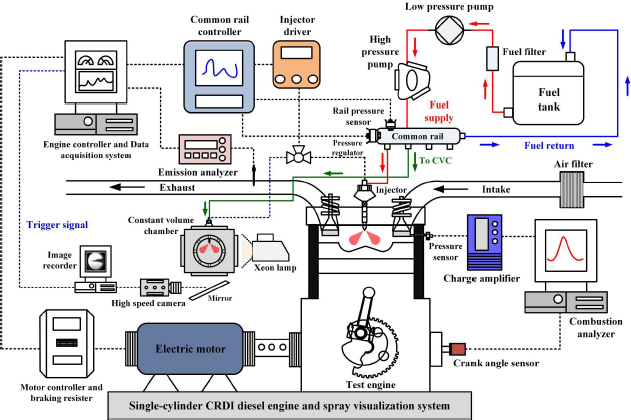

Figure 1:

Schematic illustration of the experimental system

A single-cylinder diesel engine with a high-pressure injection system and a common rail system that can precisely control fuel pres-sure was used in this study and was equipped with a solenoid-driven injector. The main specifications of the single-cylinder diesel en-gine used in this study are summarized in Table 1.

Specifications of the test engine

Various devices were constructed for this study. The engine speed was constantly controlled by an electric motor. A spray visualiza-tion system was connected to the test engine, and the tests were performed under the same conditions.

Table 2 lists the main functions of the various components to provide a comprehensive illustration of the experimental setup used in this study.

Function of the main devices for the experimental system

2.2 Experimental Conditions and Test Fuel

In this study, pilot injection was not applied to analyze the effects of fuel pressure injection on the combustion and exhaust emission characteristics.

The fuel injection timing was fixed at BTDC4 CA, and the fuel injection pressure was changed in 10 MPa intervals from 40 MPa to 100 MPa. In the fuel injection pressure variation test, the engine speed was fixed at 1000 rpm.

An experimental investigation was conducted with the fuel injection amount set to 15 mg, and when the injection pressure was changed, the ET was adjusted to maintain a constant fuel injection mass. The in-cylinder pressure was averaged by measuring 500 cy-cles.

The ROPR, ROHR, IMEP, and combustion parameters were calculated using the measured cylinder pressure. To analyze the spray characteristics resulting from changes in the fuel injection pressure under the same conditions, the fuel supply system was directly con-nected to the test engine. The test fuel used in the naval vessels was high-sulfur diesel.

The main physicochemical properties of the test fuel are presented in Table 3. Table 4 indicates the test conditions used to conduct this research.

Physiochemical properties of the naval vessel fuel

Experimental conditions

2.3 Methodologies for Combustion Parameter, RI, and CNL Analysis

In this study, indicators representing combustion parameters and engine performance were calculated by analyzing the measured in-cylinder pressure. In particular, the MFB was predicted using the ROHR by analyzing the measured in-cylinder pressure.

To analyze the vibration state of the engine according to changes in the fuel injection pressure, an RI analysis methodology was ap-plied without using a measuring device. The RI is a metric calculated using the peak in-cylinder pressure, the peak GMT, and the peak ROPR.

Table 5 shows various equations for analyzing the combustion parameters and the RI and CNL characteristics according to the fuel injection pressure. To quantify the RI, the ROPR considering the change in CA was calculated as a function of time.

Combustion parameter and RI analysis methodologies

Additionally, in this paper, the peak ROHR, combustion duration, and statistical analysis were used to quantitatively evaluate the CNL characteristics [9]-[12].


3. Results and Discussions

3.1 Macroscopic Spray Characteristics at Different Injection Pressures

Figure 2 depicts the definition of the STP used to analyze macroscopic spray characteristics at different fuel injection pressures.

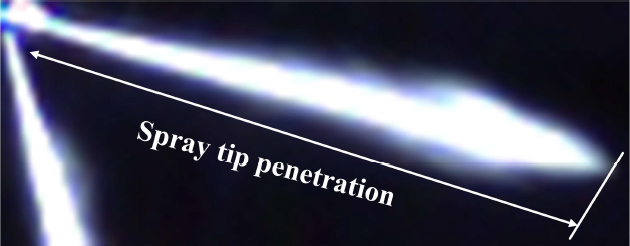

Figure 2:

Definition of spray tip penetration

The STP related to various injection pressures was defined as the distance from the nozzle tip of the injector to the spray tip boundary. The distance of the STP indicated in Figure 2 was determined by converting the size of one pixel from the acquired image to a scale of 1 mm.

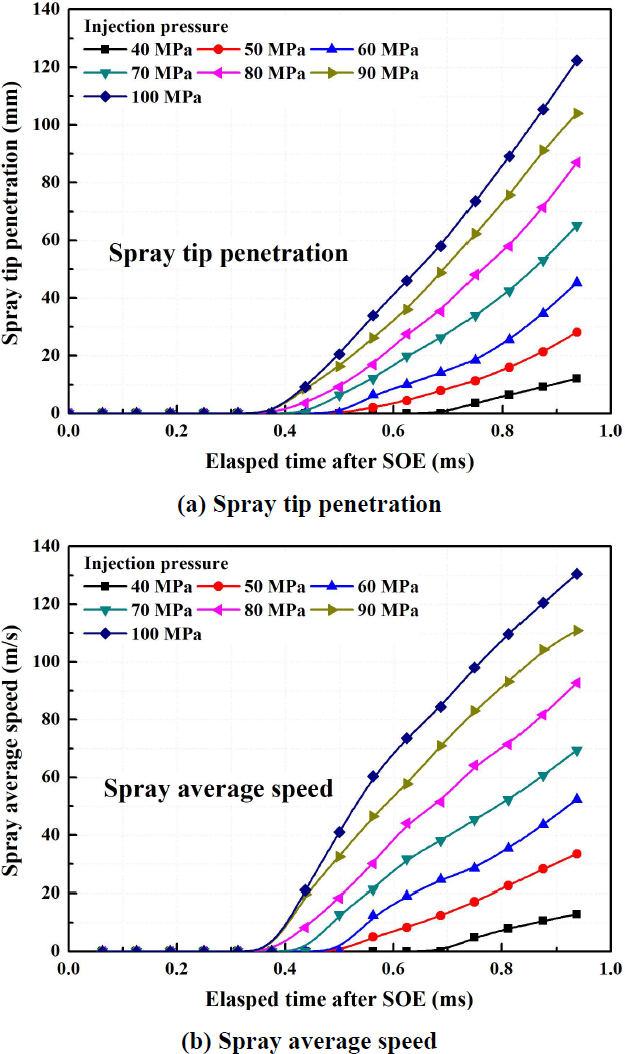

Figure 3 shows the STP (a) and spray average speed (b) simulated with the STP at various fuel injection pressures. The higher the fuel injection pressure was, the faster the SOI and the longer the STP in the same period after the SOE. In particular, at the time when the spray was fully developed (0.9375 ms) at 100 MPa, the spray reach at 100 MPa was approximately 110 mm greater than that at 40 MPa.

Figure 3:

Spray tip penetration (a) and spray average speed (b) at various injection pressures

At the same atmospheric pressure, the higher the injection pressure was, the greater the momentum of the fuel droplets sprayed from the injector nozzle. The higher the momentum of the sprayed fuel particles was, the faster their relative speed with respect to the air. In addition, increasing the injection pressure increased the Reynolds number, which resulted in an increase in the fuel flow coefficient.

Therefore, both the spraying velocity of the fuel injected from the nozzle tip and the average spraying speed in the same period in-creased [13]-[16].

Figure 4 shows the ET, injection delay, and injection duration results under the same fuel injection conditions at different fuel injec-tion pressures.

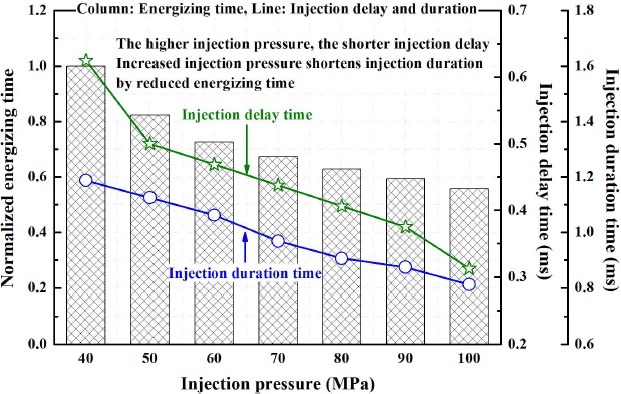

Figure 4:

Injection delay and duration at different injection pressures

The ET of the injector had to decrease to ensure that the fuel mass was the same because the initial injection amount increased signifi-cantly as the fuel injection pressure increased. Therefore, as the ET of the injector decreased, the fuel injection duration also decreased.

The injection delay time tended to decrease as the fuel injection pressure increased. The higher the fuel injection pressure was, the lower the compressibility of the fuel; as a result, a higher pressure formed in the injector control chamber, which lifted the needle valve faster, reducing the injection delay time [13][17].

An image showing spray characteristics at various fuel injection pressures displayed in Figure 5.

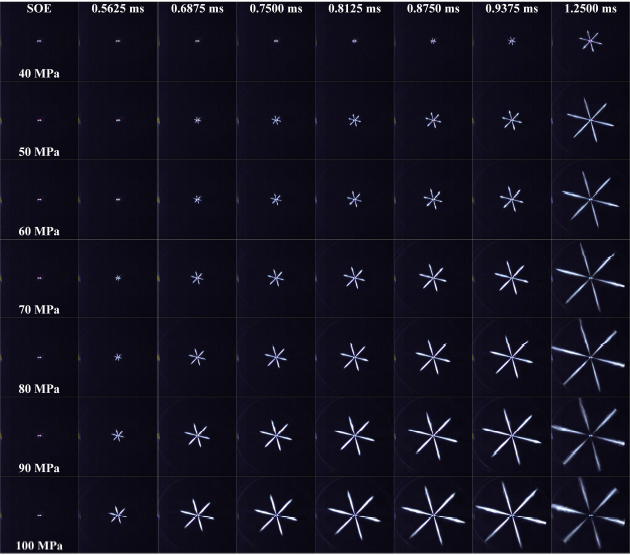

Figure 5:

Spray characteristics at various injection pressures

As shown in Figure 5, spray visualization confirmed that the STP increased as the fuel injection pressure increased, and the injection delay became shorter in the same period.

The spray characteristics confirmed through the macroscopic spray visualization are summarized in Table 6. As the fuel injection pressure increased, the STP became longer in the same period, and the injection delay became shorter.

Analysis of macroscopic spray visualization

To inject the same fuel mass as the fuel injection pressure increased, the ET of the injector had to decrease, and the fuel injection dura-tion shortened accordingly.

3.2 Combustion Parameter Characteristics at Various Injection Pressures

Figure 6 shows the effects of various fuel injection pressures on the in-cylinder pressure, ROHR, and ROPR. As the fuel injection pressure was increased from low pressure to high pressure, the in-cylinder pressure, ROHR, and ROPR increased.

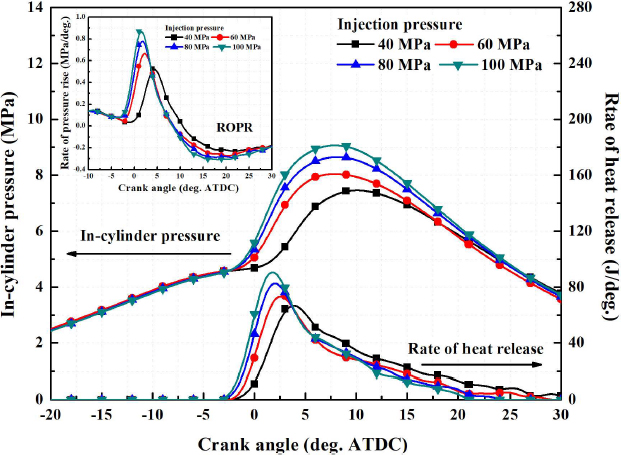

Figure 6:

In-cylinder pressure, ROHR, and ROPR characteristics at different injection pressures

Considering the constant fuel injection timing (BTDC4 CA), Figure 6 shows that as the fuel injection pressure increased, the position of the peak in-cylinder pressure, peak ROHR, and peak ROPR shifted toward the TDC.

This means that at higher injection pressures, a large amount of the initial fuel injected was burned during the premixed combustion phase. In addition, a higher injection pressure promotes fuel atomization, allowing evaporated fuel to be evenly distributed inside the combustion chamber. Therefore, it improved the initial premixed combustion and promoted combustion quality.

Figure 7 shows the peak in-cylinder pressure, peak ROPR, and peak ROHR at various fuel injection pressures.

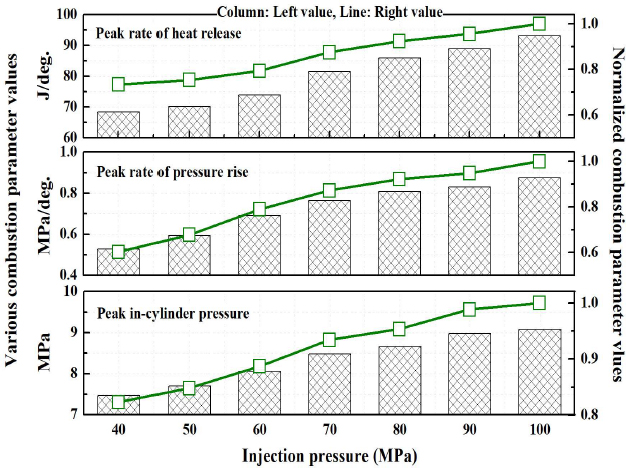

Figure 7:

Peak in-cylinder pressure, ROPR, and ROHR characteristics at different injection pressures

The results confirmed that increasing the fuel injection pressure caused an increase in three combustion parameters. This occurred be-cause, as shown in Figure 6, the intensity of the premixed combustion increased as a large amount of fuel was injected at a high injec-tion pressure.

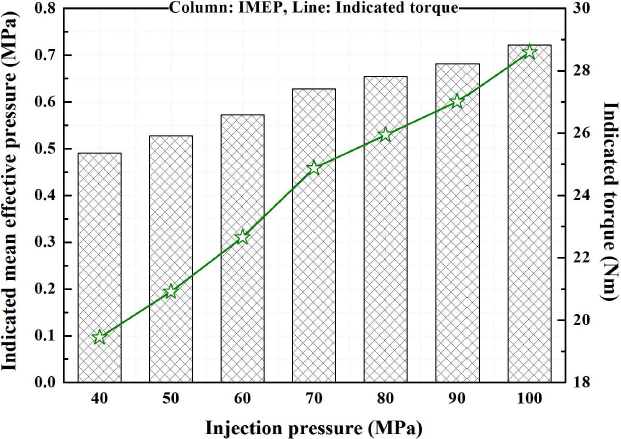

Figure 8 shows the effect of fuel injection pressure on the IMEP. Additionally, the indicated torque was calculated using Equation (4) in Table 5. The IMEP and indicated torque increased as the fuel injection pressure increased. Under the same injection timing condi-tions, a higher injection pressure promoted fuel atomization and resulted in the formation of a better mixture.

Figure 8:

IMEP and indicated torque characteristics at various injection pressures

This phenomenon shortened the ignition delay time, improved the premixed combustion, and increased the ROHR. Therefore, the IMEP, an index of combustion performance, became even higher as the fuel injection pressure increased, and the indicated torque, which is proportional to the IMEP, also increased.

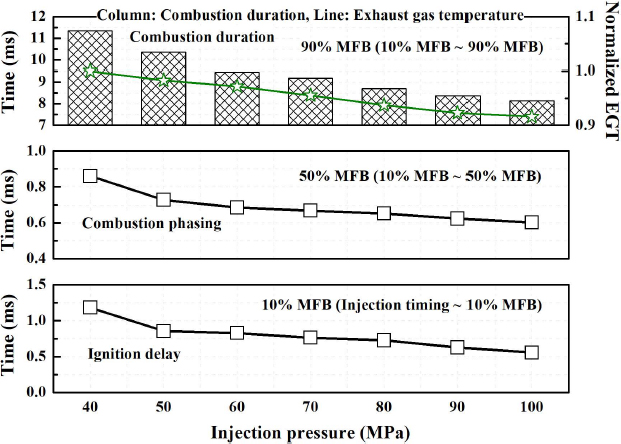

Figure 9 represents the MFB characteristics according to the fuel injection pressure.

Figure 9:

Mass fraction burned and EGT characteristics at various injection pressures

The 10% MFB, traditionally defined as the ignition delay, tended to become shorter as the fuel injection pressure increased. Increas-ing the fuel injection pressure enhances the turbulent kinetic energy. In addition, the smaller the SMD of the fuel was, the greater the reduction in the fuel particle size. The decreased SMD of the fuel promoted the evaporation of the injected fuel. Consequently, a com-bustible air-fuel mixture was rapidly generated, and the ignition delay time was shortened. The overall fuel atomization condition was improved, and a combustible mixture was quickly formed; thus, the combustion rate increased and the combustion duration became shorter [18]-[20].

The 50% MFB, representing the combustion phase, also tends to decrease as the fuel injection pressure increases, implying that pre-mixed combustion occurred rapidly owing to the short ignition delay of the large amount of fuel injected. Moreover, as the fuel injection pressure increased, the reduction in the ET of the injector contributed to a decrease in the fuel injection duration. A high ROHR at the beginning of the combustion phase leads to a reduction in the overall combustion duration and exhaust gas temperature.

Figure 10 shows the fuel conversion and combustion efficiencies calculated according to the fuel injection pressure using Equation (5) and (6) in Table 5.

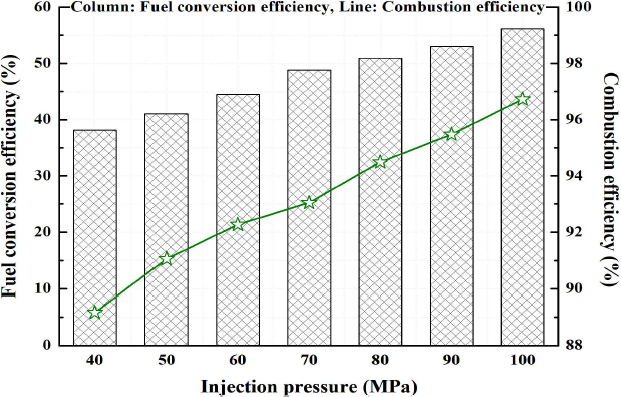

Figure 10:

Fuel conversion efficiency and combustion efficiency characteristics at various injection pressures

As the fuel injection pressure increased, the fuel conversion efficiency improved because the indicated work, which is proportional to the IMEP, increased. The ROHR during the premixed combustion period was close to that of TDC, providing additional work for the piston during the expansion stroke. Under higher injection pressure conditions, fuel atomization occurred faster, resulting in accelerated air-fuel mixing inside the combustion chamber and the rapid formation of a homogeneous mixture.

Accordingly, the ignition delay time decreased, the intensity of premixed combustion increased, and the ROHR rapidly increased. The combustion efficiency also improved with increasing ROHR and combustion quality under high injection pressure conditions.

Figure 11 shows the RI and CNL characteristics under various fuel injection pressure conditions. The RI, used to quantitatively eval-uate the intensity of knocking caused by combustion, is closely related to engine vibration and noise. The RI of 5 MW/m2 is assumed in this study [21].

Figure 11:

RI and CNL characteristics at various injection pressures

According to Equation (7) in Table 5, the RI is proportional to the peak GMT and time-based peak ROPR and inversely proportion-al to the peak in-cylinder pressure. An increase in the fuel injection pressure caused the RI to increase.

As mentioned earlier, due to greater premixed combustion intensity and excellent combustion quality, the peak in-cylinder pressure, peak ROPR, and peak mean gas temperature increase as the fuel injection pressure increases from low to high injection pressure. To evaluate the CNL based on the fuel injection pressure, the overall combustion duration and peak ROHR from Equation (8) were ap-plied in this study [8][11].

As the fuel injection pressure increased, a homogeneous mixture rapidly formed, shortening the ignition delay, and the large amount of fuel injected during the short fuel injection duration increased the intensity of the premixed combustion.

Therefore, the overall combustion period became shorter, and the peak ROHR increased; thus, the CNL also tended to increase. The combustion parameters at various fuel injection pressures are listed in Table 7. All combustion parameters, except MFB, such as igni-tion delay, combustion phasing, and combustion duration, increased as the fuel injection pressure increased from low to high injection pressure.

Combustion parameters

3.3 Exhaust Emission Characteristics under Various Injection Pressures

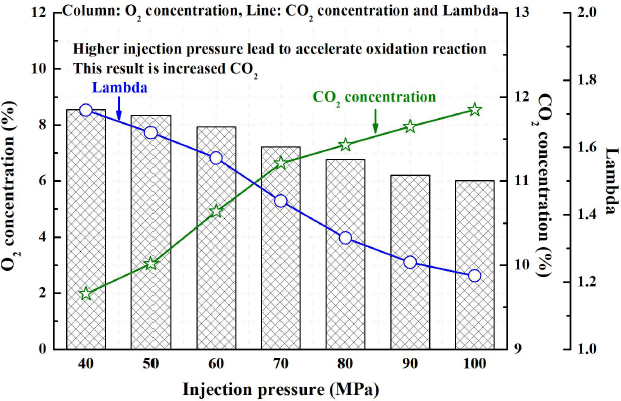

Figure 12 shows the O2, CO2, and lambda(λ) characteristics at various fuel injection pressures.

Figure 12:

O2, CO2, and lambda (λ) characteristics with various injection pressures

As the fuel injection pressure increased, the O2 concentration in the exhaust gas decreased, whereas the CO2 concentration increased. Increasing the fuel injection pressure promoted fuel atomization; moreover, considering a combustible mixture was quickly formed, the intensity of oxidation during the combustion process increased significantly.

Therefore, the O2 concentration in the exhaust gas was reduced owing to rapid oxidation reactions. Active oxidation improves the MFB of the injected fuel; therefore, the CO2 emissions increase as the fuel injection pressure increases. Additionally, oxidation becomes more complete as the fuel injection pressure increases; thus, so lambda matches the stoichiometric values.

The main causes of HC formation during the combustion process of a diesel engine are the trapping of injected fuel in the crevices of the combustion chamber, incomplete oxidation of fuel at low temperatures, non-vaporized fuel films on walls, and local combustion of lean and rich mixtures in the combustion chamber. CO primarily forms by the combustion of extremely lean or rich mixtures.

When an overly lean mixture burns, flame propagation does not occur throughout the mixture, and thermal decomposition of the fuel occurs owing to partial oxidation, resulting in the emission of CO and HC.

In the case of an overly rich mixture, sufficient time is not available for thorough fuel oxidation because sufficient air mixing is not achieved. These phenomena are the main causes of CO and HC emissions [22]-[24].

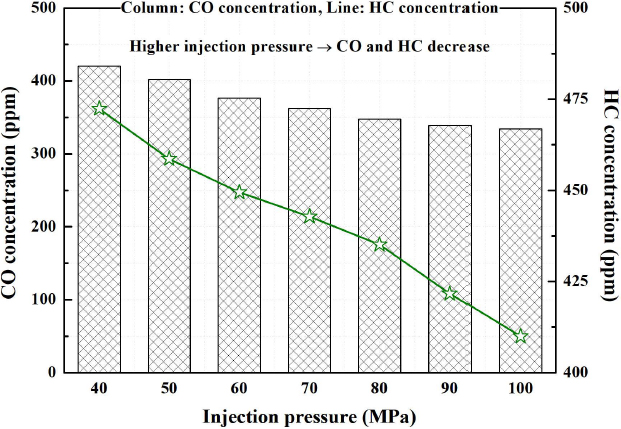

Figure 13 shows the emission characteristics of CO and HC at different fuel injection pressures.

Figure 13:

CO and HC emission characteristics at various injection pressures

The CO and HC emission levels clearly decreased as the fuel injection pressure increased. An increase in the fuel injection pressure created a superior air–fuel mixture in the combustion chamber, resulting in a very high degree of oxidation.

The higher the fuel injection pressure, the smaller the fuel droplets, resulting in the formation of a combustible mixture and better flame propagation, thus improving the combustion quality. Therefore, increasing the fuel injection pressure resulted in reduced CO and HC emissions.

The main source of NOx emissions from internal combustion engines is the nitrogen in the air, which oxidizes at high temperatures during combustion; this NOx is called thermal NOx. The generation of NOx depends on the oxygen concentration, GMT during the combustion period, and the excess air coefficient [1][25].

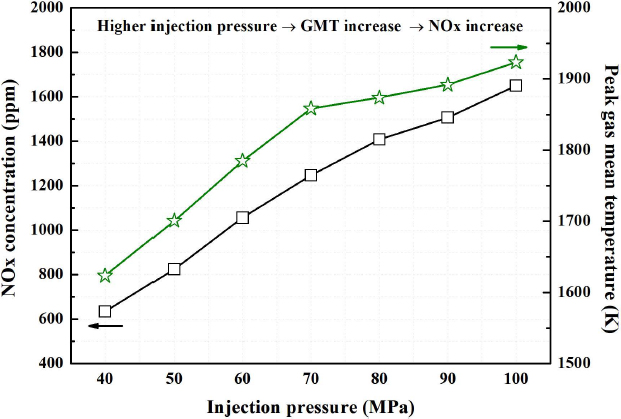

Figure 14 shows the NOx emission characteristics at different fuel injection pressures. The NOx emission level gradually increased as the fuel injection pressure increased toward the high-pressure region. The fuel droplet size decreases at high fuel injection pressures; therefore, the fuel spray evaporates rapidly. Therefore, it is difficult for the fuel spray to penetrate deep into the combustion chamber.

Figure 14:

NOx and peak GMT characteristics at various injection pressures

As a result, the initial combustion rate becomes extremely high, resulting in an increase in the GMT during the combustion process. This phenomenon increases NOx emissions because NOx formation is sensitive to the GMT during combustion. The effect of the fuel injection pressure on the exhaust emission characteristics, including lambda, is summarized in Table 8. O2, CO, NOx, and lambda de-creased, whereas CO2 and NOx increased as the fuel injection pressure increased.

Exhaust emissions and Lambda (λ)


4. Conclusions

An experimental analysis was conducted by applying high-sulfur diesel used in naval vessels to a single-cylinder CRDI diesel engine to determine the spray, combustion, and exhaust emission characteristics of a diesel engine at various fuel injection pressures. The main conclusions drawn from the experimental investigation are summarized as follows:

  • 1) A higher fuel injection pressure resulted in an increase the STP and average spray speed during the same period. Additionally, both the injection delay and injection duration were reduced.
  • 2) A higher injection pressure resulted in an increase in the peak in-cylinder pressure, peak ROPR, peak ROHR, and peak GMT. In addition, the IMEP and the indicated torque tended to increase because of the high ROHR as the injection pressure increased in the high-pressure region. Therefore, the fuel conversion and combustion efficiency also improved. Increasing the fuel injection pres-sure resulted in the rapid formation of a superior combustible mixture, shorter ignition delay time, rapid advance of combustion phasing to the TDC, a decrease in the overall combustion period and an increase in the exhaust gas temperature. Increasing the fuel injection pressure increased the RI and CNL.
  • 3) A superior combustible mixture was formed as the fuel injection pressure increased, resulting in a reduction in CO and HC, and an increase in CO2. Increasing the injection pressure decreased the droplet size of the injected fuel, and the fuel evaporated more quickly, increasing the initial combustion intensity. Consequently, NOx emissions gradually increased because of the higher ROHR and GMT during the combustion process.

Nomenclatures

ABDC : After before dead center
ATDC : After top dead center
BBDC : Before top dead center
BTDC : Before top dead center
CA : Crank angle
CD : Combustion duration (10%MFB~90%MFB)
CNL : Combustion noise level
CO : Carbon monoxide
CO2 : Carbon dioxide
CRDI : Common rail direct injection
CVC : Constant volume chamber
EGT : Exhaust gas temperature
ET : Energizing time of injector
GMT : Gas mean temperature
HC : Hydrocarbon
IMEP : Indicated mean effective pressure
MFB : Mass fraction burned
MPa : Mega pascal
NOx : Nitrogen oxides
O2 : Oxygen
RI : Ringing intensity
ROHR : Rate of heat release
ROPR : Rate of pressure rise
ROPRpeak : Peak rate of pressure rise
rpm : revolutions per minute
SOE : Start of energizing
SOI : Start of injection
STP : Spray tip penetration
TDC : Top dead center
mf : Fuel injection mass
mintake : Intake air mass at intake valve closing
Pamb : Ambient pressure
Pinj : Injection pressure
Ppeak : Peak in-cylinder pressure
QLEV : Lower heating value
SMD : Sauter mean diameter
Tind : Indicated torque
Tpeak : Peak gas mean temperature
Vd : Displacement
Vivc : Cylinder volume at intake valve closing
Wind : Indicated work
dPdtpeak : Peak rate of pressure rise relating with time
β : Constant value
λ : Lambda
γ : Specific heat ratio
ρair : Air density
vl : Function of valve lift
ϴvod,intake : Intake valve opening duration
ϴvod,exhaust : Exhaust valve opening duration
ϴIVO : Intake valve opening angle
ϴEVO : Exhaust valve opening angle
ηfc : Fuel conversion efficiency
ηcomb : Fuel combustion efficiency

Acknowledgments

This study was supported by the 2024 Academic Research Project of the Naval Institute for Ocean Research of the Republic of Korea Naval Academy.

Author Contributions

Conceptualization, H. Lee; Methodology, H. Lee; Formal Analysis, H. -M. Baek; Writing-Original Draft Preparation, H. -M. Baek and H. Lee; Writing-Review & Editing, H. -M. Baek and H. Lee.
