Precise solving procedure of modal eigenvalues at a subwavelength metal-insulator-metal slit at terahertz frequencies

1. Introduction

Resonant power transmission through apertures or slits has been investigated in several studies. In initial research, primarily, the resonant transmission phenomena made by perfect electric conductors (PECs) were studied [1]; however, in recent years, many resonant transmissions have been presented in the case of real metals at high frequencies, such as in the terahertz (THz) regime, which deviates from the PECs [2]-[5]. These studies have presented various practical resonant transmission results by considering the complex permittivities of metals at higher fre-quencies.

There are various methods to numerically calculate the reso-nant transmission through a slit. Traditional numerical techniques include the finite-difference time domain or finite element meth-ods [6]. However, these are classified as “brute-forced” simula-tions. Consequently, methods that can aid in better understanding the physical meaning have been proposed. One such method is the mode-matching technique (MMT) [7][8]. By applying the MMT, the physical meaning can be easily understood, and the analysis time can be reduced. Hence, the analysis becomes rela-tively simple if only the material properties of the metal are ap-propriately entered based on the THz frequency [2].

This study specifically introduced the process of obtaining ei-genvalues in a metallic slit composed of a metal-insulator-metal (MIM) waveguide, which is a constituent mode when applying the MMT to a slit structure. Point and discretized continuous spectra (DCS) are composed of modes in the MIM waveguide, rendering it possible to easily understand the principles of reso-nant wave propagation. Attaining a good understanding of how to obtain each mode in a specific MIM waveguide structure fa-cilitates easy application even if the slit structure (e.g., slit width and period) changes. It can be applied in a simple manner despite a change in the relative permittivity of the metal. Once the modes are completely calculated, the resonant transmission characteris-tics can be solved easily.

The fundamentals of MIM slits can be applied in areas such as near-field microscopy [9], optical data storage [10], and solar power generation. Therefore, this study serves as a foundation for various research fields. In addition, MMT is meaningful be-cause MMT-related research has been conducted for a long time and applied to research fields such as periodic structures [11], discontinuity analysis of waveguides [7], and electromagnetic wave scattering characteristics in resonators.

2. Solving Process of Propagation Constants

The geometry of the MIM waveguide is shown in Figure 1. The thicknesses of the metal and insulator were assumed to be 2h and 2g, respectively; therefore, the period was 2(g + h). The structure extended infinitely along the y-axis. We assumed that a transverse magnetic (TM) wave travelled along the positive z-direction. The insulator was assumed to be air in this study; therefore, the relative permittivity of the insulator was fixed at 1. In this case, the dispersion equation is expressed as follows [12]:

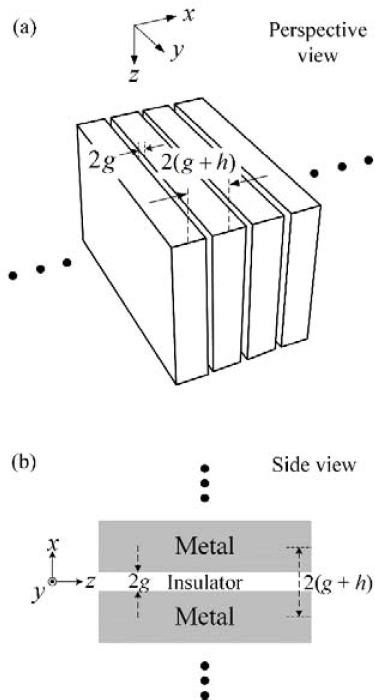

Figure 1:

Geometry of the periodic MIM waveguide with gap and period of 2g and 2(g+h), respectively. The structure is uniform along the y-axis

where ε_r,m and ε_r,i are the relative permittivities of the metal and insulator, respectively, κ_m,n and κ_i,n represent the associated trans-verse propagation constants in the metal and insulator sections of the MIM waveguides, respectively, k_z,n is the propagation con-stant in the z-direction, and the second subscript, n, indicates the modal index. Further, κ_m,n, κ_i,n, and k_z,n are related to one another as expressed in Equation (2). Upon determining κ_m,n, the other propagation constants κ_i,n, and k_z,n can be obtained. Consequently, the slit resonant transmission can be analyzed. In the THz region, the relative permittivity of metals varies depending on frequency, for example, the ε_r,m of silver at 10 THz is -37489 - j21694 [13]-[15].

As mentioned in the introduction, solutions in MIM wave-guides can be divided into a point spectrum and a DCS. The point spectrum can describe various sinusoidal field patterns, mainly in insulators. Whereas, the DCS describes sinusoidal field patterns, mainly in metals. All solutions must be determined be-cause both spectra contribute to field decomposition. If we un-derstand the process of solving the point spectrum, the process for DCS is similar and not difficult; therefore, we skipped the procedure for solving the eigenvalues for DCS [3].

The process of calculating the point spectrum is described in the flowchart shown in Figure 2. First, we determined a solution for the TM₀ mode, which is the fundamental mode of the MIM waveguide.

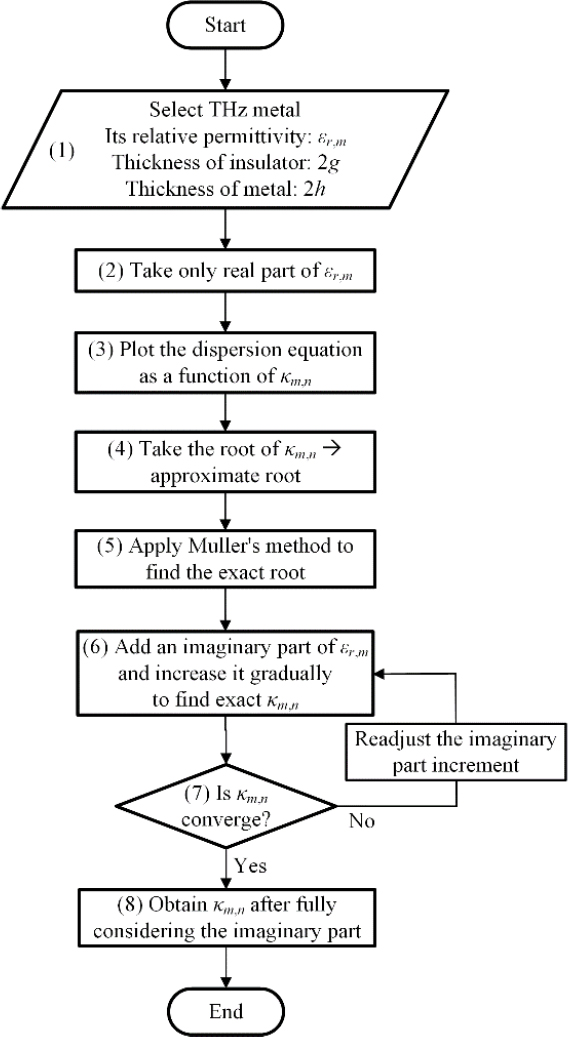

Figure 2:

Flowchart of process for obtaining point spectrum

(1) - To find a solution (eigenvalue) for the point spectrum, we input the thickness of the insulator, period of the geometry, and relative permittivities of the metal and insulator of the MIM waveguide. The relative permittivity of a metal varied depending on the type of metal or the frequency changes.

(2) The relative permittivity of the metal is usually expressed in real and imaginary parts; however, if both parts are considered simultaneously in the calculation, it is difficult to directly obtain the eigenvalue. This is because Müller’s method [16] obtains a solution when the initial approximation of the eigenvalue is close to the exact root. If the first trial solution deviates slightly from the exact solution, the solution may diverge to infinity and cannot be solved. Therefore, only the real part was considered first. The solution was obtained, and then the imaginary part was added and slightly increased to converge to the exact solution.

(3) An initial approximate solution must be set. How can this approximation be established? We set the purely real and imaginary parts of κ_m,0 at tight intervals within 0–10 (for example), and then substituted it into Equation (1) to determine the exact solu-tion for the purely real part of ε_r,m using any root finding method for real number.

(4) - Among the solutions obtained by the process presented in (3), the greatest root was the eigenvalue (κ_m,0) of the TM₀ mode.

(5) Müller’s method was applied to obtain a more accurate so-lution. Subsequently, the exact root of κ_m,0 was obtained. How-ever, only the real part of the relative permittivity in the metal region was considered.

(6), (7), and (8) - A small amount of the imaginary part of the relative permittivity ε_r,m for the metal was added and it was in-creased slightly to find an eigenvalue using the Müller’s method. If the imaginary part increases rapidly, the root will not converge; therefore, it is better for the imaginary part to increase gradually. Eventually, the solution of the transverse propagation constant κ_m,0 for the TM₀ mode was obtained, when the imaginary part was entirely considered. To verify this solution, we substituted it into Equation (1). Alternatively, the field pattern for the mode can be described [2] and then verified when the field pattern in the insulator is almost constant for the TM₀ mode, which is very similar to the pattern of the fundamental mode of the parallel-plate waveguide.

Alternatively. we can confirm that the transverse propagation constant κ_m,0 is correctly obtained from properly-derived k_z,0 (See Equation (2)). It has already been shown that the propagation constant k_z,0 exactly corresponds to the “periodic resonance” of transmission resonance phenomena through a THz metal slit [2].

Once the solving process of the eigenvalue for the TM₀ mode is complete, the eigenvalues for higher modes such as TM₂ and TM₄ can be found in the same manner by going back to step (3) and considering the next greatest root.

3. Numerical Results and Modal Field Patterns

Considering the discussion of the root-finding process for the point spectrum in the previous section, changes in the point spec-trum can be examined as the imaginary part of the permittivity of the metal increases.

As shown in Figure 3, the solutions for the TM₀, TM₂, and TM₄ modes were obtained for Ag at 10 THz. Because solving a root directly by considering both the real and imaginary parts from the beginning is challenging, the imaginary part was initially excluded. As it is relatively easy to find the point spectrum when only the real part is considered, the roots were calculated as de-picted in the black square by substituting the real part of ε_r,m into Equation (1). Obviously, there were three roots along with higher-order modes. However, it is sufficient to mention only the first three roots because we aimed to focus on the process of finding the roots. The imaginary part of the permittivity increased slightly. For example, we added -j1000 from the purely real part of ε_r,m, determined a changed root for each mode, and then again increased the imaginary part by the same amount to obtain a more correct root. In this process, if a root was not directly obtained when increasing by -j1000, the root could be obtained by increas-ing by -j500 (for example). This procedure is explained in conditional statement (7) of Figure 2. When the imaginary part was in-creased to -j7231, the first three solutions obtained are indicated by red triangles in Figure 3. When the imaginary part was in-creased by -j14463 in the same manner, the obtained roots are displayed as green diamonds. For the final increase to -j21694, the final normalized transverse propagation constant κ_m/k₀ was computed by indicating them as blue circles.

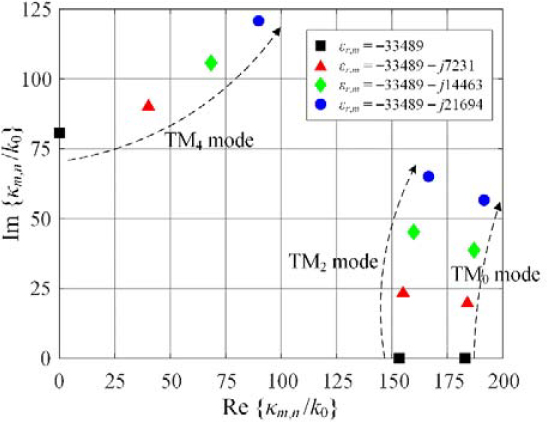

Figure 3:

First three point spectrum roots κm/k0 for considering only real part (black), increasing imaginary parts (red and green), and both entire real and imaginary parts (blue) of relative permittivity of Ag at 10 THz.

By using the solved roots (blue circles) κ_m, the corresponding κ_i and k_z can also be obtained using the relation in Equation (2). The y-component magnetic field [2] is described in Figure 4. In accordance with the first, second, and third roots, the H_y-fields for the three modes corresponded to Figures 4 (a), (b), and (c), respectively. The obtained roots in Figure 3 were confirmed by checking the sinusoidal patterns formed inside the insulator (white centers).

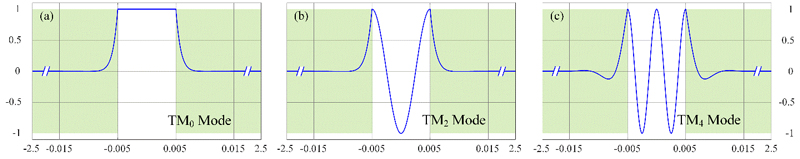

Figure 4:

Field patterns for (a) TM0, (b) TM2, and (c) TM4 modes. The central white region is a part of the insulator and the green regions outside the insulator indicate Ag. The relative permittivity of the Ag is -33489 - j21694

If both the point spectrum and DCS are obtained (although solving DCS [3] is not introduced in this work), the resonant transmitted power through the metallic slit in THz can be system-atically solved using the MMT. Transmittances can be calculated according to changes in the metal, frequency, and width of the insulator, as confirmed in [2][4].

4. Conclusion

This study proposed a method to obtain the eigenvalues (transverse propagation constants) of the first three modes for the MIM waveguide geometry in the THz regime. Based on the ge-ometric period, insulator width, and relative permittivity of the metal, a dispersion equation was formed, and the modal eigen-values was solved. However, as it was difficult to obtain the eigenvalues directly from the dispersion equation, we obtained a trial root by excluding the imaginary part from the relative permit-tivity of the metal. Subsequently, the imaginary part was gradual-ly increased to obtain an exact root. By gradually adding an imag-inary part, it was possible to confirm that the complex-numbered eigenvalues deviated from the purely real or imaginary numbers. After examining the magnetic fields formed in the MIM wave-guide, it was possible to verify whether the solved roots were valid or not. These results are useful because the roots provide the basis for analyzing the resonant slit transmission by MMT.
