Experimental investigation of the entrainment and pressure lifting characteristics of two-phase ejectors

1. Introduction

The ejector provides a three-fold effect: entrainment, mixing, and pressure lifting. Entrainment, defined as the mass ratio of suction flow rate to primary flow rate, is a direct measure of the mass entrained by the ejector. The pressure-lifting ratio is the ratio of lifted pressure at diffuser outlet to suction inlet pressure. It is a direct means of pressure lifting that the ejector can provide to the entrained stream. Ejectors are preferred for systems with corrosive liquids or other hazardous fluids that are difficult to transfer using conventional pumps and compressors. Within the ejector, a high-pressure primary fluid enters a suction chamber through a nozzle and expands. This primary fluid converts pres-sure energy into velocity. The increased velocity causes reduced pressure, which sucks in and entrains a secondary fluid from the atmosphere or secondary fluid storage facilities. The low-pressure secondary fluid mixes with the high-pressure primary fluid in the suction chamber and mixing tube located downstream of the nozzle. The diffuser section recompresses the mixture stream to an intermediate pressure [1].

The primary objective of research on two-phase ejector appli-cation systems is to improve the performance of the systems. For example, in a refrigeration cycle, a two-phase ejector can be used to entrain and compress vapor at evaporator outlets, resulting in a higher compressor suction pressure and improved cycle performance. Many studies have fo-cused on the effect of primary nozzle design parameters on the performance improvement of application systems [2]. The pa-rameters include the nozzle outlet position [3], primary nozzle throat diameter and angle [4]-[8], and length-to-throat diameter ratio [9][10]. The parameters were the primary nozzle throat di-ameter and angle, length-to-throat diameter ratio, and nozzle out-let position. Although the efficiency of the two-phase ejector plays a pivotal role in enhancing the performance of ejector appli-cation systems, it is often overlooked in favor of other factors. Opletal et al. [11] have developed a method for designing an upflow ejector loop reactor for coalescent systems with respect to the different energy dissipations and mechanisms of interfacial mass transfer in the ejector. Measurements and correlations of the gas entrainment rate and oxygen volumetric mass transfer coeffi-cient have been reported to describe their dependence on operat-ing conditions, for various geometries of the ejector. Im and Song [12] have conducted analytical and experimental investiga-tions to characterize the performance of a short ejector. They suggest a new analytical model for a short ejector, with the mix-ing tube length set based on control volume analysis and jet ex-pansion model. Akagi et al. [13] have investigated the pressure-lifting characteristics of a two-phase ejector for application in a carbon dioxide heat pump cycle. The geometric parameters are the diameter and length of the constant-area mixing tube and primary nozzle position. Park and Yang [14]-[16] have experi-mentally investigated the flow and mass transfer characteristics of vertical and horizontal aeration processes with the design parame-ters of an orifice or annular ejector.

A two-phase ejector can be used as an alternative device for advanced refrigeration technologies because of its capability in recovering the expansion energy that is generally lost during isenthalpic expansion in conventional vapor-compression refrig-eration cycles. Expansion work recovery is a means of improving overall cycle performance [17]. A two-phase ejector uses the expansion of a high-pressure primary liquid to entrain low-pressure suction vapor and increase its pressure, as shown in Figure 1. Figure 1 shows a schematic cycle layout of an ad-vanced two-phase ejector refrigeration system. In a refrigeration system, a two-phase ejector can be used to entrain and compress vapor at the evaporator outlet, resulting in higher compressor suction pressure and reduced compressor input power. In this system, entrainment and pressure-lifting characteristics are the key performance metrics of two-phase ejectors. Although our understanding of each performance parameter in ejector applica-tion systems has been steadily advancing, simultaneously inves-tigating the performance parameters is desirable. However, to the best of our knowledge, only a few studies have explored the two-phase ejector itself to simultaneously investigate the entrainment and pressure-lifting characteristics with the design parameters [2][4].

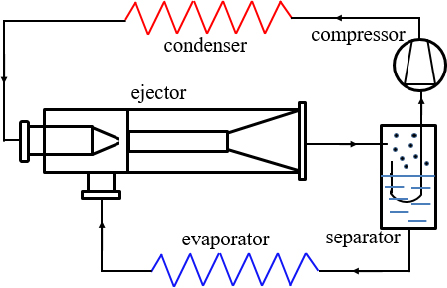

Figure 1:

Schematic layout of an ejector refrigeration system

The performance of two-phase ejectors must be sufficiently high for a sufficiently broad range of conditions to justify their use and associated costs. However, the traction force for the entrainment of the suction fluid and static pressure within the two-phase ejector vary with the mixing tube length, and the pres-sure-lifting behavior differ according to the entrainment ratio and diffuser design. Simultaneously describe performance parameters, as well as understanding the quantification of the ejector perfor-mance is significant. Therefore, the objective of this study is to experimentally investigate the entrainment ratio (MR) and pres-sure lifting ratio (PLR) inside a two-phase ejector simultaneously with mixing tube length ratios (LR_m) of 5.0, 7.67, 12.67, 16.67 and 19.67, within a Reynolds number range of 0.99 × 10⁵ - 2.66 × 10⁵.

Generally, an optimum mixing tube length provides the maxi-mum entrainment rate for the suction fluid in a two-phase ejector. A lower length can cause inefficient mixing of the two streams, leading to a decrease in the traction force of the suction flow. However, a higher length can result in a considerable friction loss, leading to a negative impact on the pressure lifting. Therefore, an optimization procedure for proper ejector design is crucial for application purposes.

2. Experimental Setup and Methods

2.1 Central Nozzle Ejector

A two-phase ejector is a type of gas-liquid contactor that di-rectly transfers energy and momentum from a high-energy prima-ry fluid to a low-energy suction fluid, and mixes the two fluids. Figure 2 shows an experimental ejector model along with its main internal parts and geometrical dimensions. The ejector was designed to offer flexibility for design parameter variation in the experimental ranges. The ejector was of the central nozzle type, characterized by a primary jet line positioned at the center, with the suction flow line located on the outside. The ejector had a suction chamber, parallel mixing tube, and conical diffuser, all featuring circular cross sections. Table 1 summarizes the detailed geometric specifications of the ejector. A round-edge orifice-type primary nozzle with an outlet diameter of 8 mm was used, result-ing in a primary nozzle area ratio (AR_n) of 0.28 (Equation (1)). In Equation (1) AR_n is defined as the area ratio of the primary nozzle outlet to the mixing tube. The semi-cone angle of the suc-tion chamber (α) was 46.4°. The mixing tube-to-primary nozzle tip spacing (L_n) was 13 mm, resulting in a primary nozzle dis-tance ratio (LR_n) of 0.87, as calculated by Equation (2) [18]. The mixing tube length was varied from 75 mm to 295 mm, re-sulting in mixing tube length ratios (LR_m) of 5.0, 7.67, 12.67, 16.67, and 19.67. The LR_m values were determined by dividing the mixing tube length by its diameter, as defined in Equation (3). A conical diffuser with an outlet diameter of 26 mm yielding an area ratio (AR_d) of 3.0, was employed. The AR_d ratio was is calculated using Equation (4) as the ratio of the diffuser outlet area to the mixing tube area. The length of the diverging section of the diffuser (L_d) was 100 mm, resulting in a diffuser semi-cone angle (β) of approximately 3.15°. Table 2 lists the mixing tube lengths and diffuser outlet area ratios, which are the experi-mental parameters used in this study. An O-seal was used to prevent leakage between the fixed and movable pieces of the ejector. In addition, three pressure taps were installed on the ejec-tor walls at the primary flow inlet, primary nozzle outlet, and diffuser outlet. The primary nozzle area, primary nozzle distance, mixing tube length, and diffuser outlet area ratios are defined as follows.

$\[ A{R}_n=\frac{d_n^2}{d_m^2} \]$

(1)

$\[ L{R}_n=\frac{L_n}{d_m} \]$

(2)

$\[ L{R}_m=\frac{L_m}{d_m} \]$

(3)

$\[ A{R}_d=\frac{d_d^2}{d_m^2} \]$

(4)

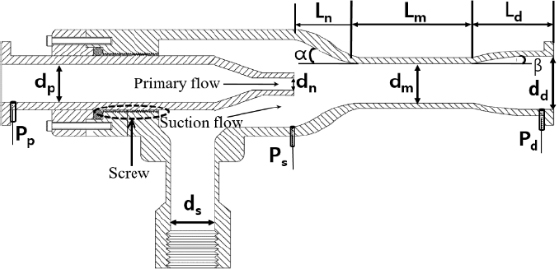

Figure 2:

Schematic of the central nozzle ejector

Table 1:

Geometric specifications of the central nozzle ejector.

Table 2:

Experimental parameters.

2.2 Experimental Setup

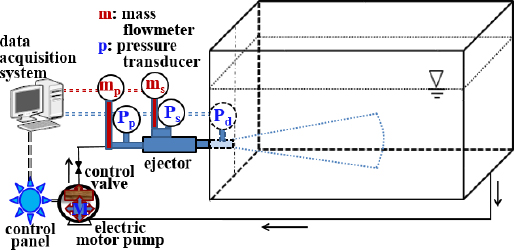

The experimental apparatus with a central nozzle ejector was designed to operate as a closed circulation loop, as shown in Figure 3. It consisted of an electric motor-pump, central nozzle ejector assembly, circulation water tank, and measurement or control accessories (i.e. data acquisition system, water and air flow meters, pressure and vacuum transducer, control valve and panel). The primary flow was supplied through the circulation water tank by a 7.5 kW induction motor with a vertical multistage pump. All experiments were conducted in a rectangular tank of 1.66 m length, 0.46 m width, and 0.8 m height. The water tank was composed of transparent acrylic. The ejector diffuser outlet was placed on the shorter plane side wall such that its axis lied horizontally 0.2 m above the bottom and at the middle of the side wall.

Figure 3:

Schematic of the experimental setup

3. Results and Discussions

Figure 4 shows the pressure in the suction chamber PSC and pressure lift in the diffuser PLD as functions of Re obtained for the mixing tube length ratio LR_m at a diffuser outlet area ratio AR_d of 3.0. The calculated Reynolds numbers based on the pri-mary nozzle outlet velocity and nozzle exit diameter ranged from 0.99 × 10⁵ to 2.66 × 10⁵, as shown in Table 2. The range of Re values expected to be more efficient for the mixing and mass transfer processes was consistent with the results of Lima Neto et al. [24]. The absolute PSC decreased linearly with increasing Re owing to the enhancement in the suction vacuum pressure. This enhancement resulted from an increase in the primary flow velocity at the nozzle exit. As the mixing tube LR_m increased, the PSC reduced, owing to the enhancement in the suction vacuum pres-sure. Figure 5 illustrates the enhancement mechanism of the suction vacuum pressure.

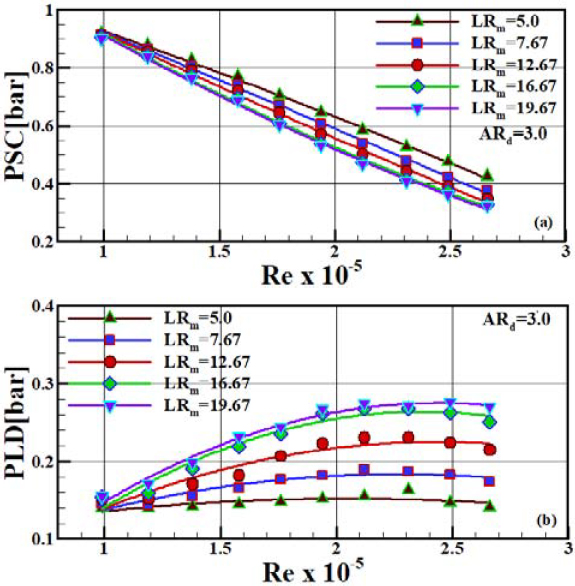

Figure 4:

PSC (a) and PLD (b) with mixing tube length ratios as a function of Re

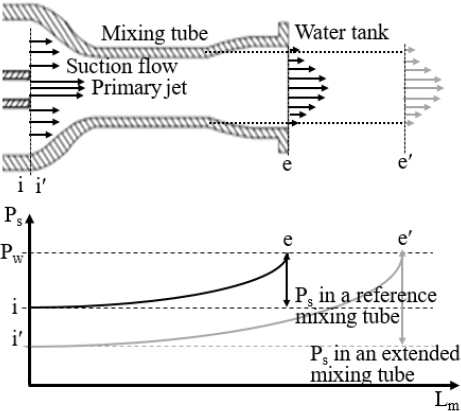

Figure 5:

Schematic of the suction pressure decrease with mixing tube length [12]

As the mixing tube lengthened, more mixing or a higher in-crease in static pressure occurred within the mixing tube. How-ever, the diffuser outlet pressure remained constant at the same pressure as that of the water tank. Therefore, the static pressure Ps at the suction inlet with a longer mixing tube must decrease, leading to an increase in the suction vacuum pressure, as demon-strated by Im and Song [12]. With increasing LR_m, the reduction rate of the PSC decreased, resulting in a nearly constant value. However, with increasing Re, the absolute PLD increased be-cause of the enhancement in momentum transfer from the higher-pressure primary jet to the lower-pressure suction flow. As the mixing tube lengthened, the PLD increased owing to the mixing enhancement as well as the enhancement in the momentum trans-fer between the two streams. However, with a longer mixing tube length and higher Re, the rate of increase of the PLD reduced, because of the increase in pressure drop resulting from the fric-tional loss in the mixing tube wall.

The length of the parallel mixing tube played an important role in creating a uniform velocity profile at the diffuser inlet of the two-phase ejector. The uniform velocity was due to the momen-tum transfer from the high-pressure primary jet to the low-pressure suction flow and the mixing enhancement between the two streams. Uniformity of velocity was essential to increase the entrainment of the suction fluid and decrease the induced losses in the diffuser, and consequently, for efficient pressure lifting. Figure 6 plots the effect of the mixing tube length on MR as a function of Re or PSC for AR_d 3.0. The MR increased with in-creasing Re and then decreased slightly. This variation occurred because as Re increased, the incompressible primary water flow rate increased monotonically and, the compressible suction air flow rate increased; however, the increasing rate of the compress-ible suction air flow reduced. Although the suction vacuum pres-sure increased or PSC decreased linearly with increasing Re, as shown in Figure 4, the rate of increase of the compressible suc-tion air flow reduced at a relatively higher value of Re because the resistance of the suction air flow was enhanced, owing to the compressibility effect [14][15]. In addition, the reduction in the rate of increase of the suction air flow was attributed to the re-duced suction chamber area owing to the expanding primary liquid jet at a relatively higher Re [11]. As LR_m increased, the entrainment performance was enhanced up to an LR_m of 16.67 and then remained nearly constant. This entrainment enhancement was due to an increase in the traction force or suction vacuum pressure as described in Figure 4 and illustrated in Figure 5. The increase in the traction force for the suction flow may be due to the mixing enhancement between the two streams within the mixing tube and the discharge of the uniform mixed flow from the mixing tube outlet, resulting from an increase in the interaction length, and consequently the surface for momentum transfer. Mixing enhancement and a uniform discharge flow may lead to an enhanced traction force on the suction fluid. On the other hand, for shorter length ratios, the lower entrainment char-acteristics may be ascribed to the fact that non-uniform mixed flow in which the core of the primary jet still exists is discharged from the mixing tube outlet owing to partial mixing, thus leading to reduced traction force for the suction flow. The variation in the MR with PSC differ from that in the MR with Re because of the inverse relationship between Re and PSC, as shown in Figure 4. MR has a maximum value at approximately Re = 2.12 × 10⁵ or PSC = 0.5 bar for an LR_m of 16.67.

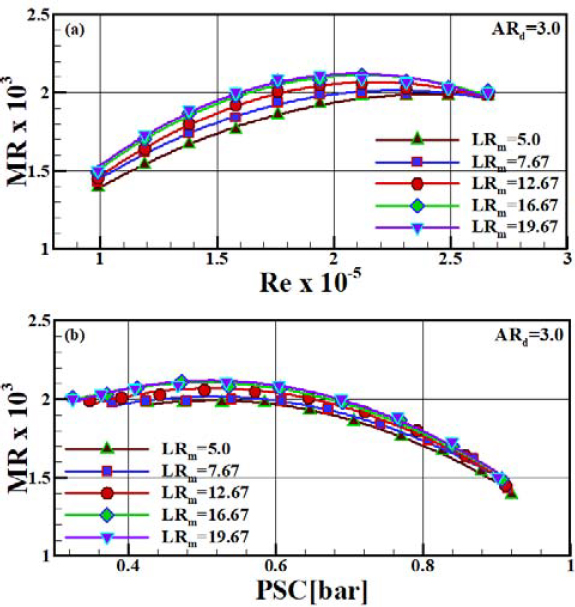

Figure 6:

MR with mixing tube length ratios as a function of Re (a) and PSC (b)

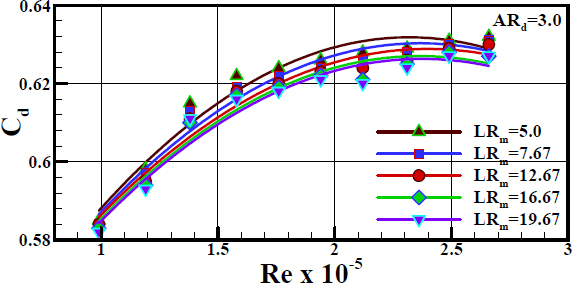

To confirm the variation in MR with LR_m, the discharge coef-ficient C_d was calculated using Equation (11). Figure 7 shows the variation of C_d as a function of Re with the mixing tube length ratio LR_m as a parameter. With the lengthening of the mix-ing tube up to an LR_m of 16.67 the discharge coefficient decreas-es whereas further lengthening of the mixing tube has little effect on C_d. The decrease in C_d may be due to the fluid dynamic inter-action between the entrained suction flow and the flow area oc-cupied by the primary jet inside the two-phase ejector. This is because with increasing MR, the actual area available for the primary jet decreases owing to the increase in the suction air-flow [25]. In addition, the reduction in C_d with lengthening of the mixing tube up to an LR_m of 16.67 is due to the increase in PDN, as can be seen from Equation (11). This reduction of C_d is opposite to the enhancement of MR with lengthening of the mixing tube up to an LR_m of 16.67, owing to the decrease in PSC. Both the increase in PDN and the decrease in PSC were caused by the increase in the suction vacuum pressure, as can be deduced from Equation (6) and the variation in PSC shown in Figure 4. Therefore, it was confirmed that owing to the increases in the suction vacuum pressure, C_d reduced and MR increased up to an LR_m of 16.67. In addition, it was found that at a constant Re, the variation in C_d with LR_m is dependent only on PDN because the other parameters of Equation (11) have constant values. As Re increased, C_d first increased linearly and then decreased slightly. The result is due to the fact that as Re rises, Q_p and PDN increase linearly; however as shown in Equation (11), the denominator is proportional to the square root of PDN.

Figure 7:

Discharge coefficient with mixing tube length ratios as a function of Re

To develop a correlation model for C_d as a function of Re and LR_m, a linear regression method was used, and the result is given by Equation (12). The result is in agreement with the experi-mental data within ±0.78% average deviation and ±1.45% maxi-mum deviation, as illustrated in Figure 8. The model exhibited a correlation coefficient (R²) of 0.946 and standard error of esti-mate of 0.0035. Based on this correlation, it was observed that Re had a greater effect on C_d than does LR_m.

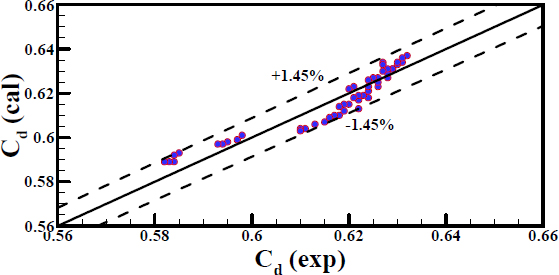

Figure 8:

Comparison of the experimental data with the correlated data for Equation (12)

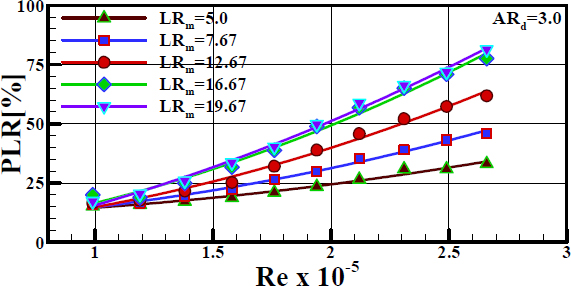

In ejectors, the suction flow is entrained by the static pressure difference between the atmosphere and suction chamber. As the momentum transfer from the primary jet to the suction flow progressed, the static pressure increased along the parallel mixing tube. As the length of the mixing tube increased, a greater pressure increase occurred in the mixing tube because of the enhanced momentum transfer between the two streams. In an ideal case, the mixing tube should be sufficiently long to transfer the momentum completely and homogenize the two phases. A shorter length leads to a partial momentum transfer, whereas an excessive length leads to an additional pressure drop owing to wall friction. Figure 9 shows the effect of the mixing tube length on the PLR as a function of Re for an AR_d of 3.0. The PLR was enhanced by increasing Re and LR_m. The enhancement of PLR by Re occurs because as Re increases, PLD increases and PSC decreases, as shown in Figure 4. It was found that up to an LR_m of 16.67, the lengthening effect of the mixing tube on the PLR increased, whereas beyond LR_m, the effect decreased. The in-crease in PLR with the lengthening of the mixing tube up to an LR_m of 16.67 is due to the increase in PLD. The increase in the PLD resulted from the reduced mixing tube outlet velocity of the mixture flow owing to the mixing enhancement between the two phases. Further lengthening of the mixing tube has a negative effect on the PLR because of the additional pressure drop result-ing from frictional resistance, thus leading to a decrease in the rate of increasing of the PLR.

Figure 9:

PLR with mixing tube length ratios as a function of Re

Figure 10 shows the comparison of ejector efficiencies as a function of volume flow ratio (φ) for different primary nozzles and mixing tube length ratios. The ejector efficiencies of the present study with a round-edged orifice nozzle (RON) were compared with the results of Cunningham and Dopkin [20] and El-Sallak and Hefny [21]. The results of Cunningham and Dop-kin were for round-edged orifice and round-edged converging nozzles (RONs and RCNs) with an LR_m of 28, whereas those of El-Sallak and Hefny were for a RCN with two different LR_ms of 16.15 and 20.27. The efficiencies of the present study are under estimated compared with the RON-1 and RCN results of Cun-ningham and Dopkin, and those of El-Sallak and Hefny. Howev-er, the present result are in good agreement with the RON-3 re-sults of Cunningham and Dopkin within the volume-flow ratio range of this study. The under estimated results in this study can be attributed to the primary nozzle design and operating condition [21][26]. It was found that the reported difference between RON-1 and RON-3 of Cunningham and Dopkin RCN was only the nozzle throat length, but the difference in efficiency was ap-proximately 50% for the same volume-flow ratio.

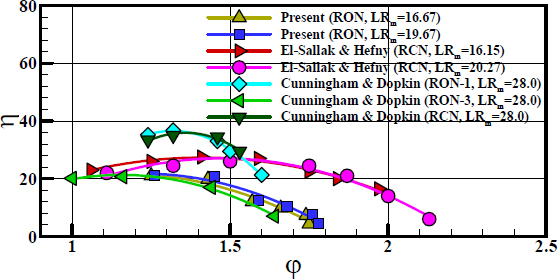

Figure 10:

Comparison of ejector efficiency with volume flow ratio

To achieve higher performance for a two-phase ejector applica-tion system, the MR and PLR should also be high. However, there is a trade-off between the MR and PLR therefore, the ejec-tor design should be optimized by considering these parameters simultaneously. Figure 11 shows the plots for the effect of the mixing tube length ratio on the MR and PLR at an AR_d of 3.0 for different Reynolds numbers. The increase in Re results in MR enhancement to its maximum value, which occurs at Re of 2.12 × 10⁵, and then decreases; whereas, as Re increases, the PLR in-creases for all ranges of Re. It is apparent that the MR is less sensitive to LR_m at higher Re and is independent of LR_m beyond a critical LR_m, whereas the PLR increases linearly up to the criti-cal LR_m, and the increasing rate of the PLR decreases beyond the critical LR_m for all ranges of Re. It is concluded that in the LR_m and Re ranges of this research, MR has a maximum value of approximately 0.002 for the critical LR_m of 16.67 at approximately Re = 2.12 × 10⁵. It was also found that up to an LR_m of 16.67, the momentum-transfer effect between the two streams with the lengthening of the mixing tube was predominant and overcame the pressure drop resulting from the friction loss within the mixing tube, thus leading to a linear increase in the PLR.

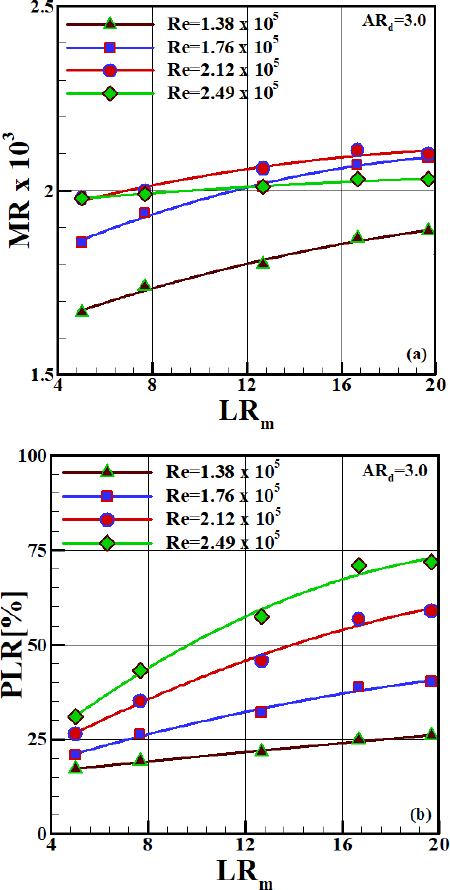

Figure 11:

MR (a) and PLR (b) with different Reynolds numbers as a function of LRm

4. Conclusion

Experimental investigations were conducted to characterize the entrainment and pressure-lifting characteristics of a two-phase ejector with mixing tube length ratios. The following conclusions were drawn based on the results of this investigation:

• 1. The correlation result of C_d as a function of Re and LR_m is in agreement with the experimental data within 0.78% av-erage deviation, and Re has more effect on C_d than does LR_m.
• 2. The MR exhibited a maximum value of approximately 0.002 for a length ratio LR_m of 16.67 at approximately Re = 2.12 × 10⁵. In addition, up to the length ratio, PLR linearly increased with increasing Re, because the momentum trans-fer effect between the higher pressure primary jet and lower pressure suction flow is predominant, and overcomes the pressure drop resulting from friction loss.
• 3. The entrainment enhancement with an increasing mixing tube to the length ratio of 16.67 is due to the increase in the traction force resulting from mixing enhancement between the two streams, whereas the pressure lifting enhancement is due to the decrease in the mixed flow velocity discharged from the mixing tube outlet because of the mixing en-hancement.

Acknowledgments

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Education (NRF-2019R111A3A01057227).
