Object location estimation system based on instance segmentation

1. Introduction

The increased consumption of delivery and courier services––particularly during COVID-19 when the time that people spent indoors was remarkably long––has had a significant impact on the logistics industry. With increased use of courier services owing to mobile shopping, which facilitates non-face-to-face transactions, many items are shipped to and from the warehouses of post offices and distribution companies. As the use of courier delivery has increased, many people have been able to make satisfactory transactions; however, accidents, such as items being damaged during delivery or being delivered to the wrong address, are also increasing. Consequently, the demand for manpower to handle courier work is also increasing. To address this issue, it is essential to perform verifications that automatically check the volume and destination of the goods in the logistics warehouse after receiving the delivery, during the process of classifying goods according to their size and destination.

To automate verification in situations wherein many objects move quickly, it is necessary to obtain accurate measurement performance and ensure low construction costs with minimum processing time to acquire object information. Existing systems have primarily measured the volume of objects by using multiple high-performance cameras and multiple LiDARs and have measured object information by using image processing algorithms such as edge detection [1]-[3]. However, these methods incur high construction costs because they require the installation and use of several equipment or expensive sensors [4]-[6]. Additionally, conventional image processing algorithms are vulnerable to changes in lighting and therefore require limited lighting conditions. Further, when multiple objects are photographed simultaneously, more complex information processing is required to separate them and obtain information for each object. This requires long processing time. Therefore, research efforts must focus on systems that can achieve low construction costs and high accuracy even in non-fixed environments.

Deep learning-based computer vision systems play a major role in areas that require the measurement of objects, such as inspecting product defects in smart factories [7]-[9], providing information in medical images [10]-[12], and estimating sample volumes in the civil engineering domain [13]. Recently, lightweight deep-learning algorithms [14]-[16] have been investigated in this regard, and methods for obtaining information quickly and accurately have been studied. To accurately obtain product information, a deep learning-based computer vision system can achieve fast processing time and accurate measurement performance. Additionally, because information concerning an object can be obtained using only one camera rather than multiple cameras, construction costs can be reduced.

In this study, we devised a position-estimation system that can determine the location and area of a measured object by using deep learning-based computer vision. The proposed system uses only a single two-dimensional (2D) camera and applies an image-segmentation algorithm to determine the pixel-level area of the target in the image. Further, it uses YOLACT [17] as the image-segmentation algorithm. This algorithm is an instance-segmentation model that recognizes each instance. Because the location and pixel area of an object can be accurately determined in an image, even objects that are not square-shaped can be precisely identified. In addition, they exhibit remarkable resilience to noise such as a person's hands and feet, which are simultaneously photographed while measuring an object.

The remainder of this paper is organized as follows. Section 2 details related research and image segmentation, and Section 3 describes the flow and configuration of the proposed system. Section 4 presents the verification conducted in various environments to evaluate the performance of the proposed system. Finally, Section 5 summarizes the conclusions and future research.

2. Related Works

3. Proposed System

3.1 Overall System

This study devised a position-estimation system that determines the location and area of an object to be measured in real time using a single camera. A schematic of the operation of the proposed system is shown in Figure 1.

Figure 1:

Structure of proposed system

First, the system determines the pixel area of the object by using a segmentation module for the input image. YOLACT, which outputs a matrix that distinguishes objects and noise of the same size as the image, is used as the segmentation model. The contour module extracts only the object information from the output matrix and detects edges by imaging the matrix with the highest accuracy. The location of the object is then obtained by outputting the coordinate information of the category, pixel areas (xmin, ymin), and (xmax, ymax) from the detected edge. The following subsections describe the detailed methods of the proposed system and construction of the dataset used in the proposed system.

3.2 Segmentation Module

The segmentation module determines the pixel-level area of an object using an instance-segmentation model. Existing instance-segmentation models require significant computation and high hardware performance owing to their complex structures. Therefore, we used YOLACT, which is a lightweight model. YOLACT is a real-time instance-segmentation method that enables fast processing. The structure of YOLACT is shown in Figure 2.

Figure 2:

Flow of YOLACT

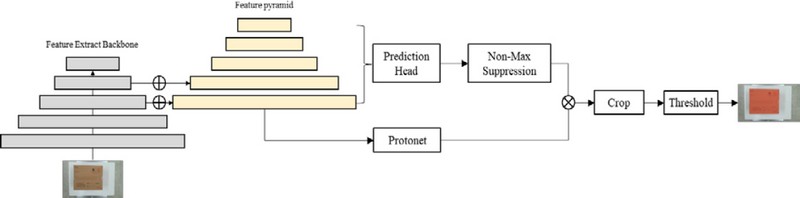

YOLACT, used in the segmentation module, extracts image features using Darknet-53 [27] as the backbone and obtains features at each stage with an FPN structure. In contrast to other instance-segmentation methods, YOLACT simultaneously performs classification to recognize feature localization objects, which is a preprocessing step for extracting pixel-level areas. It determines the approximate part of the pixel area in ProtoNet and calculates the mask coefficient using the prediction head. Subsequently, the output of the ProtoNet and the mask coefficients are combined to obtain the segmentation result of the final pixel area. The formula for obtaining these results is expressed as follows:

$\[ \mathrm{M}=\sigma \left(P{C}^T\right) \]$

(1)

where P is the prototype mask and is of the form (h, w, k). Here, h and w denote the horizontal and vertical dimensions of the image, respectively; k is the output of the mask coefficient; and C is (n × k) for n output instances. The size is multiplied by a single matrix and a sigmoid function. The loss function is calculated using a single-shot detector (SSD) and binary cross-entropy. By utilizing these methods, YOLACT can achieve fast processing speed and accurate segmentation results.

3.3 Contour Module

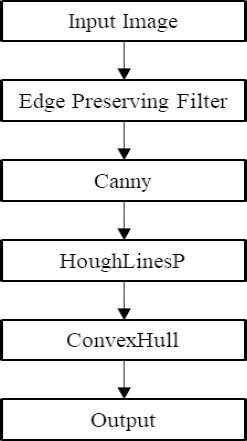

The contour module specifies the coordinate and area information for the detected pixel area. The flowchart of the contour module algorithm is shown in Figure 3.

Figure 3:

Flow of contour module

The contour module receives the pixel area image, which is the result of the segmentation module as input, emphasizes edges using OpenCV’s EdgepreservingFilter [28] for edge detection, and determines the edges using Canny [29]. Points for the border area are then created using the Hough transform and objects are created using the ConvexHull method. At each point of the object, the x-axis minimum xmin, y-axis minimum ymin, x-axis maximum xmax, and y-axis maximum ymax are determined and output as information regarding the position, including the pixel area of the input image. Because it is not accurate to specify the coordinates of atypical objects such as vinyl or circles, which do not have a shape that can easily specify coordinates, such as a rectangular parallelepiped, the information of xmin, ymin, xmax, ymax, and the pixel area coordinates can be obtained as the output. This information is used following conversion to the center coordinates where it is located or in the form of a bounding box.

3.4 Dataset Structure

To build the proposed object location tracking system, a dataset was constructed as shown in Figure 4. The left side of Figure 4 shows the collected raw data, and the right side shows the labeled image. Because of the influence of light sources and the surrounding environment, we collected data from eight locations––including outdoor and indoor environments––and objects, including boxes of various colors, and parcels wrapped in plastic and collected 8,000 pieces of data related to the object at 4K resolution. During labeling, the target object to be measured and other noises, such as hands or feet, were labeled separately. This method allowed for the object location tracking system to distinguish between object and noise areas. Therefore, even when an object was obscured by noise, its area could be estimated in pixel units.

Figure 4:

Dataset for segmentation

4. Results

4.2 Result and Discussion

4.2.1 Segmentation Module Result

First, we compared the output results of the segmentation to evaluate whether the proposed system accurately performed pixel area detection. We used the mean average precision (mAP) to evaluate the performance of the object and noise categories in the dataset. The mAP represents the average proportion of correctly answered questions among the pixel areas. For the test, 1,000 test images that were not used for learning were used among the 8,000 images collected, as described in Section 4.1. The proposed system used YOLACT as the model for the segmentation module. Therefore, the proposed system was compared with Mask R-CNN [31] to verify the validity of YOLACT. Mask R-CNN is a representative instance-segmentation model. It was proposed at approximately the same time as YOLACT and is known to exhibit higher performance in public datasets. Therefore, when comparing YOLACT and Mask R-CNN, we aimed to verify the feasibility of using YOLACT as a segmentation module by comparing the mAP and inference time for object and noise detection. Table 1 presents the mAP and inference time comparisons for each category of each model.

Table 1:

Performance comparison of YOLACT and Mask R-CNN in test dataset

In Table 1, the mask mAP refers to the mAP of the pixel area and the box mAP refers to the mAP of the bounding box results for xmin, ymin, xmax, and ymax of the pixel area. The YOLACT model yielded an mAP of 29.8 in the MS COCO dataset [30], and when learning the constructed dataset, the mAP of the object was 83.43% and 82.36% for mask and box, respectively. This indicates that it accurately estimated the object area. In addition, the noise area also exhibited a high estimation performance of 79.28% and 78.68% in the mask and box mAPs, respectively.

The mask and box mAPs of the Mask R-CNN were slightly higher than those of YOLACT. However, the box mAP for noise was lower than that of YOLACT, and the resulting output indicated a pixel area that was slightly larger than the predicted pixel area of YOLACT. Therefore, YOLACT's precision performance in the test was poor; however, the value of Mask R-CNN appeared to be slightly low for the object's Box mAP. YOLACT was three times faster in terms of inference time compared to Mask R-CNN. Thus, it was found to be more appropriate to use YOLACT, which has a similar performance but realizes faster processing for the dataset of the proposed system.

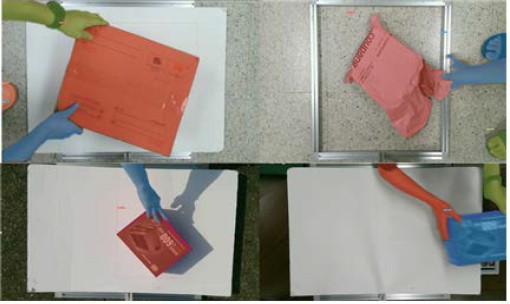

The actual output results in Figure 5 indicate that the object and noise areas were accurately distinguished.

Figure 5:

Result of segmentation model in test dataset

In addition, vinyl-shaped objects, which are atypical targets, and the hands and feet, which are essentially noise, were accurately classified and displayed. Further, by appropriately dividing the noise and object areas, it is possible to create a bounding box that can accurately estimate the location of the object, even in the hidden part.

4.2.2 Results Analysis in Edge-Computing Environment

The proposed system sought to achieve low construction costs, fast processing speed, and high accuracy. Therefore, we compared the performance of the proposed system in terms of processing time and accuracy in an edge-computing environment rather than in a high-cost GPU environment. For the hardware environment of the edge-computing system, images were captured using a 4K camera sensor and resized to 500×500 pixels, which is appropriate for real-time image processing. Further, location estimation was performed. Three targets were tested in this study. The results are summarized in Table 2.

Table 2:

Performance for Edge-Computing System

In Table 2, Case 1 refers to the same box as the post office box used for learning, while Cases 2 and 3 are boxes that were not used for learning. Additionally, tests were conducted under different lighting conditions in the indoor environment wherein the data were collected.

The mask and box mAPs showed high values (over 95%). Additionally, the processing time outputs quickly within 1 s. However, given that there were errors at the boundary, research on improving the segmentation performance in fine areas is necessary to achieve a more accurate performance.

Figure 6 shows the actual system results for Cases 1, 2, and 3 (from the top). The left image is the input image, the middle image is the resulting image of the segmentation module, and the right image shows the pixel output area and the bounding box obtained by the contour module combined with the original image. The output accurately represented the bounding box area of the target, thus distinguishing the location of the object.

Figure 6:

Result of segmentation model in test dataset

5. Conclusion

This study developed an object location estimation system that can determine the location and area of a measured object by using instance segmentation. The proposed system quickly determines the location of objects and can help automate a logistics warehouse or delivery reception. Further, it can be built at a low cost because it uses only a single 2D camera. In addition, by accurately distinguishing between objects and noise, the hidden parts and atypical objects can be identified. Tests in real environments confirmed that the location of the object was accurately determined, and even in an edge-computing environment, the processing speed was less than 1 s. However, in situations wherein objects move quickly, real-time processing may require at least 10 images per second. Furthermore, the accuracy apparently needs to be improved in fine areas such as the boundary between the object and background. To address this issue, in future studies, we plan to investigate segmentation models that can accurately infer fine areas.
