Effects of reaction temperature and residence time on the thermal decomposition of N₂O in thermal reactor

1. Introduction

Greenhouse gases contribute to global warming. The Kyoto Protocol, adopted at the Third Conference of the Parties (COP 3) of the United Nations Framework Convention on Climate Change (UNFCCC), designates six greenhouse gases—carbon dioxide (CO₂), methane (CH₄), nitrous oxide (N₂O), hydrofluorocarbons (HFCs), perfluorocarbons (PFCs), and sulfur hexafluoride (SF₆)—as targets for reduction [1].

N₂O, the third highest emitter among greenhouse gases, has a global warming potential (GWP) that is more than 300 times higher than that of CO₂ and has remained in the atmosphere for more than 120 years with a chemically stable structure [2]. Additional details on this can be found in Table 1. N₂O reaches the stratosphere and reacts with ozone, and the ozone depletion process proceeds according to the following reaction mechanism [3].

Table 1:

Global warming potential of greenhouse gases in Reference [7]

Greenhouse gases interfere with the global infrared energy, which must be emitted for the energy balance of the earth, and change the global environment in various fields such as ecosystems, food, and natural disasters [4].

According to the 5th Climate Assessment Report in 2014 of UN Intergovernmental Panel on Climate Change (UN IPCC), global greenhouse gas emissions must be reduced by up to 70 % by 2050 compared with 2010 to maintain the average global temperature rise below 2 °C [5]. In addition, the Paris Agreement adopted by COP 21 in 2015 proposed that Nationally Determined Contributions (NDCs) should be regulated and observed in each country [6].

In accordance with the Paris Agreement and Kyoto Protocol, greenhouse gas reduction targets to be implemented in the shipping industry have been delegated to the International Maritime Organization (IMO) [8]. In September 1997, the International Convention for the Prevention of Marine Pollution from Ships (MARPOL) Annex VI was established to regulate CO₂ emissions [9]. Additionally, during the 72nd Marine Environmental Protection Committee (MEPC 72), the IMO's initial GHG strategy for greenhouse gas reduction in shipping was adopted, aiming at a 50 % reduction by 2050 compared with 2008 levels [10]. The revised GHG strategy in 2023 further elevates the goal of achieving net zero emissions by 2050 [11].

Shipping companies are adopting carbon alternative fuels in response to greenhouse gas regulations [8]. Ammonia, methanol, hydrogen, LNG, and LPG are among the carbon alternative fuels used. Among these, ammonia is the most prominent, and the International Energy Agency (IEA) forecasts that by 2050, ammonia will account for nearly half of the fuels consumed by the shipping industry [12]. Ammonia has a vapor pressure of 1.46 MPa at 37.8 °C, enabling relatively easy liquefaction. It is lighter than air, facilitating good ventilation, and its tendency to disperse at higher elevations allows for effective control of leaked gases. Additionally, ammonia, similar to hydrogen, does not contain carbon, and its ability to remain in a liquid state under approximately 1 MPa pressure at ordinary temperature allows for the continued use of the existing LPG infrastructure [8]. However, owing to the oxidation of ammonia, N₂O emissions are expected to increase [13][14].

Moreover, most of the causes of N₂O emissions are the result of human economic and industrial activities such as semiconductor processes and adipic acid and nitric acid production facilities. The semiconductor process that generates N₂O consists of eight processes; N₂O is used as an oxidizer when an insulating film is formed on an Si substrate by the CVD method used in the oxidation process [15]. In the manufacturing process of adipic acid, N₂O that is generated when a mixture of cyclohexanol and cyclohexanone or only cyclohexanone reacts with N₂ to synthesize adipic acid accounts for 7−50 % of the emissions [16].

N₂O treatment technology is divided into concentration and recovery, catalytic decomposition, and thermal decomposition treatments according to the physical method [17]. Concentration and recovery are efficient methods; however, they have the disadvantage of high maintenance costs. Catalytic decomposition can be divided into selective catalytic reduction, selective noncatalytic reduction, and direct catalytic reduction [18]. Selective non-catalytic reduction and selective catalytic reduction have high processing efficiency but require difficult operation technology or high maintenance costs. Direct catalytic reduction has advantages in efficiency and maintenance cost because the reductant is not used; however, it has the disadvantage of high uncertainty because it has never been demonstrated in commercial processes [19]. Although the thermal decomposition treatment method has significant advantages in terms of operation owing to its low technical difficulty, it has the disadvantage of increasing NOx emissions.

In previous studies on N₂O reduction, Jo et al. reported that the reduction efficiency of N₂O increased when O₂ content was small or plasma was applied [20]. Park et al. reported that most of the N₂O thermally decomposed under high-temperature conditions was converted to N₂ and that a higher reaction temperature and longer residence time resulted in a higher reduction rate of N₂O [21]. Jin et al. reported that a flow structure in a vortex form was formed by a K−H instability according to the nozzle exit velocity, and in the result, the residence time of N₂O for surrounding flow increased and emissions of NO₂ significantly reduced [22]. An et al. reported that the reduction in NOx increased as the residence time of gases in the catalyst layer increased [23]. Lee et al. conducted studies on N₂O decomposition and NOx formation in a high-temperature reactor and experimentally confirmed that N₂O reduction efficiency prevailed under specific operating conditions, depending on the reaction temperature and residence time [24]. However, Lee et al. conducted experiments using relatively low concentrations of N₂O in an argon atmosphere; this was difficult to apply to the actual high-temperature thermal decomposition process using air as an oxidizer.

Therefore, in this experiment, the same air as the actual industrial environment was adopted as the atmospheric gas, and a high concentration N₂O of 100,000 ppm or more was supplied to the high-temperature reactor to apply to the semiconductor process. Furthermore, we compared the experimental results with the numerical results calculated using CHEMKIN−PRO to establish the interaction of N₂O reduction and NOx formation mechanisms in thermal decomposition treatment.

2. Experimental and Numerical Methods

2.1 Experimental method

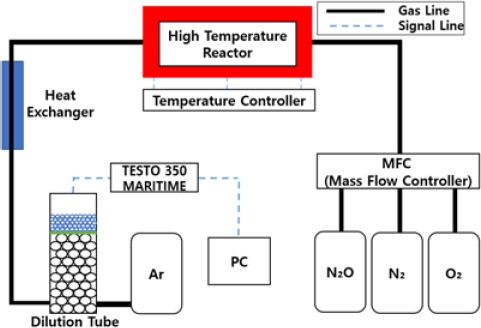

Figure 1 shows a schematic diagram of the high-temperature reactor and measuring equipment used to estimate the thermal decomposition characteristics of N₂O. The experimental setup comprised a high-temperature reactor, flow control part, measurement part, and an exhaust port.

Figure 1:

Schematic diagram of the experimental setup

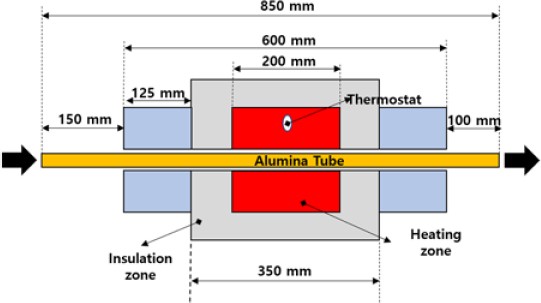

Figure 2 shows the internal structure of the high-temperature reactor consisting of a cylindrical alumina tube with a length of 850 mm and an inner diameter of 10 mm. In the 200 mm section at the center part of the reactor, a high temperature was uniformly supplied to the inside of the reactor through six heating coils installed around the outer surface of the tube. The supplied heat was measured using R-type thermocouples installed inside and outside the tube, and the maximum saturation temperature at the center of the tube was set to the reaction temperature. Figure 3 shows the internal temperature distribution of the alumina tubes with various amounts of heat supplied according to the length direction. As shown in Figure 3, the internal temperature was saturated at a constant temperature in the 350–550 mm section corresponding to the central part of the reactor in all measured cases. The reactor interior was configured as an insulation zone to shield the internal temperature from external influences.

Figure 2:

Inner structure of the reactor

Figure 3:

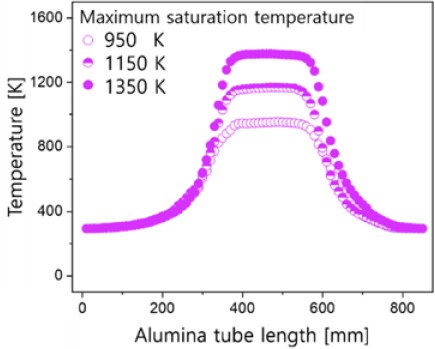

Internal temperature distribution in the alumina tube with various amounts of heat supplied

The gas composition used in the experiment was selected as single gas composition of 71.1 % N₂, 18.9 % O₂, and 100,000 ppm N₂O to simulate the actual industrial environment. The selected gas was supplied to the reactor through mass flow controllers (MFCs) corrected using a gas calibrator (MesaLabs, Defender 530+H). The injected gas was discharged after thermal decomposition. The discharged gas was cooled using a heat exchanger and measured using a combustion gas analysis system for ships (TESTO 350 MARITIME). The measurable range of NOx in the combustion gas analysis system for ships is approximately 500 ppm for NO₂ and approximately 3,000 ppm for NO. However, the concentration of NOx discharged in the present experiment was expected to fall outside this range; the discharged gas was diluted with a dilution gas in a dilution tube for gas concentration analysis. Argon, that has low reactivity even at high temperatures was used as the dilution gas. In the dilution tube, the ceramic bid and mesh were installed together to ensure uniform gas flow and remove moisture through silica gel. In the experimental method, the gas concentration was measured for 1 min after 3 min after the reactor internal temperature reached the target, and the external temperature and pressure were maintained at 25 °C and 1 atm, respectively.

The experimental variables were selected by reaction temperature and residence time, and the details are listed in Table 2. In a previous study, the decomposition of N₂O began in the range of 1000–1100 K [25], and the emission of NOx increased as the reaction temperature increased. To validate these characteristics, we selected reaction temperatures ranging from 1100 to 1500 K. Additionally, considering previous research results indicating a decrease in NOx at lower temperatures for the same residence time, we selected residence time as a variable because the emission of NOx varied with changes in residence time [26].

Table 2:

Experimental conditions

The mixed flow rate corresponding to each residence time is as follows:

$\[ Q=\frac{\pi \times {\left(\frac{D}{2}\right)}^2\times L}{t} \]$

(6)

Here, Q is the gas mixture flow rate, D is the inner diameter of the reactor, L is the length of the reactor, and t is the residence time.

To compensate for the gas expansion rate owing to the reaction temperature, the volumetric flow rate of the gas mixture was controlled using Charles’ law.

$\[ \frac{Q_1}{T_1}=\frac{Q_2}{T_2} \]$

(7)

Here, Q₁ is the inlet flow rate, T₁ is the inlet temperature, Q₂ is the flow rate at each value of residence time, and T₂ is the reactor temperature.

2.2 Numerical Method

A numerical analysis was performed using a plug flow reactor, a one-dimensional reaction structure analysis model based on CHEMKIN [27]. The plug flow reactor can set the inner diameter, length, pyrolysis temperature, injected gas, and flow velocity, and information on the products produced after the thermal decomposition of the selected gas can be obtained. The calculation conditions in this study adopted the same diameter, residence time, and reaction temperature as in the experimental conditions, and the tube length was set to 200 mm that corresponded to the maximum saturation temperature range, as shown in Figure 3. We calculated the N₂O chemical reaction using GRI 3.0 mechanism that is widely used for modeling NO generation and reburn chemistry [28]. As presented in Table 3, the rate of each reaction was evaluated using a reaction path analyzer.

Table 3:

GRI 3.0 mechanism

3. Results and Discussion

3.1 Numerical Analysis Results

3.3.1 Overall trend of N₂O Decomposition by High-Temperature Pyrolysis

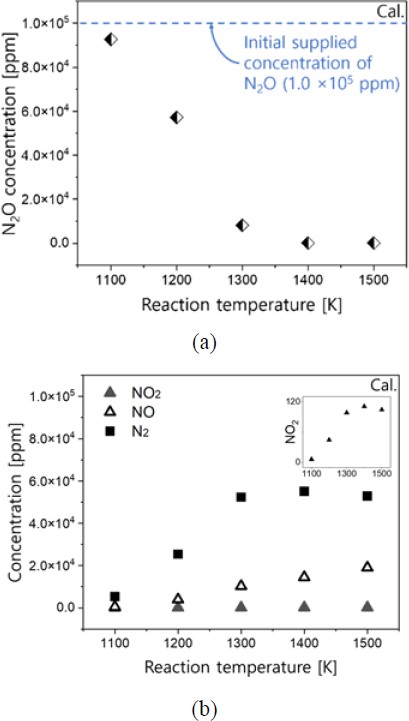

Figure 4 shows the variations in the concentrations of N₂O (Figure 4(a)), NO₂, NO, and N₂ (Figure 4(b)) according to various reaction temperatures at t_reac = 1 s. The initial supply of N₂O is 100,000 ppm. The concentration of N₂ is considered only as the concentration, excluding the initial supply from the measured amount. The N₂O concentration is linearly reduced at T_reac = 1100−1300 K, and 20.6 ppm and 0.19 ppm are derived at T_reac = 1400 K and 1500 K, respectively, indicating that almost all N₂O is decomposed. In the case of the NO₂ concentration, as illustrated in Figure 4(b), as the reaction temperature increases, the NO₂ concentration increases linearly from 1100 K to 1300 K, and approximately 100 ppm is generated from 1300 K and the amount of production is saturated. The N₂ concentration also is generated 6.0 × 10⁴ ppm at T_reac = 1300 K, and the amount of production is saturated. However, in the case of NO concentration, the amount of production increases linearly as the reaction temperature increases, and 1.9 × 10⁴ ppm, the maximum concentration value, is generated at T_reac = 1500 K.

Figure 4:

Concentrations of gas species according to various reaction temperatures at treac = 1 s; (a) N2O, (b) NO2, NO, and N2

Generally, according to the Zel’dovich mechanism [28], N₂O decomposes into N and O at high temperatures, and the decomposed O and N₂O react to produce N₂ and O₂. At this time, NO and NO₂ are partially generated according to Equations (10) and (11), and the general reaction mechanism is as follows:

$\[ {\mathrm{N}}_2\mathrm{O}\to {\mathrm{N}}_2+\mathrm{O} \]$

(8)

$\[ {\mathrm{N}}_2\mathrm{O}+\mathrm{O}\to {\mathrm{N}}_2+{\mathrm{O}}_2 \]$

(9)

$\[ {\mathrm{N}}_2\mathrm{O}+\mathrm{O}\to 2\mathrm{N}\mathrm{O} \]$

(10)

$\[ \mathrm{N}\mathrm{O}+\mathrm{O}\to {\mathrm{N}\mathrm{O}}_2 \]$

(11)

In addition, most of the N₂O injected at a reaction temperature of 1300 K is decomposed, and the formation rates of NO₂ and N₂ are saturated. However, the rate of NO production increases with increasing reaction temperature. To understand this more clearly, Section 3.1.2 provides the correlation between N₂O reduction and NOx and N₂ production according to reaction temperatures and residence times.

3.3.2 Correlation between N₂O Reduction and NOx and N₂ Production according to Reaction Temperatures and Residence times

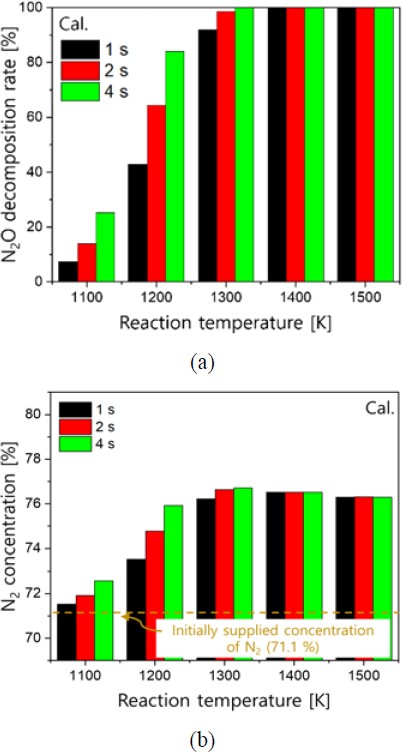

Figure 5 shows the N₂O decomposition rates and N₂ concentrations at various reaction temperatures and residence times. The N₂O decomposition rate is calculated using Equation (12).

Figure 5:

(a) N2O decomposition rates and (b) N2 concentrations with various reaction temperatures and residence times

$\[ {\mathrm{N}}_2\mathrm{O}\mathrm{ }\mathrm{r}\mathrm{e}\mathrm{d}\mathrm{u}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{ }\left(\mathrm{\%}\right)=\frac{\mathrm{R}\mathrm{e}\mathrm{d}\mathrm{u}\mathrm{c}\mathrm{e}\mathrm{d}\mathrm{ }{\mathrm{N}}_2\mathrm{O}\mathrm{ }\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{c}\mathrm{e}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}{\mathrm{ }\mathrm{I}\mathrm{n}\mathrm{l}\mathrm{e}\mathrm{t}\mathrm{ }{\mathrm{N}}_2\mathrm{O}\mathrm{ }\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{c}\mathrm{e}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}} \]$

(12)

As shown in Figure 5(a), the N₂O reduction rate increases for T_reac = 1100–1300 K as the residence time increases at the same reaction temperature. However, the N₂O reduction rate is not linearly proportional to the residence time. In addition, the N₂O reduction rate tends to reach 100 % for all the residence times adopted at T_reac = 1400 K. In the case of N₂ concentration, as shown in Figure 5(b), considering that the initial supply concentration is 71.1 %, the trend in the N₂O reduction rate is similar. Therefore, the saturation temperature is close to 1400 K because the same N₂ concentration is considered irrespective of the residence time at T_reac = 1400 K. Particularly, at t_reac = 2 and 4 s, the N₂ concentration decreases slightly after T_reac = 1300 K, and the tendency to decrease after T_reac = 1400 K is observed at t_reac = 1 s.

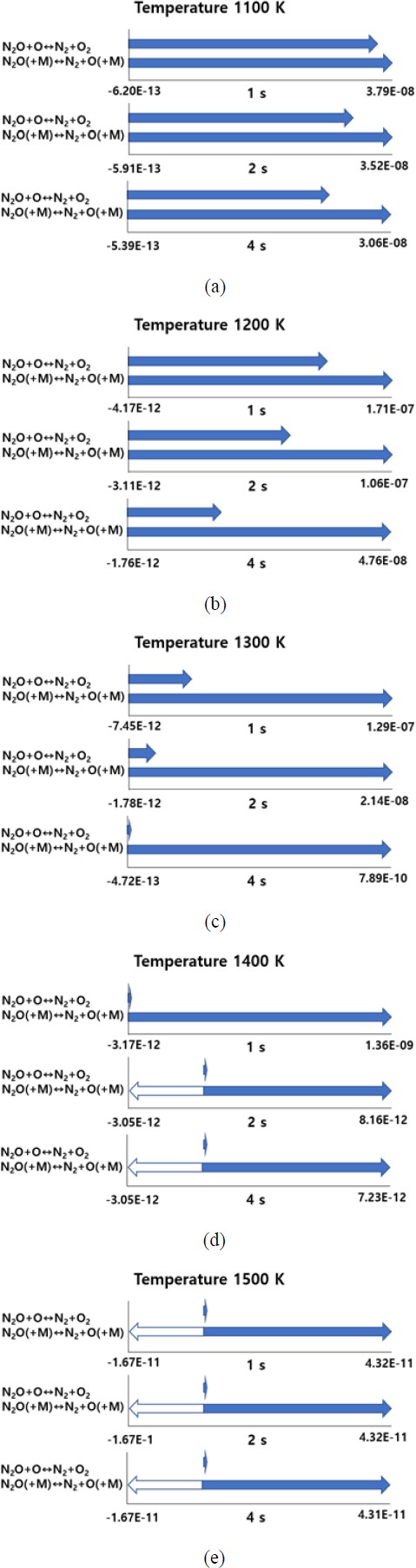

To clarify these aspects, Figure 6 illustrates the reaction path analyzer for the rate of progress from N₂O to N₂ under the same conditions as in Figure 5. In the range of T_reac = 1100–1300 K, the reaction progress rate tends to decrease as the residence time increases. The chemical reaction rate is affected by the total amount of reactants injected per unit time, and the residence time is relatively longer than the reaction time. Therefore, the final N₂O concentration decreases; however, the volume of N₂O decomposed per unit time decreases. Finally, the reduction rate of N₂O is not linearly proportional to the residence time at the same reaction temperature (T_reac = 1100–1300 K), as shown in Figure 5(a), because of the decrease in the most dominant reaction progression from N₂O to N₂ (Equations (8) and (9)) during N₂O decomposition.

Figure 6:

Rate of progress from N2O to N2

Meanwhile, after T_reac = 1400 K and t_reac = 2 s, the reverse reaction increases noticeably, as shown in Figure 6(d). Notably, the reaction rate up to 1400 K and 1 s increases with increasing reaction temperature and residence time, whereas the forward reaction rate decreases significantly. This tendency is considered to have reached the chemical equilibrium state, considering that both the forward and reverse reaction rates are obtained at a constant value irrespective of the residence time at T_reac = 1500 K. Therefore, it is understood that the rapid increase in the reverse reaction from N₂O to N₂ causes the slight decrease in the concentration of N₂ formation in the range of T_reac = 1400–1500 K, as shown in in Figure 5(b). Furthermore, because the decomposition reaction from N₂O to N₂ reached a chemical equilibrium state at T_reac = 1500 K, the N₂O decomposition rate is expected to saturate after T_reac = 1500 K.

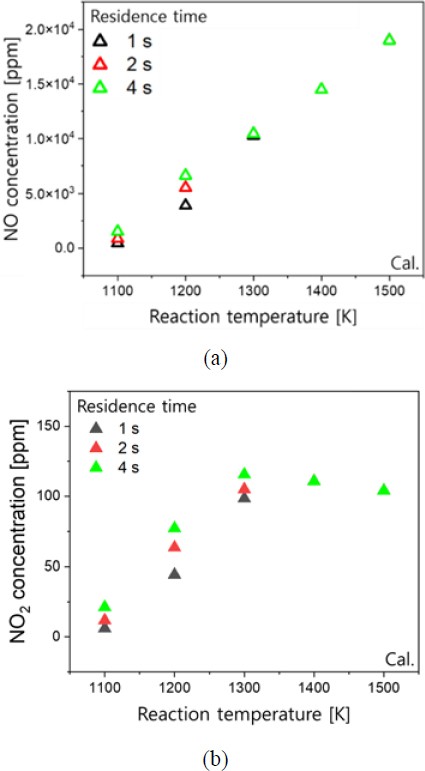

Figure 7 shows the formation concentrations of NO and NO₂ according to the reaction temperature and residence time. The formation concentrations of NO and NO₂ are not highly dependent on the residence time, and are independent of the residence time adopted in this study, after T_reac = 1400 K. However, as shown in Figure 4(b), the formation concentration of NO increased linearly with the reaction temperature; this differed from the concentration trends of NO₂ and N₂. This is not easily understood, considering that, as shown in Figure 4(a), the concentration of N₂O is typically decomposed and saturated at T_reac = 1300 K. In other words, chemical species other than N₂O exist that contribute to the formation of NO at T_reac = 1300 K or higher.

Figure 7:

NO and NO2 concentrations with various reaction temperatures and residence times

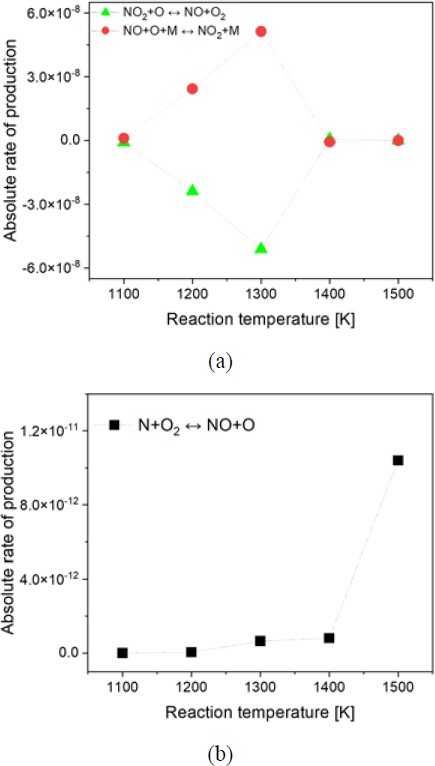

To investigate this aspect, Figure 8 illustrates the absolute production rate (forward reaction rate-reverse reaction rate) with conversions of (a) NO₂−NO and (b) N−NO according to various reaction temperatures at t_reac = 1 s. In the case of NO₂−NO conversion, the NO₂+O → NO+O₂ and NO+O+M → NO₂+M reactions are dominated. However, as shown in Figure 8(a), oxidized reaction from NO to NO₂ are superior in both reactions.

Figure 8:

Absolute rate of production of conversion between (a) NO2–NO and (b) N–NO

Therefore, the conversion of NO₂−NO does not contribute to the production of NO. In the case of N−NO conversion, the N+O₂ → NO+O reaction is dominated. However, as shown in Figure 8(b), the absolute production rate has a positive value at all reaction temperatures, particularly, the process of oxidation from N to NO at T_reac = 1500 K increases sharply. Thus, N contributes to NO production via high-temperature reactions. This analogy is reasonable considering the results shown in Figure 5(b).

3.2 Experimental Verification

In this section, the calculation results derived thus far are compared with the experimental results using a high-temperature reactor. Figure 9 shows the results of comparing NO and NO₂ concentrations according to various reaction temperatures and residence times with the experimental and calculated values. The calculated values are derived from Figures 7(a) and (b), and the dependence on the residence time is extremely small; therefore, they are displayed as single dotted lines. In the case of NO concentration, both the experimental and numerical values show little dependence on the residence time. In addition, the tendency of linear increase is the same depending on the reaction temperature. However, the calculated value of the formation concentration is approximately 19,000 ppm, whereas the experimental value is approximately 7,000 ppm; the difference is approximately three times. For the NO₂ concentration, the calculated value is as shown in Figure 7(b), and the dependence on the residence time is minimal and saturated at T_reac = 1400 K. However, the experimental value shows that the concentration of NO₂ formation increases rapidly as the residence time is shortened.

Figure 9:

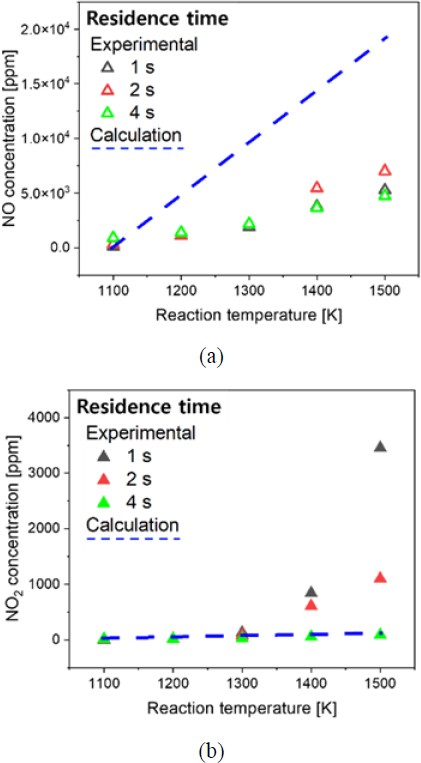

Concentrations of experimental and calculated results obtained for (a) NO and (b) NO2

Furthermore, the concentration of NO₂ formation increases exponentially as the reaction temperature increases. In particular, the NO₂ concentrations of the experimental and calculated values match well in the case of t_reac = 4 s; however, a large difference is observed in the cases of t_reac = 1 and 2 s. Particularly, at t_reac = 1 s and T_reac = 1500 K, the calculated value of the concentration of NO₂ formation is approximately 100 ppm, whereas the maximum value of approximately 3400 ppm is measured in the experiment.

The experimental results are as follows: The dependence of the NO formation concentration on the residence time is determined to be derived at a constant value because the conversion from N₂O to NO is rapid within the selected residence time and all reach saturation under the present experimental conditions. This is the same with the calculated value. Therefore, to evaluate the dependence on the residence time, the experiment must be conducted within a shorter time than the present experimental conditions. In addition, the difference in the maximum NO concentration occurs because the gas discharged after the reaction was cooled through a heat exchanger for concentration analysis and diluted with a dilution gas in the dilution tube in the experiment; however, the reactor was set by insulation conditions in the numerical analysis. Therefore, a reverse reaction is generated, in which NO in a high-temperature state is converted to NO₂ by cooling.

As mentioned in Section 3.3.2, the reactions related to NO₂−NO conversion include NO₂+O → NO+O₂ and NO+O+M → NO₂+M, and temperature dependent constant “b” for these reactions are 0 and -1.41, respectively. The temperature dependent constant of -1.41 for reaction NO+O+M → NO₂+M indicates that as the reaction temperature increases, the rate constant increase for this reaction decreases. In the experiments, after passing through the central part of the reactor where the coils are installed, the temperature decreases. As a result, the NO+O+M → NO₂+M reaction increases again. With an increase in the reaction temperature, the production of NO increases, leading to an increase in the amount of NO that can be converted to NO₂.

Consequently, the experimental results show a tendency of increasing NO₂ emissions with increasing reaction temperature. However, the numerical analysis focuses only on the reactions in the middle part of the reactor where the coils are installed. Thus, it could not accurately predict the production of NO₂.

4. Conclusion

This study investigated the interaction between N₂O reduction and NO generation mechanisms in a high-temperature pyrolysis treatment using a one-dimensional reaction structure analysis model. Comparative verification was performed with the experimental values obtained in a high-temperature reactor. The reaction temperature and residence time were selected as evaluation factors. A GRI 3.0 mechanism was adopted to characterize the correlation between N₂O reduction and NOx and N₂ formation. The calculation and experimental results are summarized as follows:

• 1. According to the calculation, as the reaction temperature increased, the decomposition rate of N₂O increased, and almost all of the N₂O injected at a reaction temperature of 1400 K decomposed to reach a chemical equilibrium state.
• 2. As N₂O decomposed, N₂, NO, and NO₂ were generated, and the formation rates of N₂ and NO₂ were saturated at a reaction temperature of 1400 K, similar to the tendency of the N₂O decomposition rate. However, in the case of the formation rate of NO, unlike the formation tendency of N₂ and NO₂, the formation rate continued to increase as the reaction temperature increased. Analyzing the progress rate using a reaction path analyzer to investigate these causes confirmed that the process of oxidation from N to NO increased rapidly as the reaction temperature increased, contributing to NO formation.
• 3. Notably, the formation concentrations of N₂, NO, and NO₂ were not largely dependent on the residence time, and particularly from the reaction temperature of 1400 K, they were independent of the residence time adopted in this study. This was because the reaction rate from N₂O to N₂, which is the most dominant N₂O decomposition reaction, was constantly obtained from a reaction temperature of 1400 K. Therefore, the chemical equilibrium was reached.
• 4. As a result of conducting a comparative analysis of the high-temperature reactor experimental results and the calculation results indicated that, in both cases, the NO formation concentration was obtained as a constant value depending on the residence time. In addition, the maximum NO formation concentration value obtained in the experiment was clearly different when compared to the calculated value. In the case of calculation, a reverse reaction occurred in which NO₂ was converted to NO owing to the process of cooling in the heat exchanger for concentration analysis. Similar results were obtained in the comparative analysis of the NO₂ concentration.

Acknowledgments

This work was supported by the Technology Innovation Program (20015606, Development of the POU Scrubber with Smart Control for Simultaneous Reduction of Greenhouse Gases and Fine Dusts emitted from the Semiconductor and Display Manufacturing Process) funded By the Ministry of Trade, Industry & Energy (MOTIE, Republic of Korea).
